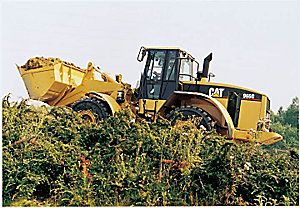

966G Wheel Loader
Medium Wheel Loaders
-
Specification Summary
- Operating Weight23500 kg
- Engine Model3306 DITA
- Flywheel Power175 kW
- Max. Flywheel Power189 kW
- Displacement10.46 L
966G Wheel Loader delivers excellent breakout force, fast load and cycle times, precise maneuvering and smoother shifts for optimal performance and comfort. Proven components, field-tested durability, combined with easy maintenance, ensures reliability over the life of the machine.
Engine
| Engine Model | 3306 DITA |
| Flywheel Power | 175 kW |
| Max. Flywheel Power | 189 kW |
| Displacement | 10.46 L |
Weights
| Operating Weight | 23500 kg |
Buckets
| Maximum Bucket Capacity | 5.5 m3 |
Hydraulic System
| Hydraulic Cycle Time - Raise | 6.6 Seconds |
| Hydraulic Cycle Time - Dump | 1.3 Seconds |
| Hydraulic Cycle Time - Lower, Empty, Float Down | 1.8 Seconds |
| Hydraulic Cycle Time - Total | 9.7 Seconds |
Service Refill Capacities
| Fuel Tank - Standard | 410 L |
| Cooling System | 80 L |
| Crankcase | 28 L |
| Transmission | 50 L |
| Differentials and Final Drives - Front | 64 L |
| Differentials and Final Drives - Rear | 64 L |
| Hydraulic System (Including Tank) | 207 L |
| Hydraulic Tank | 140 L |
Transmission
| Forward 1 | 7.2 km/h |
| Forward 2 | 12.6 km/h |
| Forward 3 | 21.7 km/h |
| Forward 4 | 37.3 km/h |
| Reverse 1 | 8.2 km/h |
| Reverse 2 | 14.3 km/h |
| Reverse 3 | 24.6 km/h |
| Reverse 4 | 42.3 km/h |
Axles
| Front | Fixed |
| Rear | Trunnion |
| Maximum Single-Wheel Rise and Fall | 502 mm |
Engine
aPowerful Performance
Four-stroke Cycle Design
Precise Engineering
Torque Rise
Deep Skirt Engine Block Design
Engine Oil
Cooling System
Factory Remanufactured Parts
Electronic Transmission
aElectronic Power Shift Transmission
Transmission Oil
Electronic Clutch Pressure Control
Transmission Neutralizer
Proportional Electro-hydraulic Valves
Pressure Port
Thermoplastic Connectors
Easy Service
Variable Shift Control
Integrated Braking System
Axles
Heavy-duty Axles and Brakes
Duo-Cone Seals
External Port
Four-piece Axle
Axle Oil Temperature Sensor
Axle Oil Ecology Drains
Frame
Full Box-section Rear Frame
Four-plate Loader Tower
Spread-hitch Design
Upper and Lower Hitch Pins
Frame Structure
Severe Applications
Hydraulics
Low-effort Hydraulic Controls
Smooth, Efficient Steering
Hydraulic Implement Pumps
Pressure Taps
XT Hose and Couplings
Automatic Ride Control
Hydraulic Oil
Operator Controls
Two Operator Control Configurations
Electronic Autoshift Control
Dual-pedal braking
Transmission neutralizer lockout
Operator Station with Command Control Steering
Excellent Viewing in All Directions
Command Control Steering
Finger Tip Controls
Automatic Lift/Lower Kickouts
Monitoring System
Left, Rear-hinged Door
Dual Brake Pedals
Generous Storage Space
Caterpillar Contour Series Seat
Improved Ventilation
Electronic Autoshift Control
Ride Control Switch
Transmission Neutralizer Lockout
Radio Ready
Payload Control System
Exterior rear-view Mirror Package
Variable Shift Control
Other options
Operator Station with Conventional Steering
Conventional Steering Wheel
Hydraulic Implement Controls
Quick Gear Kickdown Button
Adjustable Wrist Rest
Seat options
Lockable Compartment
Other Options
Environmental Machine
Low Sound Version
Environmental Fluids
Low Exhaust Emissions
Fewer Leaks and Spills
Ecology Drains
Rebuildable Components
Buckets and Ground Engaging Tools
Standard Universal Buckets
Universal Buckets with Rounded Side Plates
Universal Buckets with Back Grading Edge
General Excavation Buckets
Rock Buckets
Heavy Duty Rock Buckets
Corner Guard System
Tip Selection and GET System Selection Guide
Work Tools and Quick Couplers
Quick Couplers
Coal Buckets
Woodchip Buckets
Multi-purpose Buckets
High-dump Buckets
Side-dump Buckets
Forks
Log Fork with Top Clamp
Material Handling Arm
Fertilizer Buckets
Brick and Clay Buckets
Screening Buckets
Plows
Serviceability
Maintenance
Paint Process
Electrical Systems
Sloped Hood
Automatic Greasing System
Engine, Transmission and Hydraulic Oils
Factory remanufactured parts
Preventive Maintenance
