The new H-Series Compact Wheel Loaders still maintain Caterpillar's strengths whilst boasting a whole new range of features and benefits. In short, a machine that can be trusted to perform. This low cab machine provides access to more areas on site. It is designed with simplicity and cost effectiveness in mind. This model offers great operating capacity and hydraulic flows to work in a wide range of applications.
Engine
| Net Power |
51 kW |
| Maximum Gross Power |
53 kW |
| ISO 9249 Rating |
51 kW |
| EEC 80/1269 Rating |
51 kW |
| Model |
3044C DIT |
Weights
Operating Specifications
| Rated Bucket Capacity |
0.9 m3 |
| Rated operating load @ full turn, forks |
2150 kg |
| Breakout Force |
50 kN |
| Rated Operating Load @ Full Turn, Bucket |
1565 kg |
| Straight Tipping Load, Bucket |
4055 kg |
| Full Turn Static Tipping Load, Bucket |
3130 kg |
| Rackback, Transport Position |
52 Degrees |
Engine Dimensions
| Bore |
94 mm |
| Stroke |
120 mm |
| Displacement |
3.33 L |
Power Train, Axles and Brakes
| Max travel speeds with 12.5-18 tires, forward and reverse, low |
20 km/h |
| Max travel speeds, forward and reverse, high |
35 km/h |
Service Refill Capacities
| Cooling System |
24 L |
| Fuel Tank |
52 L |
| Hydraulic System |
84 L |
| Engine Oil |
10 L |
Ease of Operation
Simple controls and ergonomically designed low effort joysticks reduce fatigue and increase comfort. With a choice of three cab options the operator is guaranteed all day comfort to enhance jobsite productivity.
Z-Bar Linkage

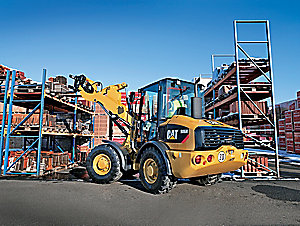

High performance Z-Bar loader linkage designed for strength, visibility and versatile attachment usage. Skid steer or horizontal pin quick coupler allow for rapid work tool changes.
Caterpillar Work Tools
Standard and high flow hydraulics, with a choice of couplers allows the Caterpillar Compact Wheel Loaders to use a variety of work tools, even those that are commonly associated with Caterpillar Skid Steer Loaders.
Power Train
The hydrostatic driveline developed with advanced computer simulations, offers two speeds as standard. The optional speeder transmission provides a maximum speed of 35 km/h. Heavy duty axles are fitted as standard. 100% diff lock and ride control options are available.
Reliability and Durability
The same standards and quality components used in large Caterpillar Wheel Loaders are applied to the H-Series Compact Wheel Loaders. These machines are all you expect from Cat... but in a smaller package.
Serviceability

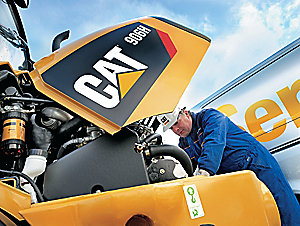

The design of the H-Series Compact Wheel Loader allows quick and easy servicing. Tilt-up engine hood and side service doors give exceptional access to the major components. S•O•SSM. oil ports and pressure test points enable easy preventative maintenance.
Customer Support
Caterpillar dealers offer unmatched customer support, excellent warranty programs and fast parts availability, resulting in maximum uptime and minimum repair costs.
