TH417 Telehandler

Operating Specifications

Rated Load Capacity	4000 kg
Maximum Lift Height	17000 mm
Load at Max Height - Stabilizers Down	3000 kg
Load at Max Height - Stabilizers Up	1000 kg
Maximum Forward Reach	12700 mm
Load at Max Reach - Stabilizers Down	500 kg
Top Travel Speed	32 km/h
Load at Max Height	3000 kg
Load at Max Reach	500 kg
Load at Maximum Height	3000 kg
Load at Maximum Reach	500 kg

Engine

Engine Model	Cat C4.4 DITAAC
Gross Power	74.5 kW
Maximum Torque	410 N·m
Bore	105 mm
Stroke	127 mm
Displacement	4.4 L

Weights

Operating Weight

11802 kg

Dimensions

Height	2630 mm
Width	2449 mm
Wheelbase	3200 mm
Length to Fork Face	6670 mm
Ground Clearance	401 mm
Turning Radius Over Tires	3920 mm
Turning Radius Over Forks	5650 mm
Length to Front of Tire	5135 mm
Rear Overhang	1275 mm

Tires

Standard	14.00-24 16PR TG02
Optional Construction	14.00-24 16PR SGG-2A

Hydraulic System

Maximum System Pressure	250 bar
Maximum Pump Flow	150 L/min
Pump Type	Variable displacement load sensing axial piston pump

Service Refill Capacities

Fuel Tank	150 L
Hydraulic Tank	90 L

Transmission Speeds

Forward - 1	7 km/h
Forward - 2	12 km/h
Forward - 3	21 km/h
Forward - 4	32 km/h
Reverse - 1	7 km/h
Reverse - 2	12 km/h
Reverse - 3	21 km/h

Boom Performance

Boom Up	16 Seconds
Boom Down	13 Seconds
Tele In	20 Seconds
Tele Out	25 Seconds
Crowd Forward (dump)	3.4 Seconds
Crowd Backward	3 Seconds
Combined - Up and Out	30 Seconds
Combined - Down and In	23 Seconds
Boom Breakout Force	60 kN
Bucket Breakout Force	65 kN
Drawbar Pull (Basic)	88 kN

Brakes

Parking Brake

mechanical on front axle

Operator Station

The operator station provides comfort and protection with improved job site visibility and convenient, easier to use controls.

Intuitive Controls

Our easier to use control layout and single joystick will keep you fresh and comfortable all day.

Easier Access

Cab entry and exit is both easier and more convenient due to the well placed handholds and step.

Operator Protection

The machine provides full operator security with OROPS and EROPS protection.

Longitudinal Stability Indicator

New dedicated longitudinal stability indicator (LSI) in the operator's line of sight.

Anti-theft device

The TH417 features a built-in start code device to reduce the risk of theft and unauthorized use.

Cabin

New spacious cabin provides a comfortable environment for its operator.

Ease of Operation

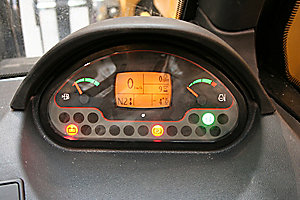

Ease of operation was extremely important in the design of the TH417 Telehandler. The new interative LCD display and the single lever joystick are designed to maximize operator efficiency.

Joystick Control

The joystick allows three simultaneous boom functions enabling application customization.

Flow Sharing

Three simultaneous hydraulic functions are achieved using a full flow sharing hydraulic valve. A load sensing variable displacement pump allows full hydraulic power even at low revs.

Performance

The TH417 delivers high performance to meet your specific job site needs.

Lift Height

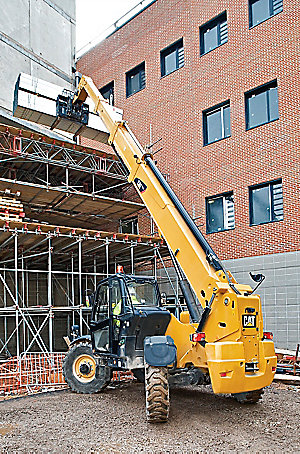

The TH417 can pick and place bricks and materials to a maximum height of 17.3 metres with stabilizers in the down position.

Steering Modes

The TH417 Telehandler offers three steering modes to allow you to more easily position the machine.

Stabilizers

Standard on the TH417, stabilizers provide increased stability and load carrying capacity.

Chassis

The TH417 Telehandler features a one-piece chassis with side mounted cabin and side mounted engine. Its widespread wheelbase gives outstanding stability in both traveling and lifting operations.

Power Train

The Cat power train delivers ultimate performance in the toughest of working conditions.

Transmission

The TH417 has a 4-speed powersynchro transmission, which uses a torque converter to transfer engine power to the transmission.

Engine

A Cat C4.4 DITAAC mechanical control, turbo charged, after cooled engine is standard on the TH417 Telehandler. This engine is certified to meet Stage IIIA (Tier 3) emission regulations.

Cooling Pack

The cooling pack has been relocated to the rear of the engine bay and is designed to work in challenging environments.

Axles

Durable planetary axles are featured providing 50 degree steering angle for outstanding maneuverability.

Versatility

The TH417 is as versatile as your toughest job demands.

Quick Coupler

A Caterpillar IT interface is standard on the TH417 Telehandler. For optimum versatility, an optional hydraulic quick coupler is available, allowing the operator to change non-hydraulic work tools without leaving the cab.

Hydraulic System

Machine is equipped with a selectable continuous auxiliary hydraulic flow allowing the use of hydraulically operated work tools.

Work Tools

A wide range of work tools are available to meet most job site applications. Caterpillar Telehandler Work Tools extend the versatility of the machine. Built for performance and durability, these work tools deliver high productivity, long life and excellent value. Contact your Cat dealer for available work tool options.

Machine Configurations

Various machine configurations are available to match the different applications and operating environments.

Tyres

A wide range of tire options enables the machine to be configured to achieve optimum job site performance.

Serviceability and Customer Support

Extended service intervals and a reduction in routine daily maintenance enables you to spend your time on the job.

Access

All Cat Telehandler service points, including the combined transmission/hydraulic oil filter, are accessible and major components are at ground level due to the overall machine design.

Operation

Improving operating techniques can boost your profits. Your Cat Dealer has literature and other tools to help increase your productivity.

Product Support

You will find high availability of parts at our Dealer parts counter. Cat Dealers utilize a worldwide computer network to find in-stock parts to minimize machine downtime.

TYRES and RIMS

 Mitas 14.00-24 TG02

Mitas 14.00-24 TG02

POWER TRAIN

 Cat C4.4 DITAAC engine- 74.5 kW gross power- 410 Nm / 1400 rpm maximum torque- Turbo charged after cooled- 4.4 litre displacement- 105 mm bore- 127 mm stroke- Stage III (Tier 3) compliant- 3 section cooling pack: engine coolant, transmission oil, air to ai

 Transmission, Cat PowerSynchro - 4 forward/3 reverse- Single lever, column mounted direction change- Transmission disconnect via joystick or brake pedal

 Axles, heavy duty durable- permanent 4-wheel drive- limited slip differential in front axle- power-assisted, hydraulic braking system- enclosed oil disc brakes on front axle- parking brake, dry disc with transmission disconnect- automatic steering self ali

 Hydraulics - load sensing, variable flow piston pump - 150 L/min maximum pump flow - 250 bar maximum system pressure - Electronic joystick, simultaneous and proportional controls to all three boom functions - Continuous flow hydraulics - Closed centre spoo

ELECTRICAL

 - 12-volt electrical system- 100 ampere alternator- 900 CCA maintenance-free battery with disconnect- Anti-restart key switch- Audible back-up alarm- Electronic control module- 12 volt internal and external power sockets- Electronic Technician diagnostic c

CABIN, STANDARD

 EROPS certified cabin - Single lever electro-hydraulic control joystick - Interactive LCD monitor - Longitudinal stability indicator - Entry door with window- 2-way adjustable mechanical suspension seat - Heater - Seat belt & document pouch - Left &

OTHER EQUIPMENT

 Quick coupler - Manual IT interface

 Joystick- bucket configuration- fork configuration

 Fenders

 Frame level

 Remote grease system

Quick coupler - Manual IT interface

Joystick- bucket configuration- fork configuration

Fenders

Frame level

Remote grease system

TELESCOPIC BOOM

 Synchronized 3-section boom with non-metallic wear pads

 Compensation cylinder

 Boom work lights

 Boom prop

Coupler, IT hydraulic

Lights, flood lights cabin mounted

 - Two front and two rear lights - mounted on cabin roof - included in premium cabin

Engine block heater, 240 V

Screen guard, front

Screen guard, front + roof screen guard

Hitch, retrieval

 Not suitable for towing on road

Spare Tyres and rims

 *Mitas 14.00-24 TG02*Goodyear 14.00-24 SGG

*Mitas 14.00-24 TG02*Goodyear 14.00-24 SGG

Work Tools

 Carriages

 Forks (pair)

Carriages

Forks (pair)

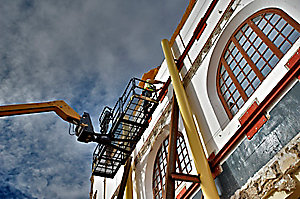

Access Work Platform

 Access platform pre-arrangement- includes all necessary items to mount the fixed or extendible platform - included motor, pump, switches in cabin

 Access platform fixed version- 1.8 metre wide- 450 kg load capacity- 180 degrees angle rotation (90 degrees per side)- fully operable from the platform- standard electric emergency lowering system that allows the operator to fully control the platform even

 Access platform extendible version- from 2.4 metre wide to maximum 4.5 metre wide- platform can be extended in the air- 350 kg load capacity- 180 degrees angle rotation (90 degrees per side)- fully operable from the platform- standard electric emergency lo

Rotating Beacon

License plate light

Fork stowage brackets

Tool box

 - For stowing tools and grease gun - not possible in combination with dual battery with disconnect

- For stowing tools and grease gun - not possible in combination with dual battery with disconnect

Cat padlocks & Keys, 3x (fuel tank, oil tank and engine hood)

Work tools

 Carriage, standard -- 1200 mm wide with load brackets and 60 mm floating shafts

 Forks, pallet -- 60 x 100 x 1200 (pair)

 Access platforms -- * Fixed, 1.8 metre wide, 450 kg load capacity, 180 degree rotation (90 degree per side) and fully operable from platform, standard electric emergency lowering system* Extendible, from 2.4 metre wide to max 4.5 metre wide, 350 kg load ca

Wiper blade roof
