The TH514 Telehandler is designed for your toughest jobsite applications. With load capacity of 4999 kg and lift height of 13.7 metres, this telehandler will do the work of many.
Operating Specifications
Rated Load Capacity |
4999 kg |
Maximum Lift Height |
13700 mm |
Load at Max Height - Stabilizers Down |
3500 kg |
Load at Max Height - Stabilizers Up |
1500 kg |
Maximum Forward Reach |
9225 mm |
Load at Max Reach - Stabilizers Down |
1600 kg |
Load at Max Reach - Stabilizers Up |
600 kg |
Top Travel Speed |
32 km/h |
Load at Max Height |
3500 kg |
Load at Max Reach |
1600 kg |
Load at Maximum Height |
3500 kg |
Load at Maximum Reach |
1600 kg |
Engine
Engine Model |
Cat C4.4 DITAAC |
Gross Power |
74.5 kW |
Maximum Torque |
410 N·m |
Bore |
105 mm |
Stroke |
127 mm |
Displacement |
4.4 L |
Weights
Operating Weight |
10760 kg |
Dimensions
Height |
2630 mm |
Width |
2440 mm |
Wheelbase |
3200 mm |
Length to Fork Face |
6520 mm |
Ground Clearance |
401 mm |
Turning Radius Over Tires |
3920 mm |
Turning Radius Over Forks |
5570 mm |
Length to Front of Tire |
5091 mm |
Rear Overhang |
1225 mm |
Tires
Standard |
14.00-24 16PR TG-02 |
Hydraulic System
Maximum System Pressure |
250 bar |
Pump Type |
Variable displacement load sensing axial piston pump |
Primary System Max Pressure |
250 bar |
Primary System Max Pump Flow |
150 L/min |
Auxiliary Hydraulic Supply - Intermittent |
80 L/min |
Auxiliary Hydraulic Supply - Continuous |
60 L/min |
Service Refill Capacities
Fuel Tank |
150 L |
Hydraulic Tank |
90 L |
Transmission Speeds
Forward - 1 |
7 km/h |
Forward - 2 |
12 km/h |
Forward - 3 |
21 km/h |
Forward - 4 |
32 km/h |
Reverse - 1 |
7 km/h |
Reverse - 2 |
12 km/h |
Reverse - 3 |
21 km/h |
Boom Performance
Boom Up |
17 Seconds |
Boom Down |
10 Seconds |
Tele In |
20 Seconds |
Tele Out |
17.5 Seconds |
Crowd Forward (dump) |
4 Seconds |
Crowd Backward |
3 Seconds |
Combined - Up and Out |
28 Seconds |
Combined - Down and In |
19 Seconds |
Boom Breakout Force |
63 kN |
Bucket Breakout Force |
95 kN |
Drawbar Pull (Basic) |
88 kN |
Operator Station

The operator station provides comfort and protection with improved job site visibility and convenient, easier to use controls.
Intuitive Controls
Our easier to use control layout and single joystick will keep you fresh and comfortable all day.
Easier Access
Cab entry and exit is both easier and more convenient due to the well placed handholds and step.
Operator Protection
The machine provides full operator security with OROPS and EROPS protection.
Ease of Operation

Ease of operation was extremely important in the design of the TH514 Telehandler. The single lever joystick is designed to maximize operator efficiency.
Joystick Control
The joystick allows three simultaneous boom functions enabling application customization.
Flow Sharing
Three simultaneous hydraulic functions are achieved using a full flow sharing hydraulic valve. A load sensing variable displacement pump allows full hydraulic power even at low revs.
Performance

The TH514 delivers high performance to meet your specific job site needs.
Lift Height

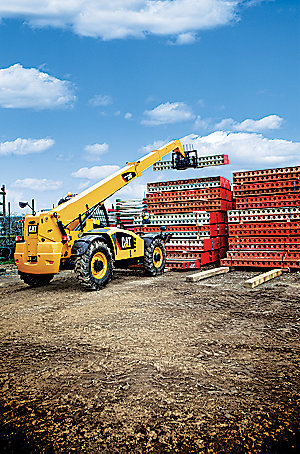

The TH514 can pick and place bricks and materials to a maximum height of 13.7 metres.
Steering Modes
The TH514 Telehandler offers three steering modes to allow you to more easily position the machine.
Power Train

Caterpillar componentry, including a Cat C4.4 DITAAC mechanical control engine, gives you the quality power train that you expect from a Cat machine.
Transmission
The TH514 has a 4-speed powersynchro transmission, which uses a torque converter to transfer engine power to the transmission.
Versatility

The TH514 is as versatile as your toughest job demands.
Quick Coupler
A manual IT interface is standard on the TH514 Telehandler. For optimum versatility, an optional hydraulic quick coupler is available, allowing the operator to change non-hydraulic work tools without leaving the cab.
Hydraulic System
Machine is equipped with a selectable continuous auxiliary hydraulic flow allowing the use of hydraulically operated work tools.
Work Tools
A wide range of work tools are available to meet most job site applications. Caterpillar Telehandler Work Tools extend the versatility of the machine. Built for performance and durability, these work tools deliver high productivity, long life and excellent value. Contact your Cat dealer for available work tool options.
Machine Configurations
Various machine configurations are available to match the different applications and operating environments.
Tyres
A range of tyre options enables the machine to be configured to achieve optimum job site performance.
Serviceability and Customer Support

Extended service intervals and a reduction in routine daily maintenance enables you to spend your time on the job.
Access
All Cat Telehandler service points, including the combined transmission/hydraulic oil filter, are accessible and major components are at ground level due to the overall machine design.
Operation
Improving operating techniques can boost your profits. Your Cat Dealer has literature and other tools to help increase your productivity.
Product Support
You will find high availability of parts at our Dealer parts counter. Cat Dealers utilize a worldwide computer network to find in-stock parts to minimize machine downtime.
Engine, Cat C4.4 DITAAC, Tier 3 compliant
- Gross power 74.5 kW/101 hp- Maximum torque 410 Nm / 1400 rpm- Displacement 414 litre- Bore 105 mm / Stroke 127 mm
Transmission, Cat PowerSynchro
- 4 forward / 3 reverse- Single lever, column mounted direction change- Transmission disconnect via joystick or brake pedal
- 4 forward / 3 reverse- Single lever, column mounted direction change- Transmission disconnect via joystick or brake pedal
Axles, heavy duty durable
Permanent 4-wheel drive
Front axle, limited slip differential
3 Steering modes -- 2-wheel, 4-wheel, and crab
Hydraulics, continuous flow
Boom, telescopic
-Sychronized 3-section boom with non-metallic wear pads- Compensation cylinder- Boom work lights- Boom prop
Electrical
Alternator, 100 amp
12 volt electrical system
Battery, single 900 CCA maintenance-free with disconnect
Anti-restart key switch
Audible back-up alarm
12 volt internal and external power sockets
'Electronic Technician' diagnostic connector
Alternator, 100 amp
12 volt electrical system
Battery, single 900 CCA maintenance-free with disconnect
Anti-restart key switch
Audible back-up alarm
12 volt internal and external power sockets
'Electronic Technician' diagnostic connector
Cabin, standard
EROPS certified
LCD monitor, interactive
Longitudinal stability indicator system
- Entry door with window- Floor mat- Interior mirror- Heater
Rearview mirror, left and right side
Wiper blade, front and rear window
Power steering with steering wheel spinner knob
Radio ready
EROPS certified
LCD monitor, interactive
Longitudinal stability indicator system
- Entry door with window- Floor mat- Interior mirror- Heater
Rearview mirror, left and right side
Wiper blade, front and rear window
Power steering with steering wheel spinner knob
Radio ready
Quick Coupler
Manual, IT interface
Fenders
Frame leveling system
Grease system, remote
Stabilizers
Coupler, IT hydraulic
Lights, flood lights cabin mounted
Engine block heater, 240 V
Screen guard, front
Screen guard, front + roof screen guard
Hitch, retrieval
Spare Tyres and rims
*Mitas 14.00-24 TG02*Goodyear 14.00-24 SGG
Work Tools
Carriages -- standard and side shift
Forks (pair)- Pallet 60x100x1200 mm

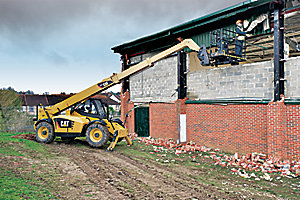

Access Work Platform
*Access platform, fixed *Access platform, extendable *both platform options swivel 180 degrees
Rotating Beacon
Light plate light
Fork stowage brackets
Tool box
Cat padlocks & Keys, 3x (fuel tank, oil tank and engine hood)
