TH336 Telehandler

Operating Specifications

Rated Load Capacity	3300 kg
Maximum Lift Height	6100 mm
Load at Max Height - Stabilizers Up	2400 kg
Maximum Forward Reach	3109 mm
Load at Max Reach - No Stabilizers	1000 kg
Top Travel Speed	40 km/h
Load at Max Height	2400 kg
Load at Max Reach	1000 kg
Load at Maximum Height	2400 kg
Load at Maximum Reach	1000 kg

Engine

Engine Model	C4.4 DITAAC / C4.4 DITAAC ACERT
Gross Power	74.5 kW
Gross Power - Standard	74.5 kW
Gross Power - Optional	93.1 kW
Maximum Torque - Standard	410 N·m
Maximum Torque - Optional	496 N·m
Bore	105 mm
Stroke	127 mm
Displacement	4.4 L

Weights

Operating Weight

6573 kg

Dimensions

Height	2323 mm
Width	2382 mm
Wheelbase	2950 mm
Length to Fork Face	4621 mm
Ground Clearance	430 mm
Turning Radius Over Tires	3700 mm
Turning Radius Over Forks	4670 mm
Length to Front of Tire	4253 mm
Rear Overhang	375 mm
Height to Top of Hood	1753 mm

Tires

Standard

15.5/80-24 16PR

Hydraulic System

Maximum System Pressure	250 bar
Maximum Pump Flow	113 L/min
Maximum Pressure	250 bar
Auxiliary Hydraulic Supply - Intermittent	80 L/min
Auxiliary Hydraulic Supply - Continuous	60 L/min

Service Refill Capacities

Fuel Tank	150 L
Hydraulic Tank	90 L

Transmission Speeds

Forward - 1	7 km/h
Forward - 2	12 km/h
Forward - 3	21 km/h
Forward - 4	32 km/h
Forward - 5	40 km/h
Reverse - 1	7 km/h
Reverse - 2	12 km/h
Reverse - 3	21 km/h

Boom Performance

Boom Up	6 Seconds
Boom Down	4 Seconds
Tele In	5 Seconds
Tele Out	5 Seconds
Crowd Forward (dump)	3 Seconds
Crowd Backward	3 Seconds
Combined - Up and Out	10 Seconds
Combined - Down and In	7 Seconds
Boom Breakout Force	36 kN
Bucket Breakout Force	55 kN
Drawbar Pull (Basic)	82.4 kN
Drawbar Pull (Premium)	86.8 kN

Brakes

Parking Brake

mechanical on front axle

Operator Station

The operator station provides comfort and protection with convenient, easier to read controls.

Intuitive Control Layout

All day operator comfort and efficiency is ensured through our easy to read control layout.

Easier Access

Cab entry and exit is easier and more convenient due to the well placed handholds and step.

Electronic Machine Information Display

Communicates essential technical data to facilitate easier machine operation.

Joystick

The single joystick electro-hydraulic controls allow operators to become proficient in operation.

Longitudinal Stability Indicator

New dedicated longitudinal stability indicator (LSI) in the operator's line of sight.

Cabin

Operators will be comfortable sitting in the spacious cabin.

Anti-theft device

The TH336 features a built-in start code device to reduce the risk of theft and unauthorized use.

Ease of Operation

Ease of operation was extremely important in the design of the new TH336 Telehandler. The single joystick controls are easier for operators to become proficient in its operation.

Performance

The TH336 delivers high performance to meet your specific job site needs.

Lift Height

The TH336's operator can place materials to a maximum height of 6.1 m.

Reach

Job site obstacles present challenges demanding a machine to place loads at greater distances - the TH336 delivers.

Manoeuvrability

The TH336 offers enhanced maneuverability, due to its tight turning circle and its three different steering modes.The TH336 works well in confined areas.

Steering Modes

The TH336 offers three steering modes (2-wheel, crab and 4-wheel steer) to allow an operator to more easily position the machine.

Power Train

The TH336 power train delivers ultimate performance in the toughest of working conditions.

Engine Options

Two Caterpillar engine options are available: a Cat C4.4 DITAAC mechanical control engine and a Cat C4.4 ACERT electronic control engine. Both engines are certified to meet new Tier 3 emission regulations and are specifically designed and built to meet the requirements of tough telehandler applications.

Cooling Pack

The cooling pack on the TH336 is located to the rear of the engine bay and is designed to work in the most challenging environments.

Transmission

The TH336 has a Cat powersynchro transmission which uses a torque converter to transfer engine power to the transmission.

Axles

Durable planetary axles are featured on the TH336 providing 50 degree steering angle for outstanding manoeuvrability.

Versatility

Redefine the traditional role of a Telehandler with the Cat TH336.

Work Tools

A wide range of work tools to meet most job applications extends the versatility of this machine.

Coupler

One Cat Telehandler and a selection of quick-change work tools is all you need to keep your work rates high.

Hitches

A selection of hitches is available for duty around the yard and recovery work.

Serviceability

Extended service intervals and a reduction in service parts give the Cat TH336 some of the lowest operating costs in the industry.

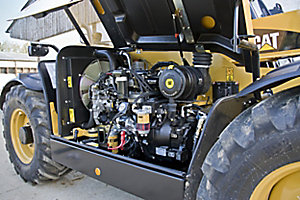

Access

All Cat Telehandler service points, including the combined transmission/hydraulic oil filter, are accessible and major components are within reach at ground level due to the overall machine design.

Selection

Make detailed comparisons before you buy. Your Cat Dealer can give you precise answers to your questions.

Operation

Improving operating techniques can boost your profits. Your Cat Dealer has training literature and other ideas to help increase your productivity.

Replacement

Repair, rebuild or replace? Your Cat Dealer can help you evaluate the cost involved so you can make the right choice.

Product Support

You will find high availability of parts at our Dealer parts counter. Cat Dealers utilize a worldwide computer network to find in-stock parts to minimize machine downtime.Additionally, Caterpillar offers a line of genuine remanufactured components which can help lower repair costs.

TELESCOPIC BOOM

 Sychronized 2-section boom with non-metallic wear

 Boom angle indicator

 Single auxiliary to the boom head

 Boom prop

 Compensation cylinder

 Boom brush (Ag configuration only)

 Boom work lights

Sychronized 2-section boom with non-metallic wear

Boom angle indicator

Single auxiliary to the boom head

Boom prop

Compensation cylinder

Boom brush (Ag configuration only)

Boom work lights

ELECTRICAL

 Alternator, 100-amp

 Anti-restart key switch

 Battery, maintenance-free, 12 volt, 900 CCA with disconnect

 Horn

 Alarm, back up audible

 Electronic Control Module

 Power sockets, 12 volt internal and external

 "Electronic Technician" diagnostic connector

Alternator, 100-amp

Anti-restart key switch

Battery, maintenance-free, 12 volt, 900 CCA with disconnect

Horn

Alarm, back up audible

Electronic Control Module

Power sockets, 12 volt internal and external

"Electronic Technician" diagnostic connector

OPERATOR STATION

 EROPS certified cabin (Construction configuration)

 Joystick, single lever electro-hydraulic control

 Low step, grab bars for easy entry

 2-way adjustable mechanical suspension seat (Construction configuratin)

 Power steering with steering wheel spinner knob

 Floor mat

 Right and left side rear view mirror

 Service door, cab air intake filter, fuel fill, hydraulic fill, level indicator, fuse panel and washer fill

 Interactive LCD monitor

 Cup holder

 Heater

 Interior mirror

 Wiper blade rear window

 Entry door that can be opened

 Radio ready

 Flood lights (Ag configuration)

 Sun screen (Ag configuration)

 Longitudinal stability indicator

 Seat, cloth air suspension (Ag configuration)

 Seat belt & document pouch

 Load charts

 Cabin, compliant with agricultrual tractor safety standards

 Built-in start code device

POWER TRAIN

 Engine, Caterpillar C4.4 DITAAC, 74.5 kW, Tier 3 compliant

 Air cleaner, dual element and filter condition indicator

 Water separator

 Transmission, Cat PowerSynchro 4 forward/3 reverse

 Direction change, single lever, column mounted

 Spin-on filters: engine oil filter, hydraulic/transmission filter

 Three steering modes are available: 2-wheel steer, 4-wheel steer, and crab steer

 Axles, durable heavy duty

 Automatic steering self alignment system

 Hydraulics

 Engine, Cat C4.4 DITAAC, combined with 4-speed transmission and 60cc implement pump (Ag configuration)

Engine, Caterpillar C4.4 DITAAC, 74.5 kW, Tier 3 compliant

Air cleaner, dual element and filter condition indicator

Water separator

Transmission, Cat PowerSynchro 4 forward/3 reverse

Direction change, single lever, column mounted

Spin-on filters: engine oil filter, hydraulic/transmission filter

Three steering modes are available: 2-wheel steer, 4-wheel steer, and crab steer

Axles, durable heavy duty

Automatic steering self alignment system

Hydraulics

Engine, Cat C4.4 DITAAC, combined with 4-speed transmission and 60cc implement pump (Ag configuration)

TYRES

 Mitas 15.5/80-24 16PR

OTHER EQUIPMENT

 Integrated lift and tie down points

 Built-in start code device

 Standard Cat color paint

 Continuous auxiliary hydraulic flow

 Fenders

 Fan, direct mounted

 Manual IT interface quick coupler

HYDRAULICS

 - Load sensing, variable flow piston pump- Maximum pump flow of 150 L/min- Maximum system pressure 250 bar- Continuous flow hydraulics

 Electronic joystick, simultaneous and proportional control to all three boom functions

- Load sensing, variable flow piston pump- Maximum pump flow of 150 L/min- Maximum system pressure 250 bar- Continuous flow hydraulics

Electronic joystick, simultaneous and proportional control to all three boom functions

Work Tools

 Buckets:General Purpose, (1.3 yd3)Light Materials, (2.6 yd3)(3.25 yd3)(3.90 yd3)Multi Purpose, (1.3 yd3)Grapple, (1.1 yd3)Material Handling 1.5 m3 (1.95 yd3)

 Material Handling Arm, 4,190 lb.

 Self-tipping Hopper, (1.6 yd3)

 Carriage, standard, 1220 mm wide with load brackets and 60 mm floating shafts

 Carriage, side shift, 1220 mm wide with load brackets and 60 mm floating shafts

 Forks, pallet

 Truss boom, 13.1' Cat Standard

 Lifting hook (GP, attaches to boom)

 Manure fork and grab

 Bale handler

Buckets:General Purpose, (1.3 yd3)Light Materials, (2.6 yd3)(3.25 yd3)(3.90 yd3)Multi Purpose, (1.3 yd3)Grapple, (1.1 yd3)Material Handling 1.5 m3 (1.95 yd3)

Material Handling Arm, 4,190 lb.

Self-tipping Hopper, (1.6 yd3)

Carriage, standard, 1220 mm wide with load brackets and 60 mm floating shafts

Carriage, side shift, 1220 mm wide with load brackets and 60 mm floating shafts

Forks, pallet

Truss boom, 13.1' Cat Standard

Lifting hook (GP, attaches to boom)

Manure fork and grab

Bale handler

Couplers

 IT hydraulic coupler, Caterpillar - Single auxiliary supply

 Hydraulic coupler, JD style for use with JD work tools

 Hydraulic coupler, Manitou style for use with Manitou work tools

 Mechanical coupler, Manitou style for use with Manitou work tools

 Hydraulic coupler, JCB style with 45x100x1070 mm pallet forks, for use with JCB work tools

 Mechanical coupler, JCB style with 45x100x1070 mm pallet forks, for use with JCB work tools

Engine

 Engine block heater (240 V)

 Air filter, pre-cleaner

Engine block heater (240 V)

Air filter, pre-cleaner

Operator Station

 Mirrors --Mirror tow hitch, Mirror tow hitch - convex

 Screen Guards -- front screen guard, front screen guard + roof screen guard

 Wiper blade roof (Construction configuration)

 Rotating beacon

 Flood lights, cabin mounted (Construction configuration)

Other Equipment

 Hitches - Ag configuration

 Hitches - Construction Configuration

 License plate

 License plate for hydraulic pick-up hitch

 Fork stowage brackets

 Boom brush

 Tool box

 Cat padlocks & keys, 3X (fuel tank, oil tank, & engine hood)

 Trailer - Ag configuration

Tyres

 Spare Tyre - Ag configuration

 Spare tyre - Construction configuration
