Skid Steer Loaders(Non Current)

The Cat® Skid Steer Loaders deliver exceptional performance, versatility, ease of operation, serviceability and customer support. A wide range of Cat Work Tools are machine matched to Cat Skid Steer Loaders to meet all customer needs.

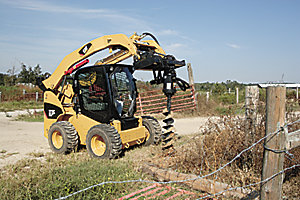

272C (XPS) Skid Steer Loader

The Cat 272C Skid Steer Loader, with its long wheel base and vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its stability and lifting performance provides excellent material handling.

  • Specification Summary

  • Engine Model C3.4 T
  • Net Flywheel Power 67 kW
  • Gross Power 70 kW
  • Gross Power - SAE J1995 70 kW

Product Details


Engine Model C3.4 T
Net Flywheel Power 67 kW
Gross Power 70 kW
Gross Power - SAE J1995 70 kW
Net Power - ISO 9249 EEC 67 kW
Displacement 3.3 l
Stroke 120 mm
Bore 94 mm


Operating Weight 3761 kg

Operating Specifications

Rated Operating Capacity 1474 kg
Rated Operating Capacity with Optional Counterweight 1579 kg
Tipping Load 2948 kg


Wheel Base 1381 mm
Length - With Bucket on Ground 3833 mm
Length - Without Bucket 3265 mm
Height - Top of Cab 2083 mm
Vehicle Width over Tires 1676 mm
Maximum Overall Height 4115 mm
Bucket Pin Height - Maximum Lift 3279 mm
Bucket Pin Height - Carry Position 200 mm
Reach - Maximum Lift/Dump 764 mm
Clearance at Maximum Lift and Dump 2487 mm
Ground Clearance 225 mm
Departure Angle 26°
Bumper Overhang - Rear Axle 1089 mm
Maximum Dump Angle 51°
Turn Radius from Center - Rear 1481 mm
Turn Radius from Center - Coupler 1767 mm
Turn Radius from Center - Bucket 2577 mm
Maximum Reach - With Arms Parallel 1270 mm
Rack Back Angle - Maximum Height 83°
Bucket Pin Reach - Maximum Lift 373 mm

Hydraulic System

Maximum Loader Hydraulic Pressure 28000 kPa
Maximum Loader Hydraulic Flow 125 l/min
Hydraulic Power 32 kW
Hydraulic Flow (1) Standard Flow
Loader Hydraulic Pressure 23000 kPa
Loader Hydraulic Flow 84 l/min
Hydraulic Flow (2) High Flow


ROPS ISO 3471:1994
FOPS ISO 3449:1992 Level I
FOPS Level II ISO 3449:1992 Level II

Power Train

Travel Speed Forward 12 km/h
Travel Speed Reverse 12 km/h
Travel Speed Forward - 2-Speed Option 16 km/h
Travel Speed Reverse - 2-Speed Option 16 km/h

Service Refill Capacities

Chain Box - Each Side 11 l
Cooling System 14 l
Engine Crankcase 10 l
Fuel Tank 98 l
Hydraulic System 57 l
Hydraulic Tank 42 l

Sealed and Pressurized Cab

Provides a cleaner and quieter operating environment.

Seat Mounted Adjustable Joystick Controls

These features make the C-series the industry leader in operator comfort.

High Performance Power Train

Provides high engine horsepower and torque. Electronic Torque Management and standard foot throttle allow the machine to be operated at part throttle for lower sound levels and fuel consumption.

High Flow XPS Hydraulic System

Available for applications that demand maximum hydraulic work tool performance.

Work Tools

Caterpillar’s broad range of performance matched work tools make the Cat Skid Steer Loader the most versatile machine on the jobsite.


Easy routine maintenance helps reduce machine downtime for greater productivity.
