Descriptions
Manufacturer:
Caterpillar
Product Family:
Skid Steer Loaders
Model:
246C
Year:
2012
SMU/Hrs:
4200
Location:
Kuwait
Serial number:
JAY06798
216B Series 2 Skid Steer Loader
Skid Steer Loaders
-
Specification Summary
- Engine ModelC2.2
- Net Flywheel Power36 kW
- Rated Operating Capacity635 kg
- Operating Weight2590 kg
- Gross Power SAE J199538 kW

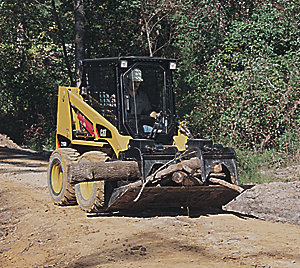

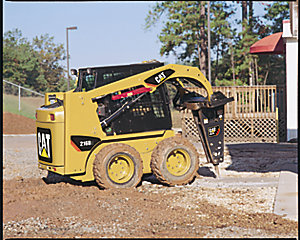

The Cat 216B Series 2 Skid Steer Loader, with its radial lift design, delivers excellent digging performance with outstanding drawbar power.
Engine
| Engine Model | C2.2 |
| Net Flywheel Power | 36 kW |
| Gross Power SAE J1995 | 38 kW |
| Net Power EEC ISO 9249 | 36 kW |
| Displacement | 2.2 L |
| Stroke | 100 mm |
| Bore | 84 mm |
Operating Specifications
| Rated Operating Capacity | 635 kg |
| Rated Operating Capacity w/Optional Counterweight | 680 kg |
| Tipping Load | 1326 kg |
Weights
| Operating Weight | 2590 kg |
| Operating Weight (HF) | 2581 kg |
Dimensions
| Wheelbase | 986 mm |
| Length w/Bucket on Ground | 3233 mm |
| Length w/o Bucket | 2519 mm |
| Height to Top of Cab | 1950 mm |
| Vehicle Width over Tires | 1525 mm |
| Max Overall Height | 3709 mm |
| Bucket Pin Height at Max Lift | 2854 mm |
| Bucket Pin Height at Carry Pos. | 239 mm |
| Reach at Max Lift and Dump | 505 mm |
| Clearance at Max Lift and Dump | 2169 mm |
| Ground Clearance | 195 mm |
| Departure Angle | 26° |
| Bumper Overhang - Rear Axle | 967 mm |
| Maximum Dump Angle | 40° |
| Turn Radius from Ctr - Rear | 1485 mm |
| Turn Radius from Ctr - Coupler | 1199 mm |
| Turn Radius from Ctr - Bucket | 1940 mm |
| Max. Reach w/Arms-Parallel | 1280 mm |
| Rack Back Angle at Max Height | 96.7° |
Hydraulic System
| Hydraulic Power | 23 kW |
| Hydraulic Flow | Standard Flow |
| Loader Hydraulic Flow | 60 L/min |
Cab
| ROPS | ISO 3471:1994 |
| FOPS | ISO 3449 APR98 Level I and ISO 3449:1992 Level I |
| FOPS Level II | ISO 3449:1992 |
Power Train
| Travel Speed Forward | 11.3 km/h |
| Travel Speed Reverse | 11.3 km/h |
Service Refill Capacities
| Chain box, each side | 6 L |
| Cooling System | 10 L |
| Engine Crankcase | 10 L |
| Fuel Tank | 58 L |
| Hydraulic System | 55 L |
| Hydraulic Tank | 35 L |
Ergonomic Operator Station
Easy to use pilot operated joystick controls for reduced operator fatigue and increased productivity.High Performance Power Train
Provides high engine horsepower and torque, allowing part-throttle operation for lower sound levels and fuel consumption.Advanced Hydraulic System

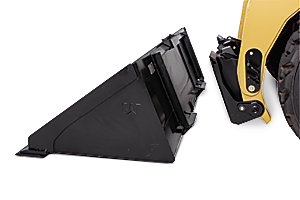

Designed for maximum power and reliability.Work Tools
Caterpillar’s broad range of performance matched work tools make the Cat Skid Steer Loader the most versatile machine on the jobsite.Serviceability
Easy routine maintenance helps reduce machine downtime for greater productivity.
