226B3 Skid Steer Loader

Skid Steer Loaders

Specification Summary
Gross Power 61 hp
Gross Power - SAE J1995 61 hp
Displacement 2.2 l
Stroke 100 mm
In stock (9) View Pricing Download Brochure

* Actual availability may vary subject to prior Sales

The Cat B-Series 3 Skid Steer Loader, with its many work tool options, delivers outstanding performance to help you get more done and increase your bottom line. Spacious, ergonomic operator station and easy-to-use pilot operated joystick controls keep you comfortable throughout the work day. High performance power train, advanced hydraulic system and traditional Cat reliability improve your productivity in the toughest working conditions.

Engine

Gross Power	61 hp
Gross Power - SAE J1995	61 hp
Displacement	2.2 l
Stroke	100 mm
Bore	84 mm
Engine Model	Cat® C2.2 T
Net Power - SAE 1349/ISO 9249	56 hp

Weights

Operating Weight	2641 kg
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1 speed, OROPS, dirt bucket, tires, no optional counterweights and manual quick coupler (unless otherwise noted).

Operating Specifications

Rated Operating Capacity	680 kg
Rated Operating Capacity with Optional Counterweight	726 kg
Tipping Load	1360 kg
Breakout Force - Tilt Cylinder	1852 kg
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1 speed, OROPS, dirt bucket, tires, no optional counterweights and manual quick coupler (unless otherwise noted).

Hydraulic System

Hydraulic Flow - High Flow - Hydraulic Power (Calculated)	37.7 kW
Hydraulic Flow - High Flow - Loader Hydraulic Flow	104 l/min
Hydraulic Flow - High Flow - Loader Hydraulic Pressure	23000 kPa
Hydraulic Flow - Standard - Loader Hydraulic Flow	61 l/min
Hydraulic Flow - Standard - Loader Hydraulic Pressure	23000 kPa
Hydraulic Flow - Standard - Hydraulic Power (Calculated)	23.2 kW

Cab

ROPS	ISO 3471:2008
FOPS	ISO 3449:2005 Level I

Power Train

Travel Speed - Forward or Reverse	12.7 km/h

Service Refill Capacities

Chain Box - Each Side	6 l
Cooling System	10 l
Engine Crankcase	10 l
Fuel Tank	58 l
Hydraulic System	55 l
Hydraulic Tank	35 l

Dimensions

Wheel Base	986 mm
Length - With Bucket on Ground	3233 mm
Length - Without Bucket	2519 mm
Height - Top of Cab	1950 mm
Vehicle Width over Tires	1525 mm
Maximum Overall Height	3709 mm
Bucket Pin Height - Maximum Lift	2854 mm
Bucket Pin Height - Carry Position	200 mm
Reach - Maximum Lift/Dump	505 mm
Clearance at Maximum Lift and Dump	2169 mm
Ground Clearance	195 mm
Departure Angle	26°
Maximum Dump Angle	40°
Turn Radius from Center - Coupler	1195 mm
Turn Radius from Center - Bucket	1944 mm
Rack Back Angle - Maximum Height	81°
Bumper Overhang - Behind Rear Axle	967 mm
Maximum Reach with Arms Parallel to Ground	1291 mm
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1 speed, OROPS, dirt bucket, tires, no optional counterweights and manual quick coupler (unless otherwise noted).
Turn Radius from Center - Machine Rear	1502 mm

Operator Station

Superior comfort to keep you productive throughout the work day.

All Day Comfort

Comfort and ease of operation have been designed into every aspect of the operator station. The wide, spacious interior and uncluttered floor provide a comfortable work environment with excellent head, shoulder and leg room to keep productivity high and fatigue low. The adjustable seat and low effort controls keep the operator comfortable throughout the work day.

Low Effort Joystick Controls

Ergonomic, pilot hydraulic controls deliver precise control with minimal effort. The right joystick controls the loader raise, lower and tilt functions while the left joystick controls the forward and reverse travel speed plus direction. Optional deluxe joysticks provide additional auxiliary controls with fingertip control of many work tool functions, including proportional work tool hydraulics and work tool electrical. Basic and deluxe joystick functions include one-touch continuous auxiliary hydraulic flow and momentary auxiliary hydraulic flow.

Excellent Visibility

The wide cab opening offers an exceptional view to the work tool. The sloped angle of the engine compartment allows excellent visibility to the rear of the machine. The standard rear view mirror gives the operator a panoramic view of the machine's rear and sides. The side windows remove easily for cleaning.

Additional Features for Maximum Comfort

The B-Series 3 machines offer the following additional features to help you on the job:

Suspension seat option for even greater operator comfort.
Easy to read instrument panels.
Optional air conditioner and heater for greater comfort in extreme conditions.
Standard floor mat with footrest provides non-slip surface and can be removed for easy cleaning.
Ergonomic, contoured and padded armbar provides comfortable operation.

Hydraulics

Exceptional lift, breakout and power to meet your needs.

High Performance Hydraulic System

Maximum power and reliability are built into the machine’s hydraulic system. In addition to providing power to the wheels, this system also provides the loader lift and tilt functions, powers the auxiliary circuit to drive work tools and drives the engine cooling fan. The hydraulic pumps are driven directly off the engine for maximum hydraulic performance and reliability - no belts are used. The hydraulic system also features:

Standard auxiliary hydraulics to power work tools that are available through quick connect hydraulic couplings rigidly mounted to the loader arm.
Cat ToughGuard™ hoses for increased reliability and durability.

High Flow Hydraulics

High flow hydraulic system is available on the 226B Series 3 for greater machine versatility and increased work tool performance.

High Efficiency Cooling System

Cooling capacity is maximized through the use of a side-by-side cooling package and hydraulically driven cooling fan.

High-efficiency, hydraulic oil cooler lets the machine work longer and harder in higher ambient temperatures, even with continuous work tool usage.
Efficient, hydraulically driven cooling fan provides cooling even when the machine is under load.
Optional variable speed demand fan provides improved fuel efficiency, increased machine performance, reduced sound levels and improved cold weather performance.

Power Train

Aggressive performance with fuel efficiency.

Cat Engine

The high performance power train provides high engine horsepower and torque. The B-Series 3 machines feature rugged, reliable Cat engines that meet U.S. EPA Tier 4 Interim and EU Stage IIIA emissions requirements.

Hand and Foot Throttles

Hand and foot throttles allow the operator to match engine speed to the task. The hand throttle is ideal for jobs requiring constant engine speed such as cold planing, trenching or snow blowing. The foot throttle lets the operator vary engine speed and minimize fuel consumption for other tasks such as load and carry, truck loading, grading and dozing.

Anti-Stall Feature

The anti-stall system maximizes machine power at all times by matching the engine torque with the operational requirements of the hystat and implement systems. This load sensing feature prevents the engine from stalling even during part throttle operation, keeping productivity high and fuel consumption low.

Lift Linkages

Built for tough jobs.

Radial Lift

The 226B Series 3, with its radial lift design, delivers excellent digging performance with superior mid-lift reach.

Work Tools

Do more jobs with one machine with Cat Work Tools.

The Right Tool for the Job

Get the most out of your machine with the comprehensive line of Cat Work Tools. Designed and built for optimum performance and durability, these tools deliver high productivity in a variety of applications to maximize the versatility and flexibility of the Cat Skid Steer Loader:

Augers
Backhoes

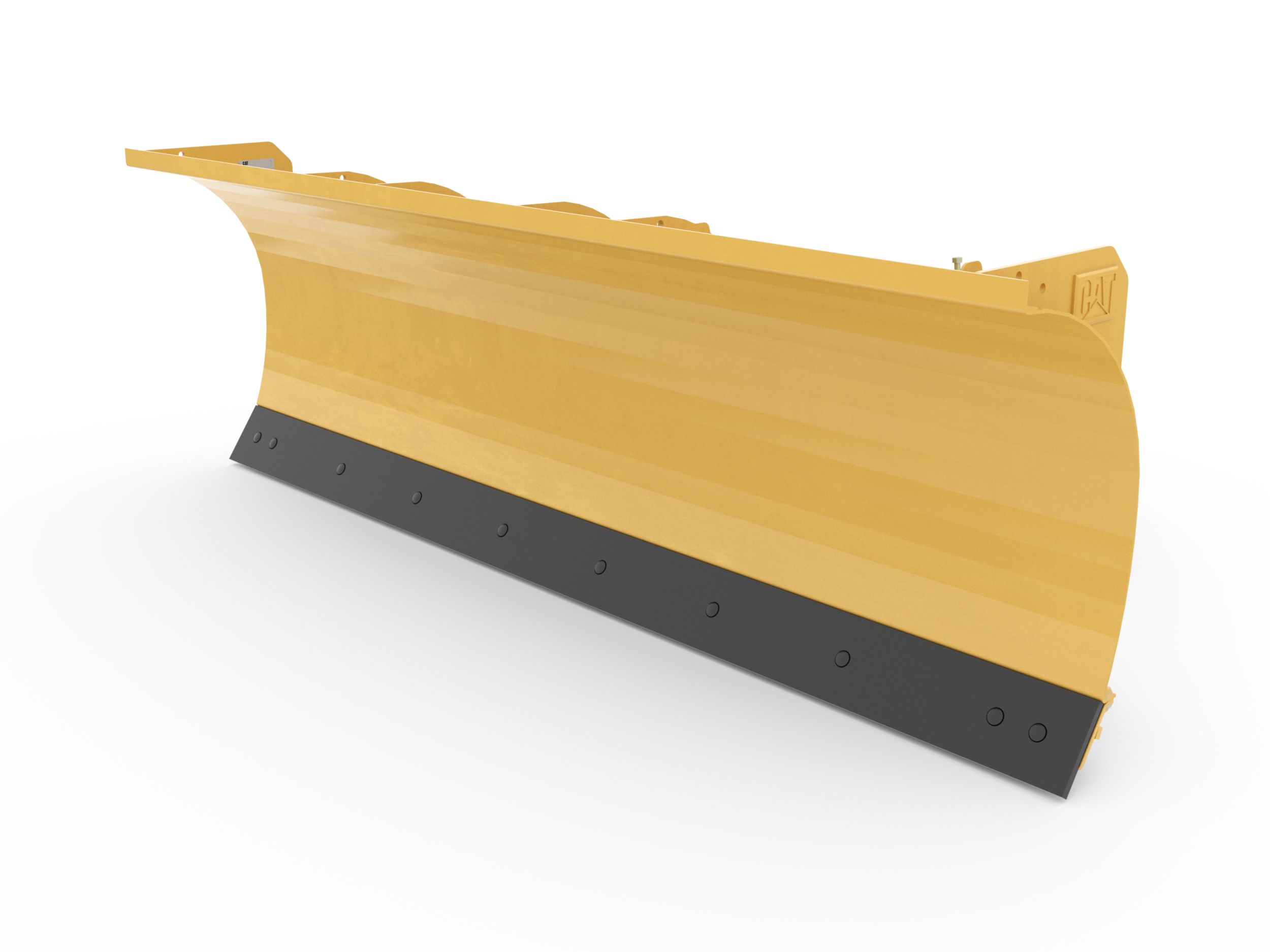

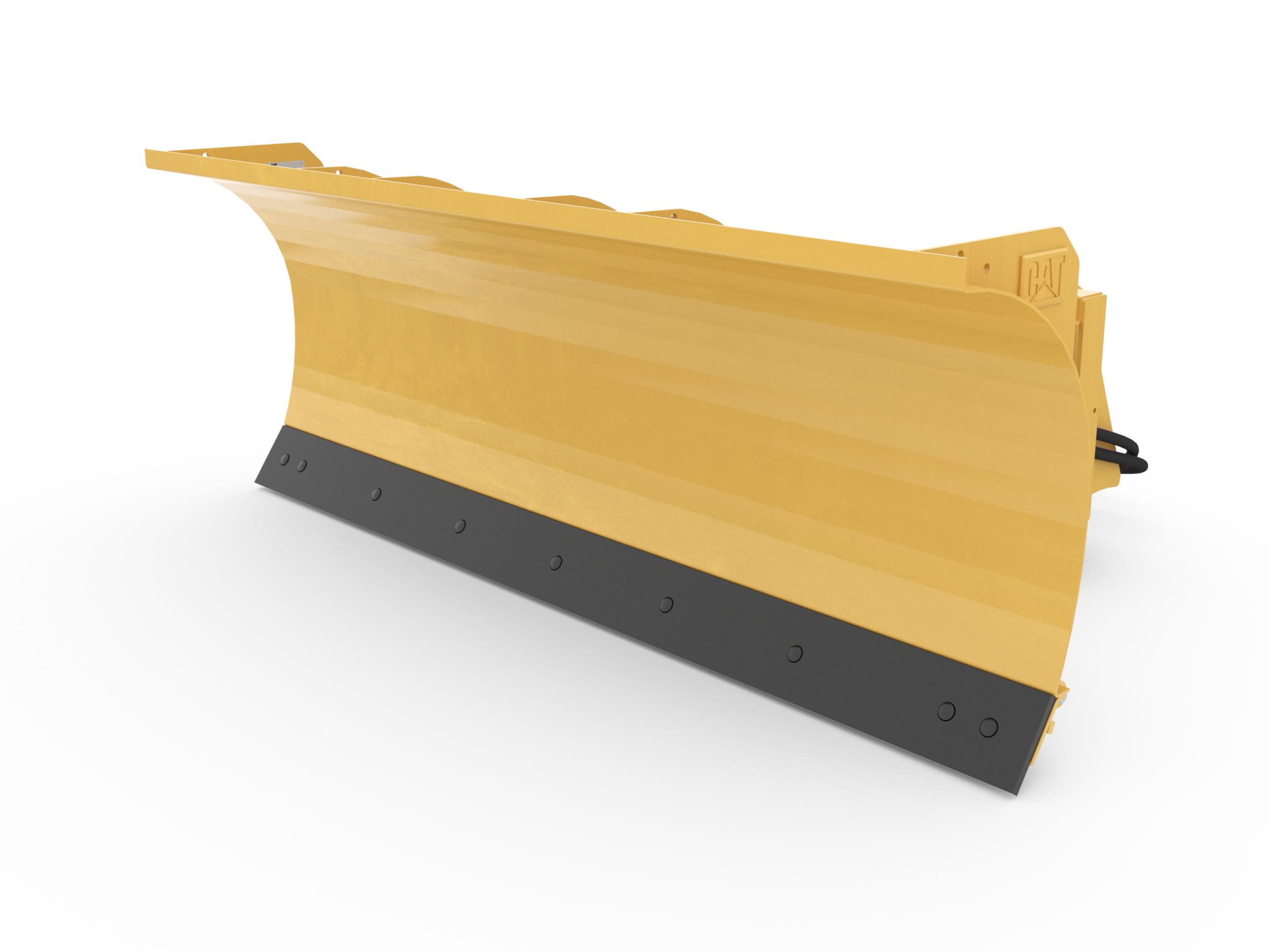

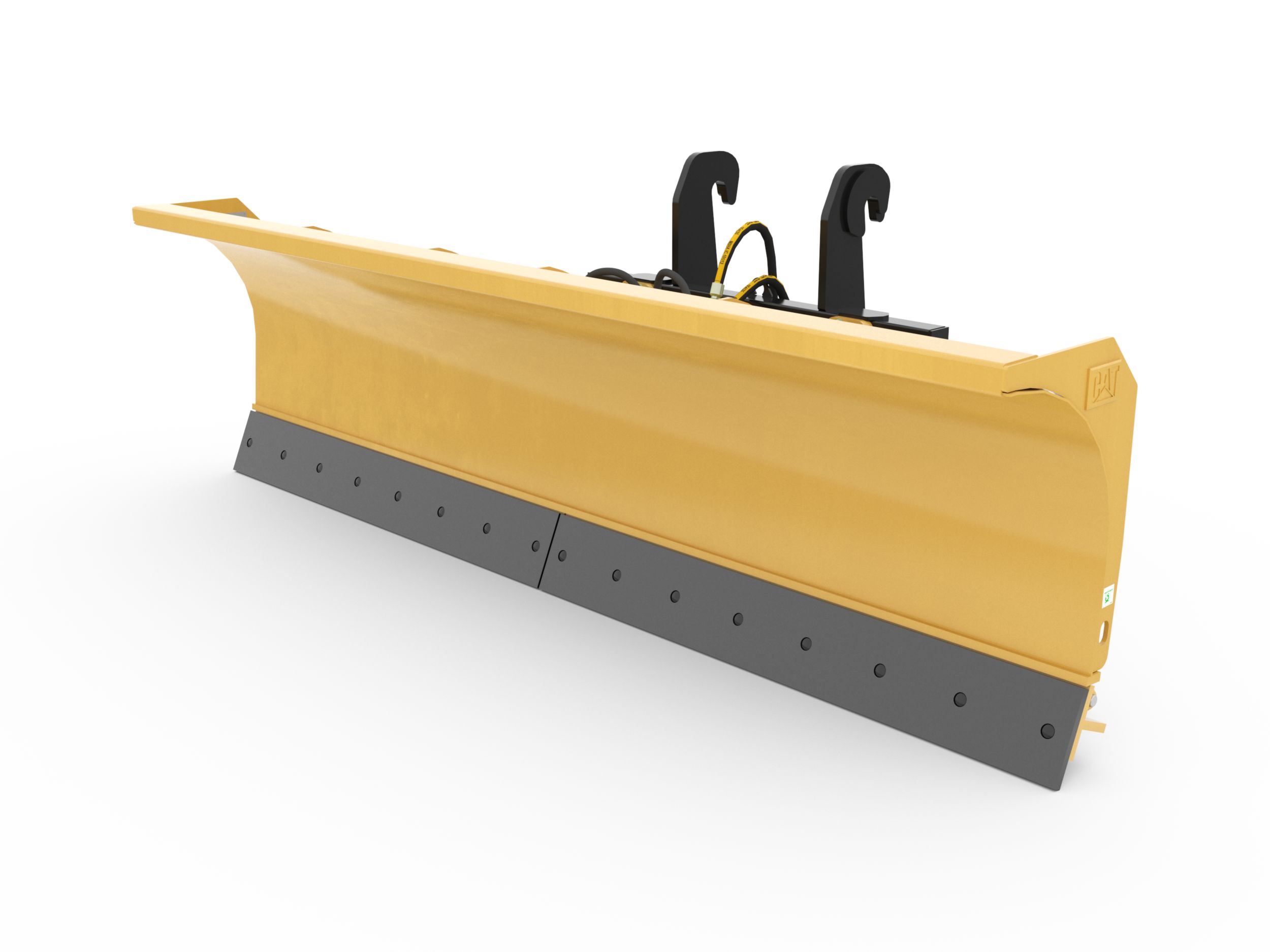

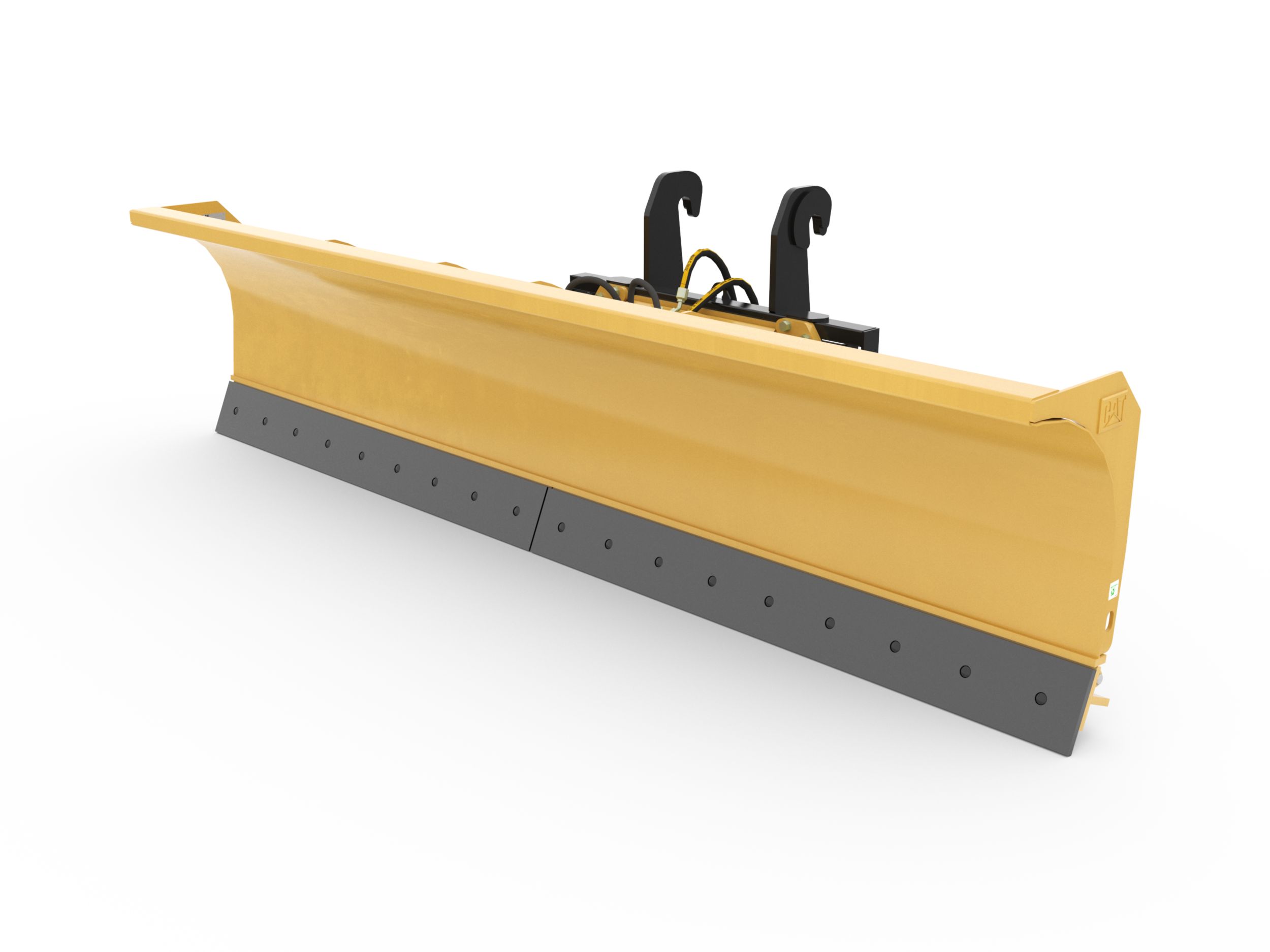

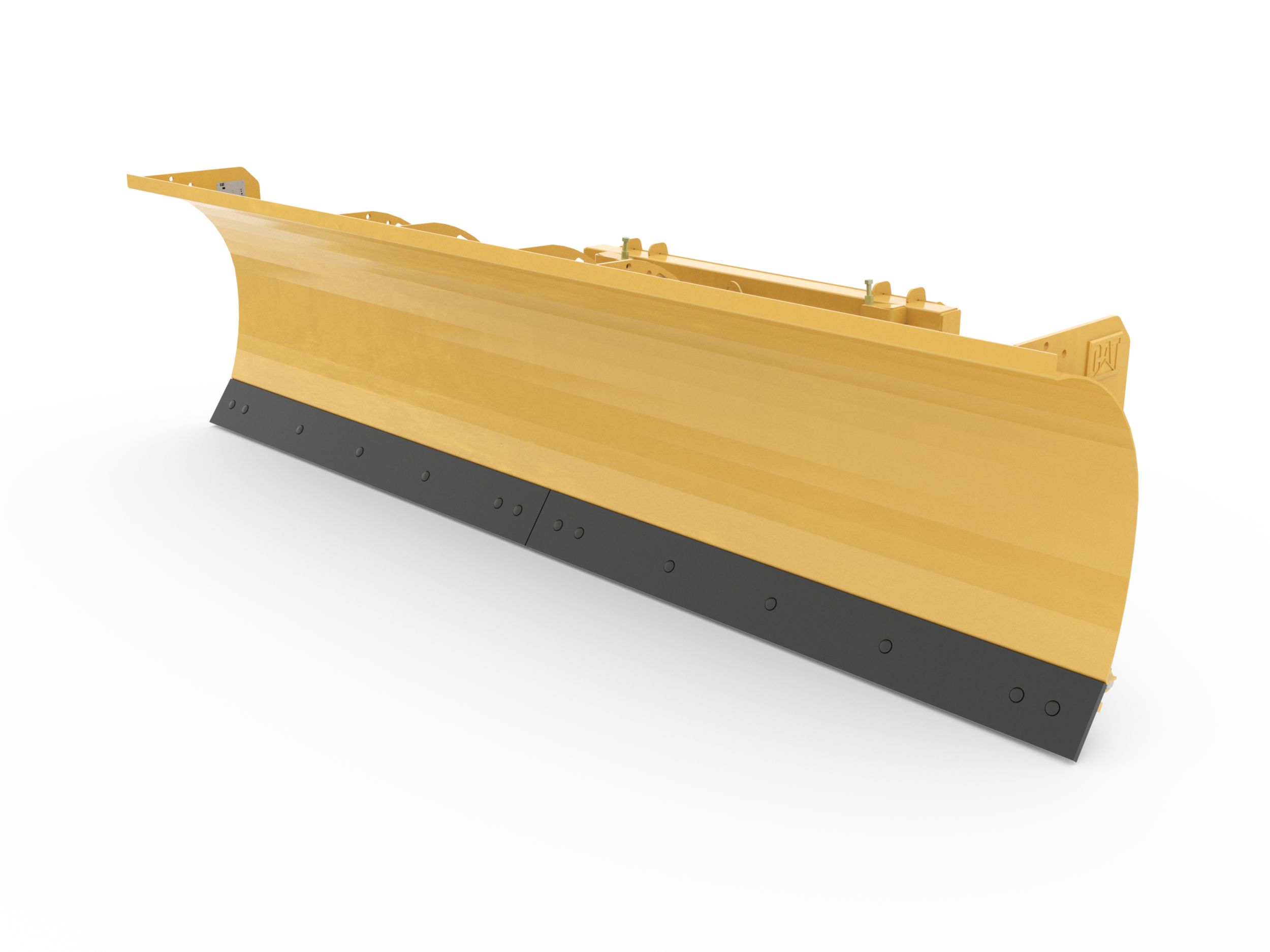

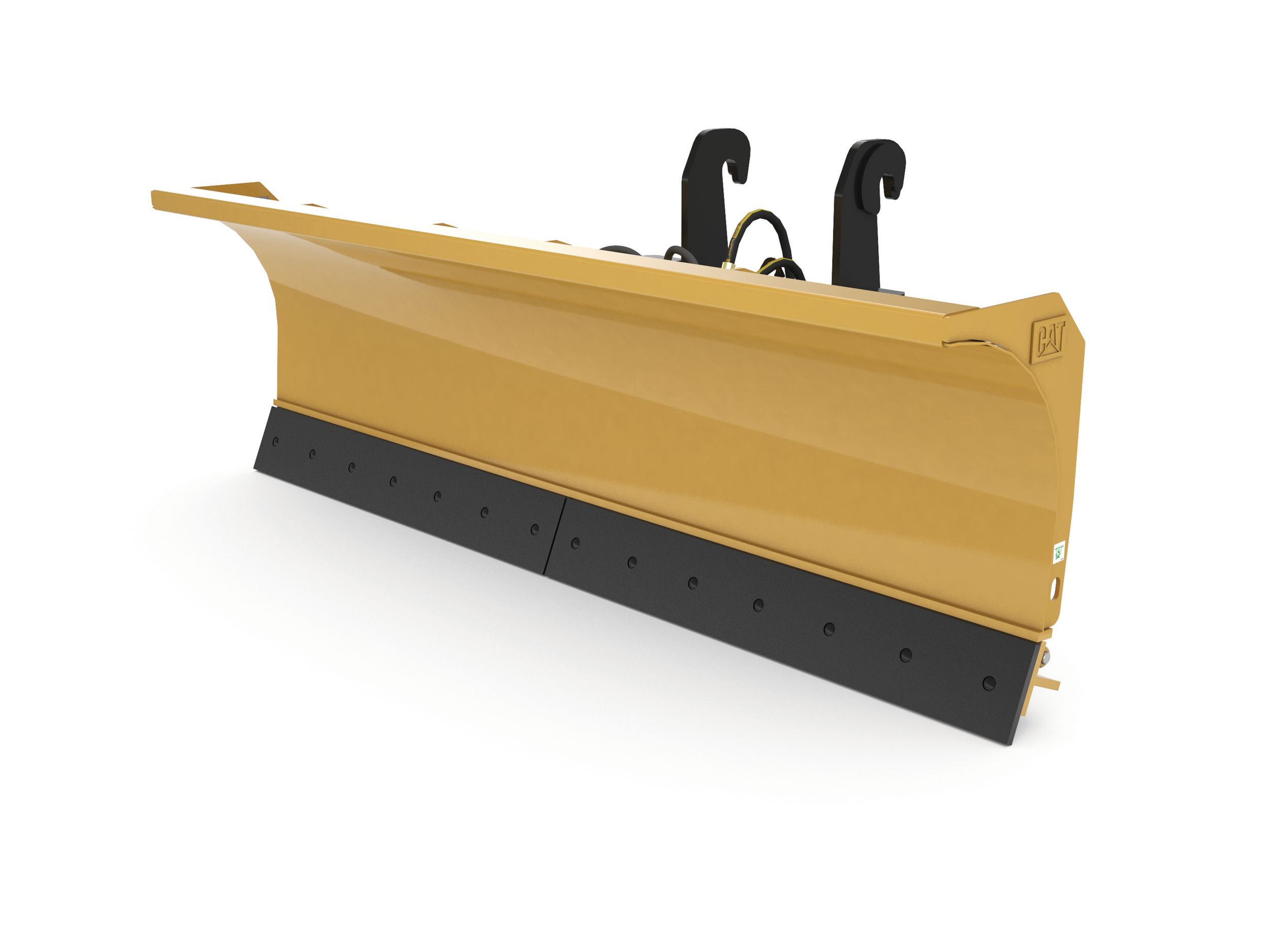

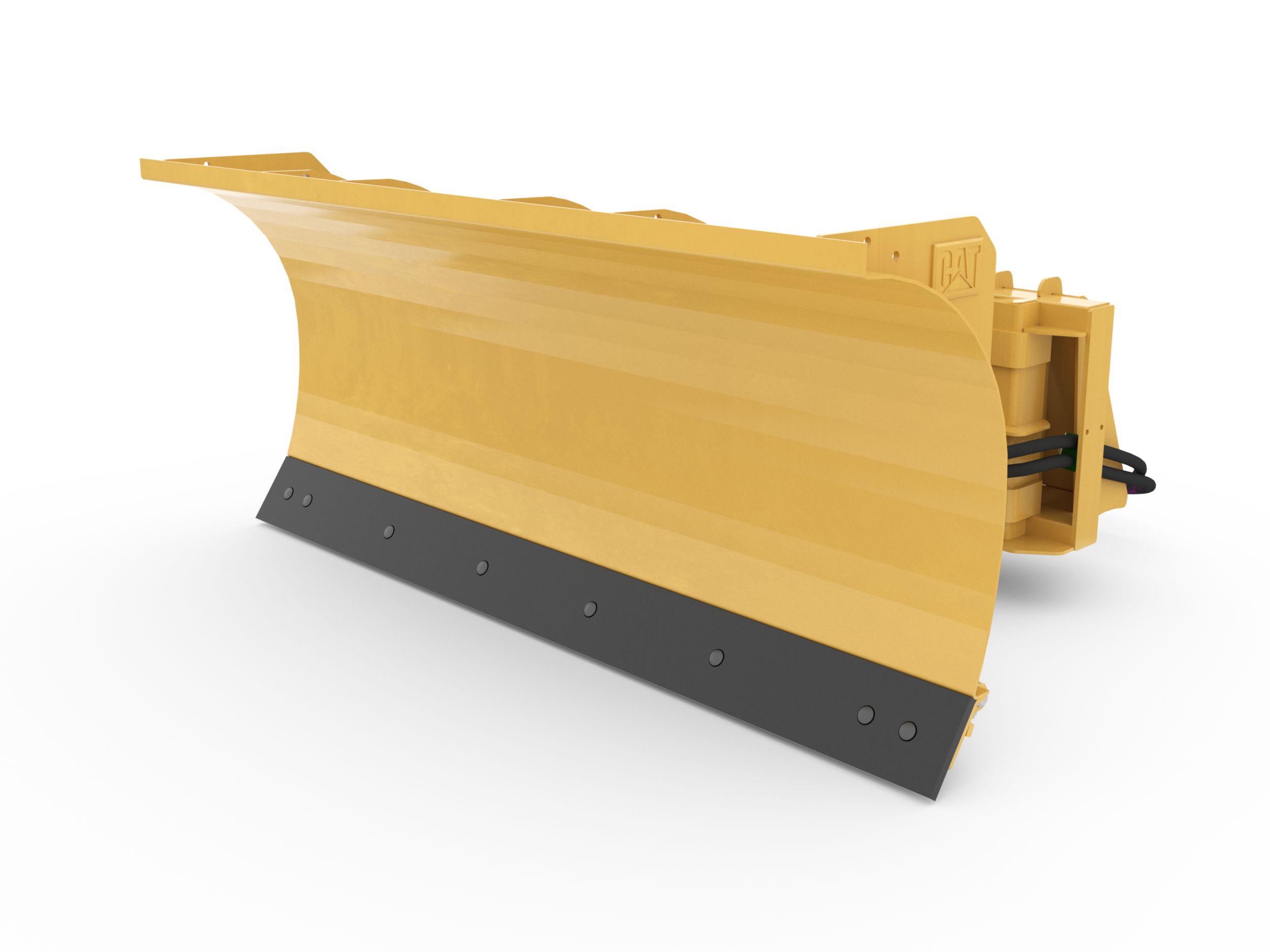

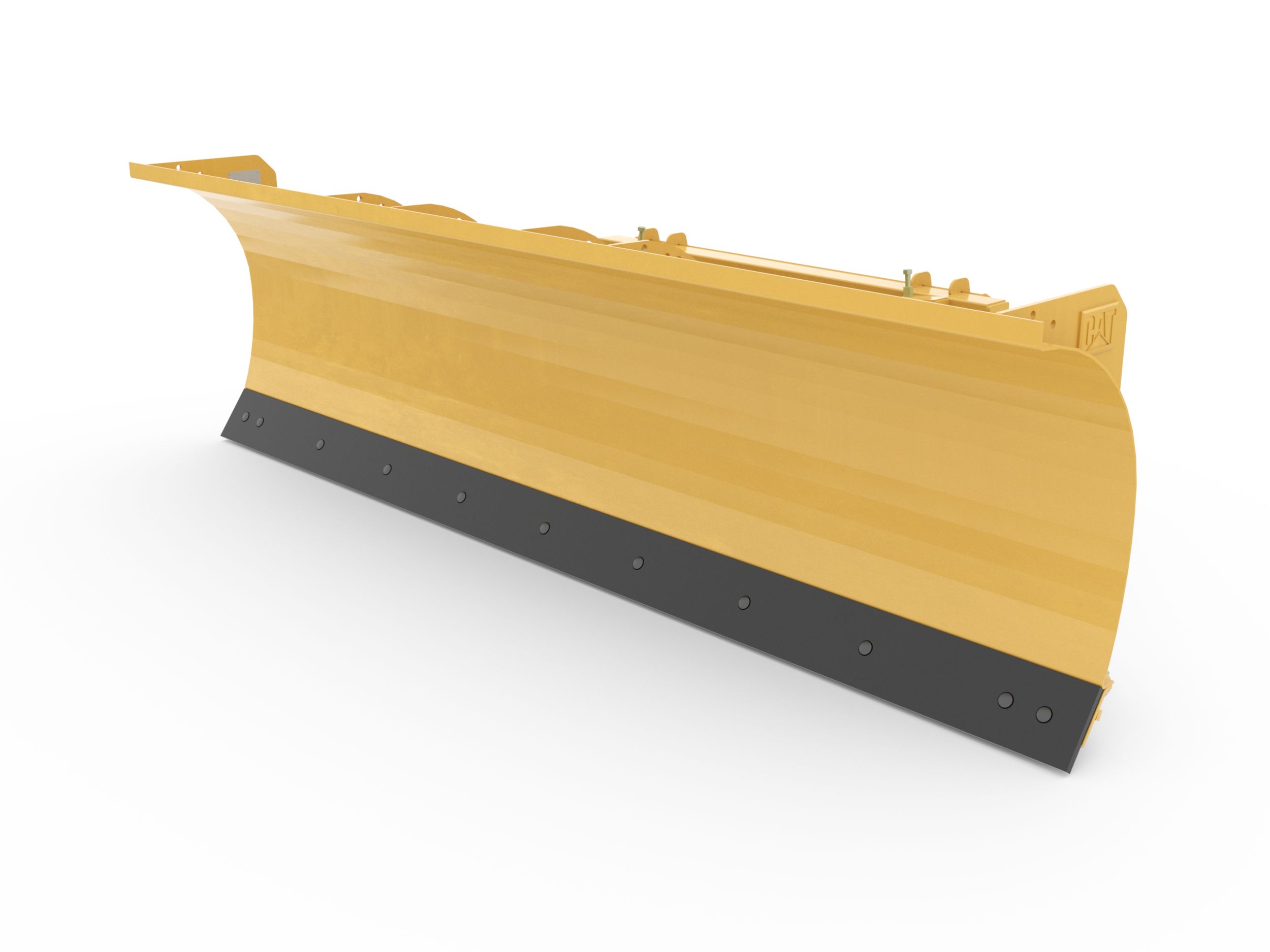

Blades (angle, dozer)
Buckets (general purpose, high capacity, dirt, utility, light material, multi purpose, industrial grapple, utility grapple)
Brooms (angle, pickup, utility)
Brushcutters
Cold Planers

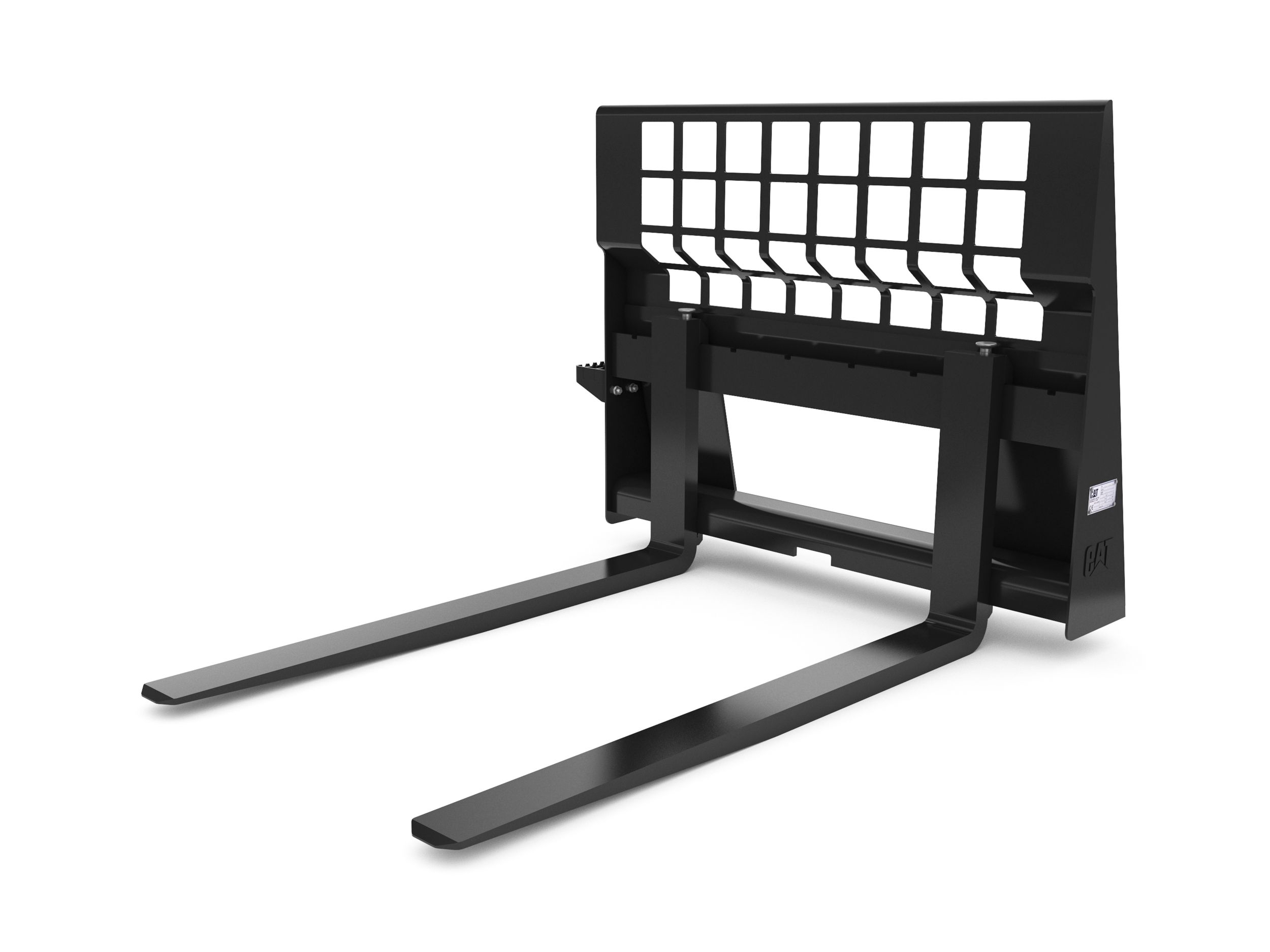

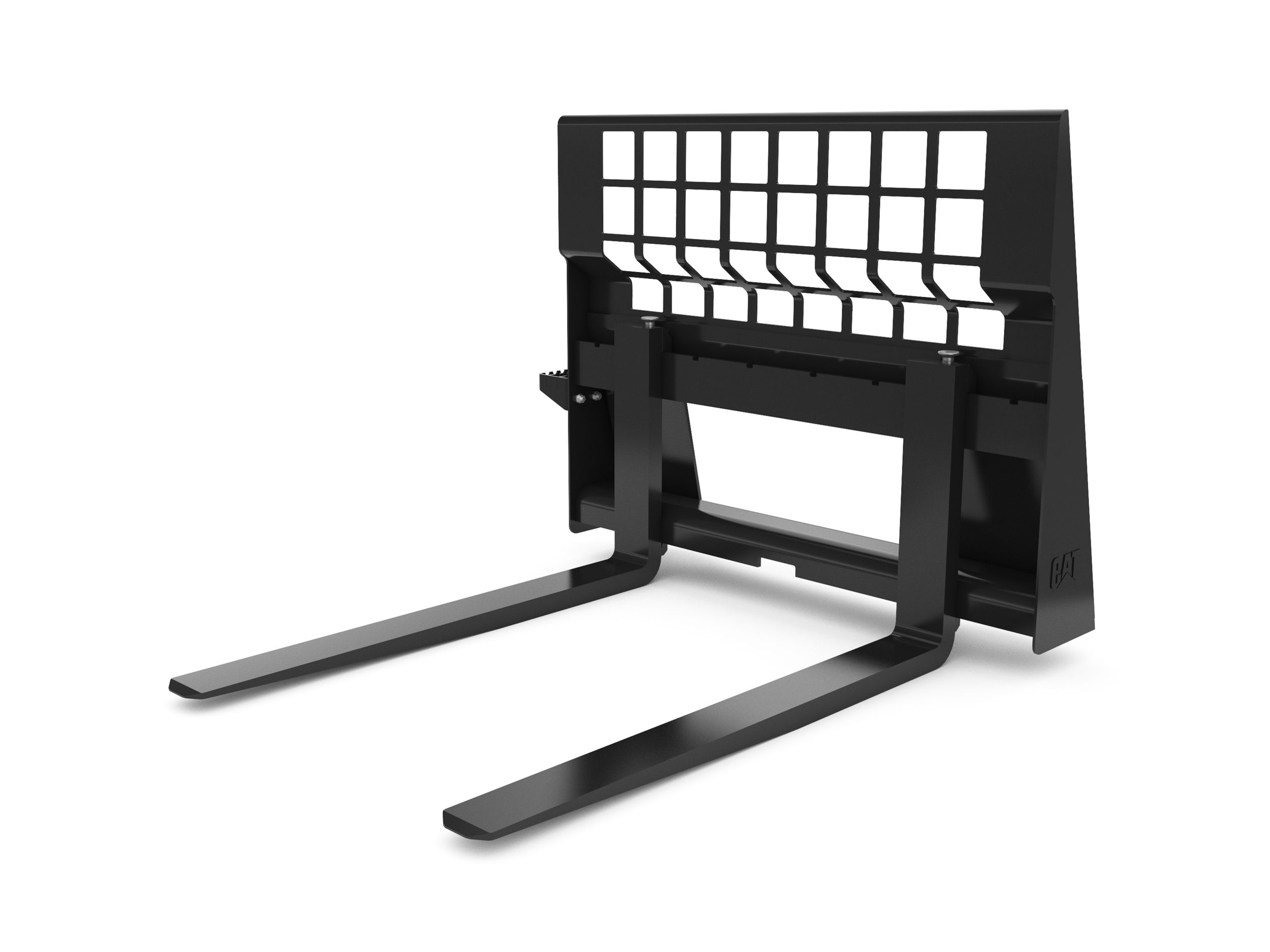

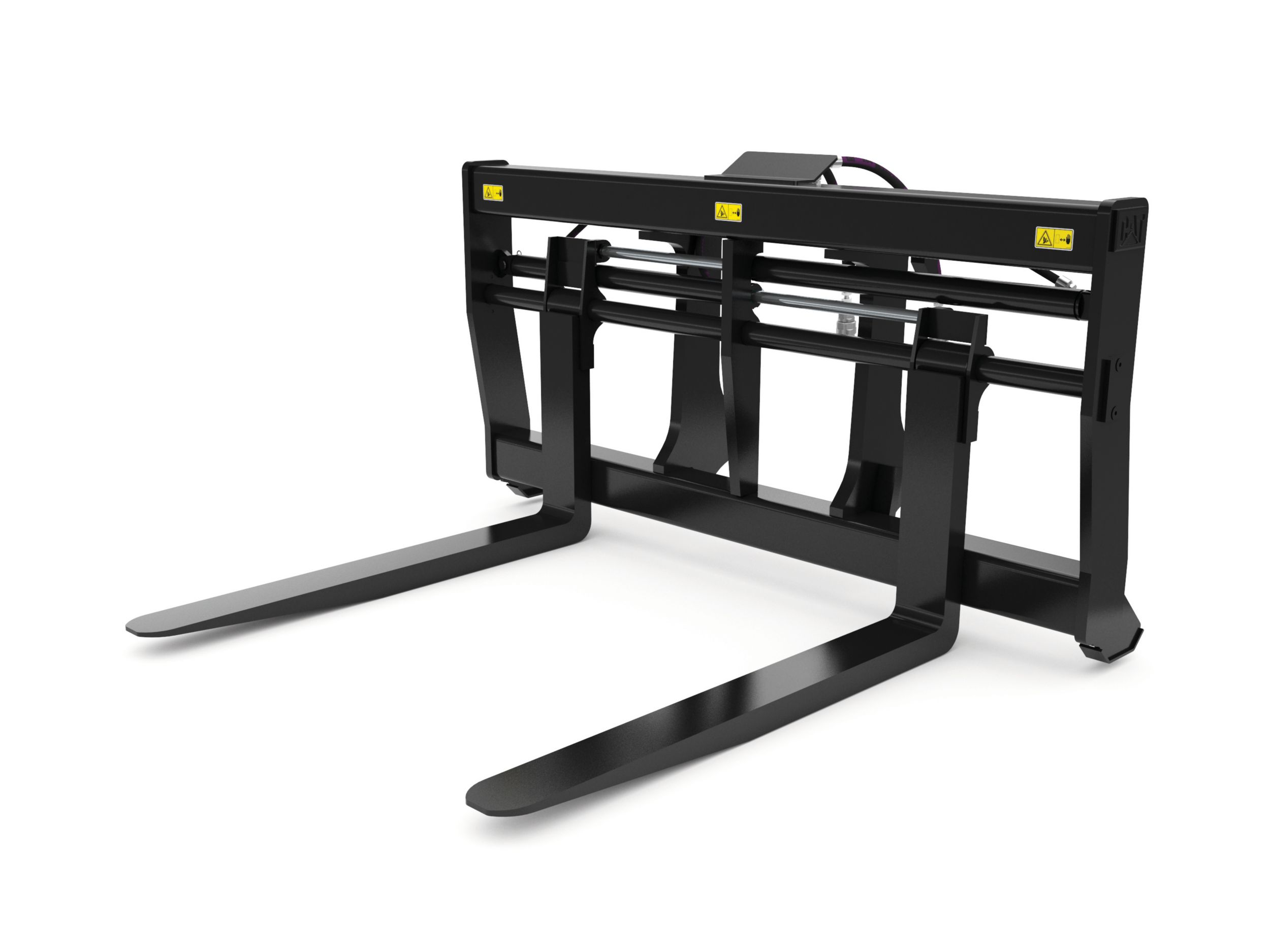

Forks (pallet, industrial grapple, utility grapple, utility)
Hydraulic Hammers
Landscape Tillers
Landscape Rakes

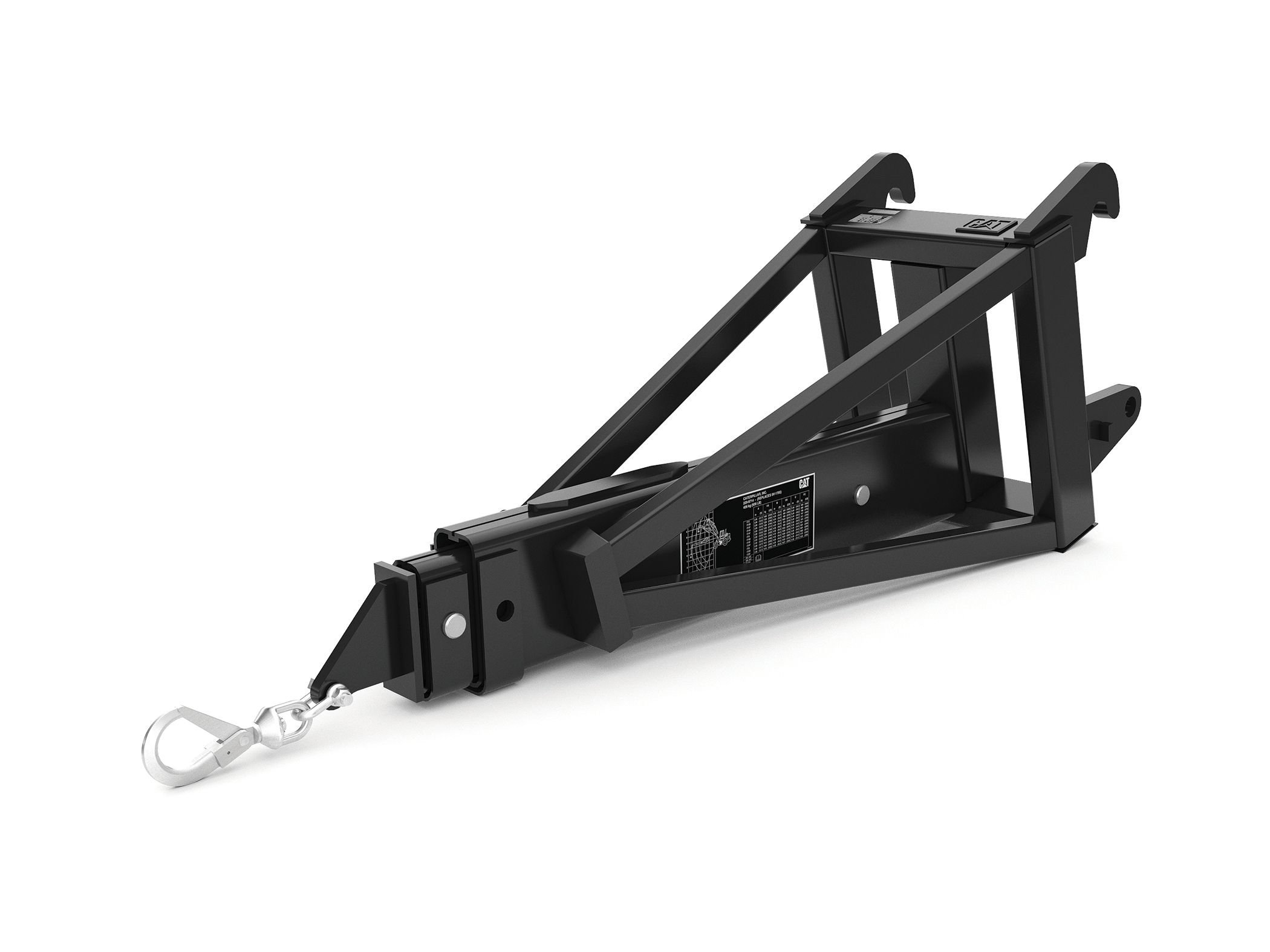

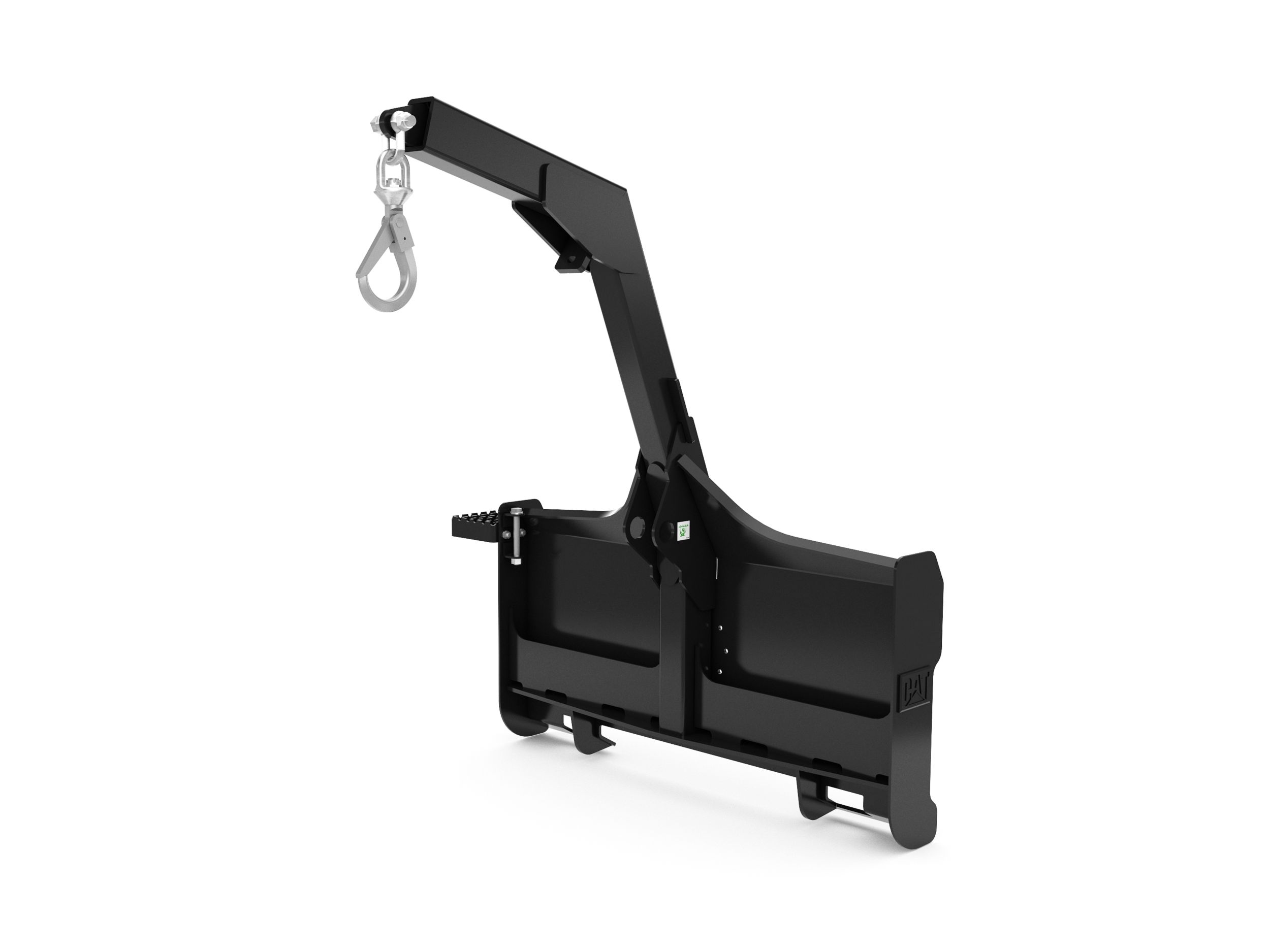

Material Handling Arm
Power Box Rakes
Shear
Snow Blowers
Stump Grinders
Trenchers
Vibratory Compactors
Wheel Saws

Quick Couplers

Work tools can be changed quickly and easily with the machine’s quick coupler system. The standard quick coupler features manual engagement and disengagement of work tools using two high leverage handles. The optional hydraulic quick coupler allows the operator to quickly change tools without leaving the cab.

Serviceability

Simplified service and maintenance save you time and money.

Easy Service

Convenient service features make maintenance easy, reducing your downtime:

Industry exclusive tilt-up cooling package provides superior access to service points and coolers.
Rear door opens 90 degrees for easy access to both sides of the engine.
Cab tilts rearward for easy access to all hydraulic pumps, motors, valves, lines and hydraulic tank.
Daily maintenance points are easily accessible.
Electrical wiring is color coded and numbered for easy identification.
S·O·SSM oil sampling valve is standard to allow regular monitoring of the hydraulic oil quality.

Customer Support

Support you can count on.

Superior Dealer Services

Your Cat dealer is ready to assist you with your purchase decision and everything after.

Make comparisons of machines, with estimates of component life, preventative maintenance and cost of production
Your Cat dealer can evaluate the cost to repair, rebuild and replace your machine, so you can make the right decision
For more information on Cat products, dealer services and industry solutions, visit us at www.cat.com.

ELECTRICAL

12 volt Electrical System

85 ampere Alternator

Automatic Glow Plug Activation

Ignition Key Start/Stop Switch

Lights: Gauge Backlighting, Two Rear Tail Lights, Two Adjustable Front and Rear Halogen Lights, Dome Light

OPERATOR ENVIRONMENT

Gauges: Fuel Level, Hour Meter

Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Filter Restriction, Hydraulic Oil Temperature, Parking Brak

Vinyl Seat

Pull Down Ergonomic Contoured Armrest

Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages

ROPS Cab, Open, Tilt Up

FOPS, Level 1

Top and Rear Windows

Floor Mat

Interior Rear View Mirror

12 volt Electric Socket

Backup Alarm

Horn
