K Series Motor Graders(Non Current)

Cat motor graders continue their reputation for offering world-class cab and controls, advanced electronics and hydraulics, and optimum productivity... to match your needs in any application.

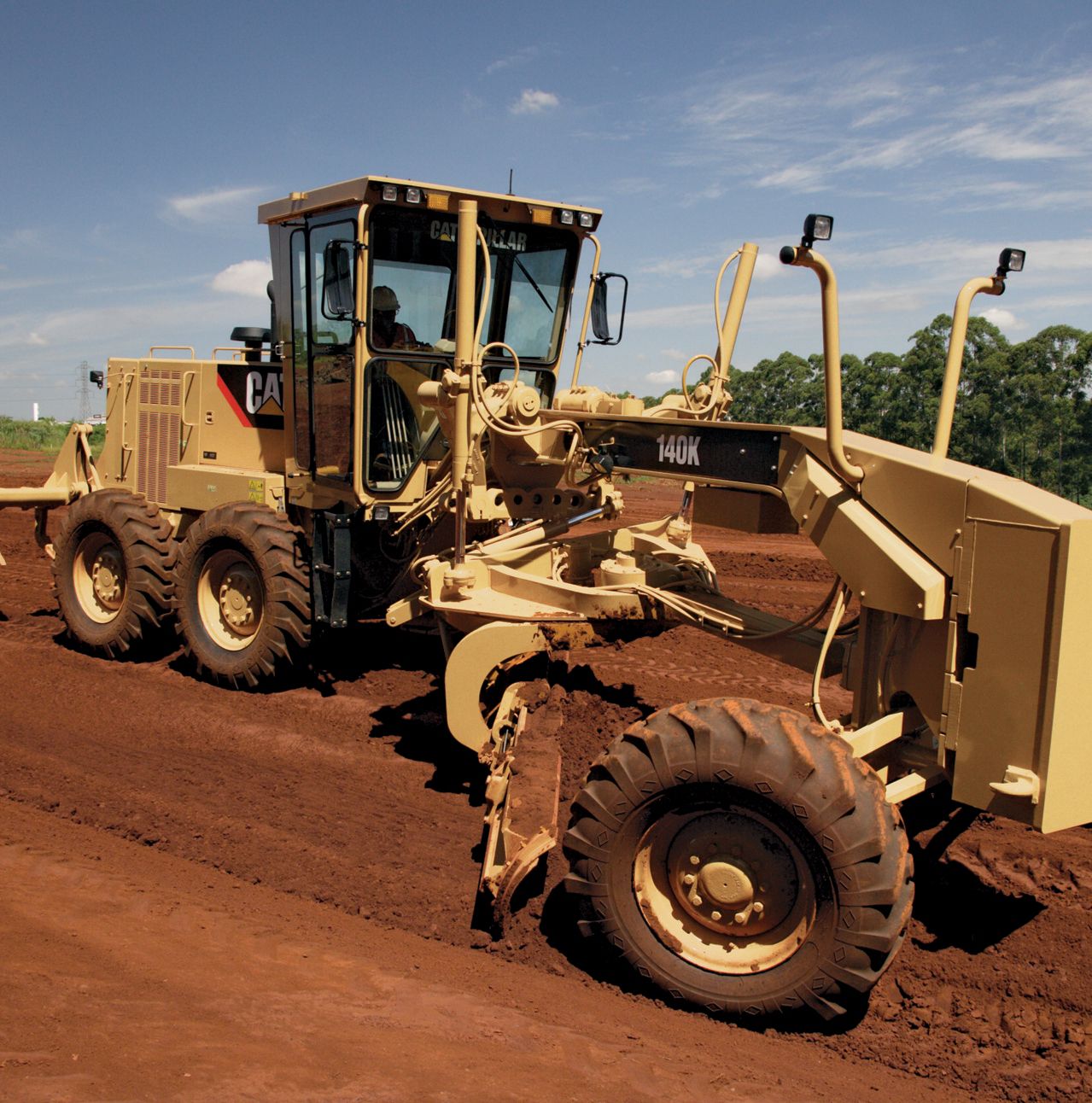

140K Motor Grader

The 140K optimizes your investment by delivering maximum productivity and durability. The Cat C7 engine, direct-drive power shift transmission and load-sensing hydraulics work together to ensure the power and precision to get the job done.

  • Specification Summary

  • Base Power (1st Gear) - Net 127 kW
  • Engine Model Cat® C7 ACERT™
  • VHP - Gears 1-2, Net 127 kW
  • VHP - Gear 3, Net 135 kW

Product Details


Base Power (1st Gear) - Net 127 kW
Engine Model Cat® C7 ACERT™
VHP - Gears 1-2, Net 127 kW
VHP - Gear 3, Net 135 kW
VHP - Gears 4-8, Net 142 kW
Base Power (All Gears) - Gross 140 kW
VHP - Gears 1-2, Gross 140 kW
VHP - Gear 3, Gross 148 kW
VHP - Gears 4-8, Gross 155 kW
Displacement 7.2 l
Bore 105 mm
Stroke 127 mm
Torque Rise - Gears 1-2 50%
Torque Rise - Gear 3 50%
Torque Rise - Gears 4-8 50%
Torque Maximum - Gears 1-2 889 N·m
Torque - Maximum - Gear 3 943 N·m
Torque Maximum - Gears 4-8 996 N·m
Speed at Rated Power 2000 r/min
Number of Cylinders 6
Derating Altitude 3048 m
High Ambient - Fan Speed - Maximum 1800 r/min
High - Ambient Capability 50 °C
VHP Range - Net 127-142 kW (170-190 hp)
Base Power (All Gears) - Net 128 kW

Power Train

Forward/Reverse Gears 8 fwd / 6 rev
Transmission Direct drive, Power shift
Brakes - Service Air actuated, multiple oil-disc
Brakes - Service - Surface Area 23948 cm²
Brakes - Parking Air actuated, multiple oil-disc
Brakes - Secondary Dual circuit

Operating Specifications

Top Speed - Forward 46.8 km/h
Top Speed - Reverse 37 km/h
Turning Radius - Outside Front Tires 7.5 m
Steering Range - Left/Right 47.5 °
Articulation Angle - Left/Right 20 °
Forward - 1st 4 km/h
Forward - 2nd 5.4 km/h
Forward - 3rd 7.9 km/h
Forward - 4th 10.9 km/h
Forward - 5th 17.2 km/h
Forward - 6th 23.4 km/h
Forward - 7th 32.2 km/h
Forward - 8th 46.8 km/h
Reverse - 1st 3.2 km/h
Reverse - 2nd 5.9 km/h
Reverse - 3rd 8.6 km/h
Reverse - 4th 13.6 km/h
Reverse - 5th 25.4 km/h
Reverse - 6th 37 km/h

Hydraulic System

Circuit Type Load Sensing, Closed Center, Proportional Priority Pressure Compensating System
Pump Type Variable Piston
Pump Output 210.5 l/min
Maximum System Pressure 25500 kPa
Standby Pressure 3600 kPa
Reservoir Tank Capacity 55 l


Blade Width 3.7 m
Moldboard - Height 610 mm
Moldboard - Thickness 22 mm
Arc Radius 413 mm
Throat Clearance 120 mm
Cutting Edge Width 152 mm
Cutting Edge Thickness 16 mm
End Bit - Width 152 mm
End Bit - Thickness 16 mm
Blade Pull - Typical GVW 9304 kg
Blade Pull - Maximum GVW 12403 kg
Down Pressure - Typical GVW 7728 kg
Down Pressure - Maximum GVW 12944 kg

Blade Range

Circle Centershift - Right 728 mm
Circle Centershift - Left 752 mm
Moldboard Sideshift - Right 663 mm
Moldboard Sideshift - Left 512 mm
Maximum Blade Position Angle 90 °
Blade Tip Range - Forward 40 °
Blade Tip Range - Backward 5 °
Maximum Shoulder Reach Outside of Tires - Right 1978 mm
Maximum Shoulder Reach Outside of Tires - Left 1896 mm
Maximum Lift Above Ground 480 mm
Maximum Digging Depth 735 mm


Ripping Depth - Maximum 462 mm
Ripper Shank Holders, Quantity 5
Ripper Shank Holder Spacing 533 mm
Penetration Force 8047 kg
Pry-Out Force 9281 kg
Machine Length Increase, Beam Raised 970 mm


Mid, V-Type - Working Width 1184 mm
Mid, V-Type - Scarifying Depth, Maximum 229 mm
Mid, V-Type - Scarifier Shank Holders Quantity 11
Mid, V-Type - Scarifier Shank Holder Spacing 116 mm
Rear - Working Width 2300 mm
Rear - Scarifying Depth, Maximum 266 mm
Rear - Scarifier Shank Holders Quantity 9
Rear - Scarifier Shank Holder Spacing 267 mm


Circle - Diameter 1530 mm
Circle - Blade Beam Thickness 35 mm
Drawbar - Height 127 mm
Drawbar - Width 76.2 mm
Front Axle - Height to Center 628 mm
Front Axle - Wheel Lean - Left/Right 18 °
Front Axle - Total Oscillation per Side 32 °
Front-Top/Bottom Plate - Width 305 mm
Front-Top/Bottom Plate - Thickness 25 mm
Front-Side Plates - Width 242 mm
Front-Side Plates - Thickness 12 mm
Front-Linear Weights - Minimum 165 kg/m
Front-Linear Weights - Maximum 213 kg/m
Front-Section Modulus - Minimum 2083 cm²
Front-Section Modulus - Maximum 4785 cm²


Height 506 mm
Width 201 mm
Sidewall Thickness - Inner 16 mm
Sidewall Thickness - Outer 18 mm
Drive Chain Pitch 51 mm
Wheel Axle Spacing 1522 mm
Tandem Oscillation - Front Up 15 °
Tandem Oscillation - Front Down 25 °

Service Refill

Fuel Capacity 305 l
Cooling System 40 l
Engine Oil 25 l
Transmission - Differential - Final Drives 47 l
Tandem Housing - Each 64 l
Front Wheel Spindle Bearing Housing 0.5 l
Circle Drive Housing 7 l


Gross Vehicle Weight - Typically Equipped 14768 kg
Gross Vehicle Weight - Base - Total 14138 kg
Gross Vehicle Weight - Typically Equipped - Front Axle 4430 kg
Gross Vehicle Weight - Typically Equipped - Total 14768 kg
Gross Vehicle Weight - Typically Equipped - Rear Axle 10338 kg
Gross Vehicle Weight - Base - Front Axle 4242 kg
Gross Vehicle Weight - Base - Rear Axle 9897 kg
Gross Vehicle Weight - Maximum 21201 kg
Gross Vehicle Weight - Maximum - Front Axle 7420 kg
Gross Vehicle Weight - Maximum - Rear Axle 13781 kg


Height - ROPS Cab 3354 mm
Height - Non-ROPS Cab 3348 mm
Height - ROPS/Canopy 3354 mm
Ground Clearance - Center Front Axle 614 mm
Length - Between Tandem Axles 1523 mm
Length - Front Axle to Moldboard 2598 mm
Length - Front Axle to Mid Tandem 6086 mm
Length - Front Tire to Rear of Machine 8504 mm
Length - Counterweight to Ripper 10013 mm
Ground Clearance - Trans. Case 337 mm
Height - Top of Cylinders 3044 mm
Height - Exhaust Stack 2893 mm
Width - Tire Center Lines 2065 mm
Width - Outside Rear Tires 2452 mm
Width - Outside Front Tires 2481 mm


ROPS/FOPS ISO 3471:1994/ISO 3449:1992
Steering ISO 5010:1992
Brakes ISO 3450:1996

Power Train

Smooth, responsive performance and reliability.

Power Shift Transmission

Provides on-the-go, full-power shifting and inching capability. Direct drive delivers superior fuel efficiency and better “feel” of blade loads, material hardness and ground speed.

Optional Autoshift - Automatic Gear Shifts

This feature automatically shifts the transmission at optimal points (in gears 3-8) so the operator can focus on the work, improving safety, productivity and ease of operation.

Oil Disk Brakes - Completely Sealed, Adjustment Free

Oil-bathed, air actuated and spring-released, located at each tandem wheel to eliminate braking loads on the power train and to reduce servicing time. The large brake surface area provides dependable braking capability and extended life before rebuild.

Front Axle with Cat Live Spindle Design

Caterpillar® sealed spindle keeps the bearings free from contaminants and lubricated in a lightweight oil to reduce owning and operating costs. Two tapered roller bearings support the wheel spindle. The larger tapered roller bearing is outboard where the load is greater, extending bearing life.

Cat C7 Engine

Maximum power and efficiency.

Power Management

The Cat C7 engine uses ACERT™ Technology to provide electronic control, precision fuel delivery and refined air management, resulting in outstanding performance and lower emissions. Variable Horse Power (VHP) is standard: base power in gears 1 and 2, 7.5 kW (10 hp) increase in gear 3, and an additional 7.5 kW (10 hp) increase in gears 4 through 8. Customized torque curves increase peak torque for improved lugging performance and responsiveness. The ?Electronic Throttle? Control (ETC) provides easier, more precise and? consistent throttle operation.


Balanced hydraulics deliver consistent, precise and responsive control.

Balanced Flow, Independent Oil Supply

Hydraulic flow is proportioned to ensure all implements operate simultaneously. Independent oil supply prevents cross-contamination and provides proper oil cooling, which means less heat build-up and extended component life.

Implement Control Valves

Provide outstanding operator "feel" and predictable system response for unmatched implement control. To help maintain exact blade settings, lock valves are built into all control valves. Line relief valves are also incorporated into selected control valves to protect the cylinders from over-pressurization.

Load-Sensing Hydraulics (PPPC)

A load sensing variable displacement pump and the advanced Proportional Priority Pressure-Compensating (PPPC, or "triple-P C") hydraulic valves provide superior implement control and better machine performance. PPPC valves have different flow rates for the head and rod ends of the cylinder. Continuously matching hydraulic flow and pressure to power demands creates less heat and reduces power consumption.

Consistent and Predictable Movement

The hydraulic system uses valves that provide PPPC control for precise implement and machine operation. These valves contain spools that are specifically cut for each hydraulic function on the motor grader. They compensate for differences in flow requirements, based on cylinder size and the difference in surface volume between the rod end (blue) and barrel end (red) of the cylinder. The result is predictable, consistent hydraulic speeds whether extending or retracting the cylinder.

Structures, DCM

Every component is designed for high strength and optimum durability.

Frame Structure - Provides Consistency and Strength

Front frame is a continuous top and bottom plate construction. Flanged box section design removes welds from high stress areas, improving reliability and durability. The rear frame structure has two box section channels with fully welded differential case for? a solid working platform. An integrated bumper ties the rear frame together into a cohesive unit, to ?handle high stress loads.

Drawbar, Circle and Moldboard (DCM)

The Y-frame drawbar is constructed of two solid beams for strength, durability, and precise blading control. This design allows the addition of a mid-mount scarifier without compromising blade positioning in extreme reach positions. One-piece forged circle stands up to high stress loads. Raised wear surfaces prevent circle teeth wear against the drawbar. The 64 uniformly spaced circle teeth are flame cut and heat induction hardened to resist wear, and the circle is secured to the drawbar by six support shoes for maximum support. The moldboard provides optimal curvature and large throat clearance that helps move all soil types quickly and efficiently. These features deliver excellent load distribution and minimal material buildup in the circle area while allowing large blade loads to roll freely.

Blade Lift Accumulators

This optional feature uses accumulators to help absorb impact loads to the moldboard by allowing vertical blade travel. Blade lift accumulators reduce unnecessary wear and help to avoid unintended machine movement for increased operator safety.

Work Tools and Attachments

Allow expansion of machine versatility, utilization, and performance.

Moldboard Options

Standard moldboard length is 3.7 m (12 ft), with an optional 4.3 m (14 ft) moldboard available from the factory. Left and right side moldboard extensions (available through the Cat parts system) will increase moldboard surface area and extend reach capability.

Ground Engaging Tools (GET)

A wide variety of Cat GET is available from Cat® parts system, including cutting edges, and end bits, all designed for maximum service life and productivity.

Rear Ripper/Scarifier

The 140K optional ripper/scarifier is made to penetrate tough material fast and rip thoroughly for easier material movement with the moldboard. The ripper includes three shanks with the ability to add two more if needed. Nine scarifier shanks can also be added for additional versatility.

Front Mounted Groups

A front mounted push plate/ counterweight or front blade can be ordered.

Mid-Mount Scarifier

Positioned between the front axle and the circle to break up tough material that the blade can then move, all in a single pass. The V-type scarifier can accommodate up to 11 teeth.

Snow Removal Work Tools

Includes snow wings, angle blades, and V-plows. Multiple mounting options are available, increasing machine versatility.

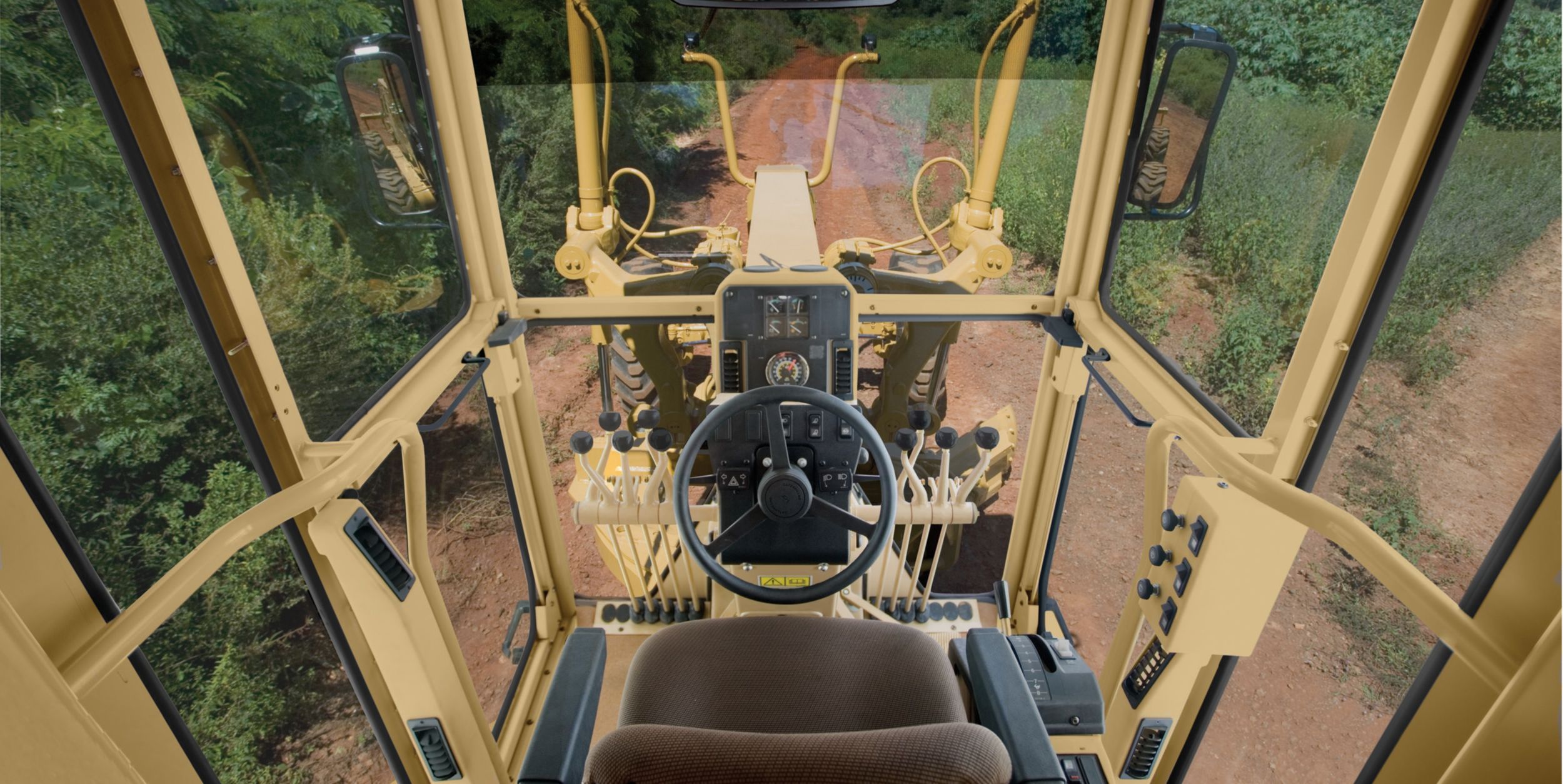

Operator's Station

Caterpillar sets the standard for comfort, convenience and visibility.

Designed to keep operators comfortable, relaxed and productive throughout the long work shift.

The 140K features: ? Electronic Clutch Pressure Control (ECPC) optimizes inching modulation and smoothes shifting ? Low efforts on all pedals, hydraulic controls and the transmission shifter ? Rocker switches and transmission shifter are backlit for night time operation ? The operator can adjust implement controls and steering wheel angle independently ? Clear view to the moldboard heel and tandem tires ? Fresh air filters above each cab door for quick replacement

In-dash Instrument Cluster

The instrument panel, with easy-to read, high-visibility gauges and warning lamps, keeps the operator aware of critical system information. The dash cluster panel provides enhanced machine information and diagnostic capability. It includes an engine coolant temperature gauge, an articulation gauge, voltage gauge, and fuel level gauge. Service brake air pressure gauges are also standard. Speedometer and tachometer are optional. All major systems are monitored by warning lights.

Additional Cab Features

Additional cab features include storage area, an adjustable control console, and a coat hook. The following optional features are also available: power port, air conditioner/heater, suspension seat, defroster fan, sun shade, backup lights, Product Link, and AccuGrade™ system ready. NOTE: Some attachments are not available in all regions

Electronic Solutions

Optimizes machine performance and availability.

AccuGrade Grade Control System

The Cat AccuGrade? System automatically controls the blade, improving operator efficiency and productivity. AccuGrade technology reduces the need for traditional survey stakes or grade checkers, so you can reach grade faster and in fewer passes than ever before. The Cat AccuGrade System includes Cross Slope, Sonic, Laser, GPS or ATS electronic kits that are available in the AccuGrade price list. The factory installed AccuGrade Attachment Ready Option provides additional mounting brackets, cab controls and electrical harnesses for easy installation of the AccuGrade Systems.

Product Link

Streamlines diagnostic efforts, and reduces downtime, maintenance scheduling and costs by providing a communication flow of vital machine data and location. Product Link gives automatic updates on machine parameters such as machine hours, machine condition, location, fault codes and alarms directly to your office computer.

Cat ET (Electronic Technician)

Cat ET is a two-way communication tool that gives service technicians easy access to stored diagnostic data, reducing machine downtime and lowering operating costs.


Caterpillar machines continue to meet or exceed safety standards.

ROPS/FOPS Cab offers Low Sound and Vibration Levels

The operator sound pressure level for the cab offered by Caterpillar, when properly installed, maintained and tested with the doors closed, meets or exceeds requirements set forth in ISO 6394:1998. The quiet environment improves operator working conditions. Steel non-skid steps use raised perforations to provide sturdy access to the tandems.

Brake Systems and Machine Protection

Brakes located at each tandem wheel offer the largest total brake surface area in the industry, delivering dependable stopping power and longer brake life. Standard circle drive slip clutch protects the drawbar, circle and moldboard from shock loads when the blade encounters an immovable object. Blade lift accumulators help absorb impact loads to the moldboard by allowing vertical blade travel.

Electrical Disconnect Switch and Engine Shutoff Switch

Disconnect switch provides ground-level lockout of the electrical system to prevent inadvertent machine starts. Engine shutoff allows anyone nearby to shut the machine down in case of an emergency.

Additional Safety Features

Laminated glass on the front windows and lockable doors to reduce theft and vandalism are available with the optional cab. Brake lights, conveniently located grab rails, back up lights and alarm also help ensure a safe work environment.

Complete Customer Support

Cat dealers offer services to help you operate longer with lower costs.

Your Cat dealer is ready to assist you with your purchase decision and everything after.

? Your Cat dealer can help you make detailed comparisons of the machines you're considering. How long do components last? What is the cost of preventive maintenance? What is the true cost of lost production? ? Look past initial price. Consider the financing options available as well as day-to-day operating costs. Many dealers offer services that can be included in the cost of the machine to yield lower equipment owning and operating costs over the long run. ? Smart equipment buyers plan for effective maintenance before buying equipment. Ask your Cat dealer about maintenance services before you make your purchase. Repair option programs guarantee the cost of repairs up front. Diagnostic programs such as Scheduled Oil Sampling and Technical Analysis help avoid unscheduled repairs. ? You will find nearly all parts at our dealer parts counter. In the rare case when we don't have a part in stock, our dealer network will find it and get it to you fast. ? Improving operating techniques can boost customer profits. Ask your Cat dealer about training videos, literature and other ideas to help you increase productivity. Caterpillar offers certified operator training classes to help you maximize the return on your machine investment. ? Your Cat dealer can evaluate the cost to repair, rebuild and replace your machine, so you can make the right choice. ? For more information on Cat products, dealer services and industry solutions, visit us at www.cat.com.


Convenient service points make routine maintenance quick and easy.

Grouped Service Points on the left side to help ensure proper maintenance

Easy access to service areas speeds up maintenance and ensures that routine service is performed on time. Ecology drains shorten service times and help prevent spills. Radiator cleanout access gives the operator the ability to clear away debris and other materials that build up around the radiator. Fuel water separator is easily accessible from the ground.

Extended Service Intervals Reduce Downtime, Operating Cost

? 500 hour engine oil changes ? 4000 hour hydraulic oil changes ? 12000 hour engine coolant changes

Diagnostics and Machine Monitoring via Electronic Technician

The dash cluster panel provides enhanced machine information and diagnostic capability, which allows faster servicing of the transmission and engine. Cat ET is a two-way communication tool that gives service technicians easy access to stored diagnostic data and lets them configure the machine parameters through the Cat Data Link.

O-Ring Face Seals

O-Ring face seals create a reliable connection and are used in all hydraulic circuits to minimize the possibility of oil leaks.

Separate Wiring Harnesses

This modular harness design provides simple disconnects for major machine repairs or rebuilds.
    •  Alternator, 95 ampere, sealed
    •  Backup alarm, reversing lights
    •  Batteries, maintenance free 750 CCA
    •  Electrical system, 24 volt
    •  Horn, electric
    •  Lights, stop and tail
    •  Motor, starting
    •  Product Link Ready
    •  Working lights
    •  Accelerator
    •  Control console, adjustable
    •  Gauge cluster (includes voltmeter, articulation, engine coolant temperature, air brake pressure and fuel level)
    •  Guard rails, operator station
    •  Hydraulic controls, load sensing (right/left blade lift, circle drive, centershift, sideshift, blade tip, front wheel lean & articulation)
    •  Indicator lights (includes high beam, LH & RH turn, low engine oil pressure, throttle lock, check engine, transmission filter bypass and check, centershift pin, brake air pressure, parking brake engaged, AccuGrade, auto shift)
    •  Key start/stop switch
    •  Meter, hour
    •  Power steering, hydraulic
    •  Seat, vinyl-covered static
    •  Seat belt
    •  Steering wheel, tilt, adjustable
    •  Storage area, cooler/lunch box
    •  Throttle, electronic control
    •  Air cleaner, dry type radial seal with service indicator and automatic dust ejector
    •  Air to air after cooler (ATAAC)
    •  Blower fan
    •  Brakes, oil disc, four-wheel air actuated
    •  Differential with lock/unlock
    •  Engine, Cat C7 with ACERT technology, diesel with automatic engine derate and idle control. Meets U.S. EPA Tier 2 and EU Stage II emission standards.
    •  Fuel water separator
    •  Muffler, under hood
    •  Parking brake, multi-disc, sealed and oil cooled
    •  Prescreener
    •  Priming pump, fuel, resiliently mounted
    •  Sediment drain, fuel tank
    •  Tandem drive
    •  Transmission, 8 speed forward and 6 speed reverse, power shift, direct drive with electronic shift control and overspeed protection
    •  VHP (Variable Horse Power)
  • Air cleaner, dry type radial seal with service indicator and automatic dust ejector
    • Air to air after cooler (ATAAC)
      • Blower fan
        • Brakes, oil disc, four-wheel air actuated
          • Differential with lock/unlock
            • Engine, Cat C7 with ACERT technology, diesel with automatic engine derate and idle control. Meets U.S. EPA Tier 2 and EU Stage II emission standards.
              • Fuel water separator
                • Muffler, under hood
                  • Parking brake, multi-disc, sealed and oil cooled
                    • Prescreener
                      • Priming pump, fuel, resiliently mounted
                        • Sediment drain, fuel tank
                          • Tandem drive
                            • Transmission, 8 speed forward and 6 speed reverse, power shift, direct drive with electronic shift control and overspeed protection
                              • VHP (Variable Horse Power)
                                • OTHER STANDARD EQUIPMENT
                                  •  Bumper, rear
                                  •  CD ROM Parts Book
                                  •  Circle drive slip clutch
                                  •  Cutting edges, 152 mm × 16 mm (6 in × 5/8 in) curved DH-2 steel
                                  •  Doors, Engine compartment
                                  •  Drawbar, 6 shoes with replaceable nylon composite wear strips
                                  •  Endbits, 16 mm (5/8 in) DH-2 steel
                                  •  Frame, articulated with safety lock
                                  •  Fuel tank, 305 L (80.6 gal)
                                  •  Ground level engine shutdown
                                  •  Link bar, 7 position
                                  •  Moldboard, 3658 mm × 610 mm × 22 mm (12 ft × 24 in × 7/8 in) blade with hydraulic sideshift and tip
                                  •  S·O·S ports, engine, hydraulic, transmission and cooling
                                  •  Toolbox with padlock
                                  •  Vandalism protection - including cap locks for hydraulic tank, radiator access cover, fuel tank, engine and transmission oil check/fill and lockable battery boxes.
                                • TIRES, RIMS, & WHEELS
                                  •  A partial allowance for tires on 229 mm (9 in) single piece rims is included in the base machine price and weight. A tire MUST be selected from the Mandatory Attachments section.
                                • A partial allowance for tires on 229 mm (9 in) single piece rims is included in the base machine price and weight. A tire MUST be selected from the Mandatory Attachments section.
                                  • ANTIFREEZE
                                    •  Extended Life Coolant to -35° C (-30° F)
                                  • Extended Life Coolant to -35° C (-30° F)
                                    • GUARDS
                                      •  Guard, transmission
                                    • OPERATOR ENVIRONMENT
                                      •  Air conditioner with heater
                                      •  Heater, cab
                                      •  CAB / CANOPY
                                      •  Seat, vinyl adjustable
                                      •  Seat, cloth, contour
                                      •  Fan, defroster, front window
                                      •  Fan, defroster, rear window
                                      •  Sun shade, rear
                                      •  Wiper/washer, rear
                                      •  Wipers, intermittent front
                                      •  Mirrors, dual inside
                                      •  Mirrors, outside mounted
                                      •  Power port, 12V accessory
                                      •  Radio ready entertainment
                                      •  Tachometer/Speedometer
                                      •  * Cab weights represent changes to Typically Equipped machine weights.
                                    • RIPPER/SCARIFIER
                                      •  Ripper/Scarifier, rear mounted
                                      •  Scarifier, mid mounted, V-type
                                    • LIGHTS
                                      •  Bar mounted, low, directional and headlights
                                      •  Cab and bar mounted, high, directional, headlights and work lights
                                    • POWER TRAIN
                                      •  Autoshift
                                    • OTHER ATTACHMENTS
                                      •  Product Link
                                      •  Snow Wing Mounting, frame-ready
                                      •  AccuGrade ARO
                                      •  Dryer, air
                                      •  Push plate, counterweight
                                      •  Tool kit
                                      •  Accumulator, blade lift
                                      •  Battery, extreme duty (1400 CCA)
                                      •  Ether, starting aid
                                      •  Heater, engine coolant, 220V
                                    • Product Link
                                      • Snow Wing Mounting, frame-ready
                                        • AccuGrade ARO
                                          • Dryer, air
                                            • Push plate, counterweight
                                              • Tool kit
                                                • Accumulator, blade lift
                                                  • Battery, extreme duty (1400 CCA)
                                                    • Ether, starting aid
                                                      • Heater, engine coolant, 220V
                                                        • HYDRAULICS
                                                          •  Pump, hydraulic, high capacity
                                                          •  Hydraulic arrangements with one or more additional hydraulic valves are available for rear ripper, mid-mount scarifier, dozer, snow plow and snow wing.
                                                        • BLADES, MOLDBOARDS
                                                          •  Blade, 4267 mm × 610 mm × 22 mm (14' x× 24" × 7/8")
                                                          •  Blade, front
                                                          •  Cutting edge, 203 mm × 19 mm (8" × 3/4"). For use with 14' blade
                                                          •  Endbits, overlay, reversible pair for use with 203 mm (8") cutting edges

                                                        Have a Question?

                                                        Signup to Al-Bahar Monthly newsletter and stay connected!

                                                        We respect your privacy and will never share or sell your information.
