Large Excavators

Caterpillar serves all regions of the world so we build many different configurations of hydraulic excavators. Your Cat® dealer has exact machine specifications available in your area to help you choose what will best meet your needs.

340D2 L Hydraulic Excavator

The 340D2 L delivers excellent productivity with low owning and operating costs and can be used in a wide range of applications making this machine extremely versatile. The 340D2 L features excellent reliability and durability even when working in the toughest jobs. Improved visibility combined with world class comfort levels ensures reduced fatigue and optimized performance levels. At the heart of the machines performance is a powerful Cat C9 ACERT engine, which boasts 208 kW (279 hp) combined with a smooth, precise, hydraulic system. This highly efficient design minimizes losses and permits fast hydraulic cycle times.

  • Specification Summary

  • Engine ModelCat® C9 with ACERT™ Technology
  • Net Flywheel Power208 kW
  • Bore112 mm
  • Stroke149 mm
  • Displacement8.8 L
  • Product Brochure

    Download

Product Details

Engine

Engine Model Cat® C9 with ACERT™ Technology
Net Flywheel Power 208 kW
Bore 112 mm
Stroke 149 mm
Displacement 8.8 L
Engine Power (ISO 14396) 209 kW
Low-Idle Speed (machine) All engine horsepower (hp) are metric.
Maximum Altitude (without derate) 2300 m
Maximum Torque (torque peak) @ 1,400 rpm The C9 ACERT engine meets U.S. EPA Tier 3, EU Stage IIIA, Japan 2006 (Tier 3) equivalent, and China Nonroad III emission standar
Net Power (SAE J1349/ISO 9249) 208 kW
Rated Speed (engine) Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler, and alte
Rated Speed (machine) Full engine net power up to 2300 m (7,546 ft) altitude (engine derating required above 2300 m [7,546 ft]).
Type Direct Injection with Turbocharger Aftercooler

Weights

Operating Weight 41500 kg
Note *6.5 m (21'4") HD Reach Boom, R2.8DB (9'2") stick, 600 mm (24") Double Grouser track shoes, 6.25 mt (6.9 t) counterweight.
Operating Weight - Long Undercarriage 38900 kg
Operating Weight - Long Undercarriage: Maximum Operating Weight* 41500 kg

Drive

Maximum Travel Speed 4.6 km/h
Maximum Drawbar Pull 300 kN

Hydraulic System

Swing System - Maximum Flow 265 L/min
Pilot System - Maximum Flow 40 L/min
Pilot System - Maximum Pressure 4000 kPa
Boom Cylinder - Bore 150 mm
Boom Cylinder - Stroke 1440 mm
Stick Cylinder - Bore 170 mm
Stick Cylinder - Stroke 1738 mm
DB Bucket Cylinder - Bore 150 mm
DB Bucket Cylinder - Stroke 1151 mm
Main System - Maximum Flow (each) 281 L/min
TB Bucket Cylinder - Bore 160 mm
TB Bucket Cylinder - Stroke 1356 mm

Service Refill Capacities

Fuel Tank Capacity 620 L
Cooling System 40 L
Engine Oil 41 L
Final Drive (each) 8 L
Hydraulic System (including tank) 410 L
Hydraulic Tank 175 L
Swing Drive 19 L

Swing Mechanism

Swing Speed 8.3 RPM

Key Features

A world class design combining excellent performance with low fuel consumption and top reliability.

Structures

340D2 L structural components and undercarriage are the backbone of the machine’s durability.

Undercarriage

With a heavy-duty high wide undercarriage, the machine can take full advantage of its fast implements. This wider and heavier undercarriage also improves lifting performance over the front and side of the machine.

Performance

High level of sustained production, improved performance, reliability and durability increase your productivity and lower your operating costs.

Engine and Hydraulics

A powerful Cat C9 ACERT engine that meets U.S. EPA Tier 3, EU Stage IIIA, Japan 2006 (Tier 3) equivalent, and China Nonroad III emission standards, combined with the highly efficient hydraulic system deliver excellent performance with low fuel consumption.

Maximum Versatility

A variety of work tools, including buckets, hammers, rippers are available for applications such as demolition, site clean-up, scrap processing, breaking up road surfaces and bedrock through Cat Work Tools.

Operation Station

The spacious cab features excellent visibility and easy-to-access switches. The monitor features a full?color graphical display that is easy to see and use. Overall, the new cab provides you with a comfortable working environment for maximum production and efficiency.

Engine

Powerful, reliable and economic.

Driving Unprecedented Performance with Lower Fuel Consumption

Emission Standards

The Cat C9 ACERT engine has been designed to meet U.S. EPA Tier 3, EU Stage IIIA, Japan 2006 (Tier 3) equivalent, and China Nonroad III emission standards. The engine incorporates proven robust components and precision manufacturing you can count on for reliable and efficient operation.

Isochronous Control

The Isochronous engine speed control improves fuel efficiency and reduces fuel consumption and noise levels by managing pump and engine speed.

Filtration System

The C9 ACERT engine features an improved 3-stage filtration system to ensure reliability even with low quality fuel.

Automatic Engine Speed Control

Automatic engine speed control is activated during no-load or light-load conditions to reduce engine speed – all to help minimize fuel consumption.

Low Sound and Vibration

The Cat C9 ACERT engine is built to run quietly with limited vibration, which contributes to improving your operator comfort.

Electric Fuel Priming Pump

Electric priming pump eliminates the need for manual priming and reduces the risk of fuel contamination by preventing unfiltered fuel from being backfilled during filter changes.

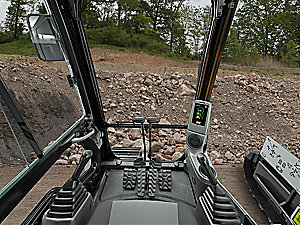

Operator Station

Ergonomically designed to keep you comfortable and productive all day long.

Joystick Control and Console

Low-effort pilot-operated joystick controls are designed to match your natural wrist and arm position for maximum comfort and minimum fatigue. The right and left joystick console can be adjusted to meet your individual preferences, improving overall comfort and productivity during the course of a long work day.

Windows and Wipers

All glass is affixed directly to the cab to maximize visibility, eliminating window frames. The upper front windshield opens, closes, and stores on the roof above the operator with a one-touch action release system. Pillar-mounted wipers increase your operator’s viewing area and offer continuous and intermittent modes.

Monitor

The LCD monitor is equipped with a warning lamp and buzzer for critical engine oil pressure, coolant temperature and oil temperature. Programmable in up to 42 languages to meet today’s diverse workforce, the monitor clearly displays critical information needed to operate efficiently and effectively.

Seat

The suspension seat provides a variety of adjustments to accommodate a wide range of operators preferences. All seats include a reclining back, upper and lower seat slide adjustments, and height and tilt adjustments to meet your operator needs for comfort and productivity.

Climate Control

Positive filtered ventilation with a pressurized cab is standard. Fresh air or re-circulated air can be selected with a switch on the left console.

Cab Structure and Mounts

The cab shell is attached to the frame with viscous rubber mounts, which dampen vibrations and sound levels while enhancing your operators’ comfort. Thick steel tubing along the bottom perimeter improves the cab’s resistance to fatigue and vibration.

Hydraulics

Cat hydraulics deliver power and precise control to keep material moving.

Hydraulic System

Hydraulic system pressure from the two hydraulic pump system delivers terrific digging performance and productivity.

Pilot System

An independent pilot pump enables smooth, precise control for the front linkage, swing, and travel operations.

Hydraulic Cylinder Snubbers

Snubbers are located at the rod-end of the boom cylinders and both ends of the stick cylinders to cushion shocks while reducing sound levels and extending component life.

Component Layout

The hydraulic system and component locations have been designed to provide a high level of system efficiency. The main pumps, control valves, and hydraulic tank are located close together to allow for shorter tubes and lines between components, reducing friction loss and pressure drops.

Hydraulic Cross-Sensing System

The hydraulic cross-sensing system utilizes each of two hydraulic pumps to 100 percent of engine power under all operating conditions. This improves productivity with faster implement speeds and quicker, stronger pivot turns.

Auxiliary Hydraulic Valve

Control circuits are available as attachments to improve versatility. They allow operation of high- and medium-pressure tools such as shears, grapples, hammers, pulverizers, multiprocessors, and vibratory plate compactors.

Boom and Stick Regeneration Circuit

Boom and stick regeneration circuits save energy during boom-down and stick-in operation to increase efficiency and reduce cycle times and pressure loss for higher productivity, lower operating costs, and increased fuel efficiency.

Hydraulic Filter

The encapsulated filter is mounted in an external chamber from the tank which minimizes contamination risk and extends hydraulic system life.

Structures

HDHW structural components, Heavy Duty High Wide carbody and undercarriage are the backbone of the machine’s durability.

Robotic Welding

Up to 95% of the structural welds on a Cat Excavator are completed by robots. Robotic welds achieve over three times the penetration of manual welds.

Heavy-duty High Wide Carbody Design and Dedicated Track Roller Frames

X-shaped, box-section carbody provides excellent resistance to torsional bending. Robot-welded track roller frames are press-formed, pentagonal units to deliver exceptional strength and service life.

HDHW Undercarriage

The heavy duty high wide (HDHW) and durable Cat undercarriage absorbs stresses and provides excellent stability. Additionally, the high ground clearance is ideal in rocky environments, bringing the carbody in a high position, less exposed to damage from rocks.

Long Undercarriage

The long undercarriage (L) maximizes stability and lift capacity. This long, wide and sturdy undercarriage offers a very stable work platform.

Tracks

The 340D2 L track links are assembled and sealed with grease to decrease internal bushing wear, reduce travel noise and extend service life lowering operating costs.

Rollers and Idlers

Sealed and lubricated track rollers, carrier rollers, and idlers provide excellent service life, to keep the machine in the field longer.

Counterweights

The 6.25 mt (6.9 t) and 8.45 mt (9.3 t) counterweights are a good choice for heavy lifting with long and heavy duty high wide undercarriage, counterweights are bolted directly to the main frame for extra rigidity.

Front Linkage

Designed for flexibility, high productivity, and efficiency in a variety of applications.

Heavy-Duty Front Linkage

The 6.5 m (21'4") heavy-duty (HD) reach boom is reinforced, to be used in the severest applications for maximum digging capability. The boom is made of high-tensile-strength steel using a large box-section design with interior baffle plates and an additional bottom guard for long life and durability. Booms and sticks are stress-relieved for added durability.

The HD reach boom has two stick options available to meet all your application requirements:
  • The 3.2 m (10'6") is a versatile option that will meet the needs for most construction applications.
  • The 2.8 m (9'2") stick is best used with high-capacity buckets in trenching and excavation applications.

Mass Boom Front Linkage

The mass excavation (ME) front linkage is designed to maximize machine performance through superior digging forces and a larger bucket capacity. The 6.18 m (20'3") mass excavation boom is reinforced with a large cross section and internal baffle plates for long life and durability.
  • The 2.55 m (8'4") stick is designed for large earth moving applications.
  • The 2.15 m (7'1") stick is designed for extra digging and lifting forces with shorter reach.

Safety

Features to help protect you day in and day out.

Caterpillar builds safety into every machine, allowing operators and service technicians to get home safely everyday.

Built with similar safety features like our standard machine, the 340D2 L accumulator high-pressure oil is discharged after key-off to minimize risk during servicing.

Clear View

Optional rearview camera systems improve rearward and right-hand-side visibility, giving a clear view to the back side of the machine.

This not only improves job site safety, but also enhances productivity and helps to maintain the asset value of your machine.

Hydraulic Lockout Lever

The standard hydraulic lockout lever isolates all hydraulic and travel functions in the lowered position. It is specifically designed to not allow the operator to leave the cab without first lowering it.

Safe Platform

Anti-skid plating with countersunk bolts reduces the potential for slippage and trip hazards, providing a safe platform for all routine service and maintenance needs.

Firewall

A full length firewall separates the engine from the hydraulic pump and offers protection in the event of an incident.

Three Circuit Breakers and Battery Disconnect Switch

Three circuit breakers protect critical electrical components to increase machine uptime.

A battery disconnect switch helps to deter theft by isolating the battery and enhances safety when servicing the machine.

Shut-off Switch

Ground level shut-off switch stops all fuel to the engine when activated and shuts down the machine.

Work Tools

Tools to make you productive and profitable.

Each Cat work tool is designed to optimize the versatility and performance of your machine. An extensive range of buckets, compactors, grapples, multi-processors, rippers, crushers, pulverizers, hammers and shears is available for your 340D2 L.

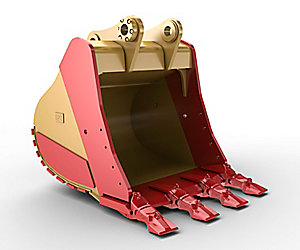

Buckets

Cat buckets and Cat Ground Engaging Tools (GET) are designed and matched to the machine to ensure optimal performance and fuel efficiency.

General Duty Buckets (GD)

General Duty buckets are designed for use in low impact, lower abrasion materials such as dirt, loam, and mixed compositions of dirt and fine gravel.

Heavy Duty Buckets (HD)

Heavy Duty buckets are designed for a wide range of impact and abrasion conditions including mixed dirt, clay and rock. This bucket style is recommended for trenching work, and for the general contractor working in a variety of different applications.

Severe Duty Buckets (SD)

Severe Duty buckets are designed for higher abrasion conditions such as shot granite. When compared to the Heavy Duty bucket, wear bars and wear plates are substantially thicker and larger and add protection against abrasion and gouging wear.

Rip and Load Package

Caterpillar offers a unique Rip and Load arrangement for hydraulic excavators working in quarries that are specialists in aggregates production. Quick couplers, Ripper tines and Rock buckets that are fully compatible with the Cat Excavator range will deliver excellent ripping and loading performance. Minimum tool change times will help match ripping, loading and rock production needs. Ripper-to-bucket changes are made hydraulically in less than 35 seconds. This gives the operator complete flexibility to continually adjust ripping, sorting and loading work.

E Series Hammers

Cat E Series Hammers feature a rugged design for extended durability and solid reliability, and features such as automatic shut-off, silencing and vibration buffering make them easy on the operator. The E Series Hammers are designed to be field serviceable with common hand tools to keep them operating at peak performance.

Demolition and Sorting Grapple

The demolition and sorting grapple means considerable savings in terms of transportation and dumping costs as well as manpower, as you can now sort out demolition debris at source and transport it separately to recycling plants.

Service and Maintenance

Simplified service and maintenance features save you time and money.

Ground-Level Service

The design and layout of the 340D2 L was made with the service technician in mind. Most service locations are easily accessible at ground level to allow service and maintenance to get completed quickly and efficiently.

Air Filter Compartment

The air filter features a double-element construction for superior cleaning efficiency. When the air cleaner plugs, a warning is displayed on the monitor screen inside the cab.

Pump Compartment

A service door on the right side of the upper structure allows ground-level access to the pump, pilot filter, and water separator with primary fuel filter.

Radiator Compartment

The left rear service door allows easy access to the engine radiator, oil cooler, air-to-air-aftercooler, water separator, second and third fuel filters, and fuel cooler. A reserve tank and drain cock are attached to the radiator for simplified maintenance.

Greasing Points

A concentrated remote greasing block on the boom delivers grease to hard-to-reach locations on the front.

Fan Guard

The engine radiator fan is completely enclosed by fine wire mesh, reducing the risk of an accident.

Diagnostics and Monitoring

The 340D2 L is equipped with S?O?SSM sampling ports and hydraulic test ports for the hydraulic system, engine oil, and for coolant.

Wiring Harness and Routing

Industrial-grade electrical wiring (SXL type) resists dust, water, and vibration during the entire life of the machine. The wires are color coded and numbered to facilitate troubleshooting in case of an issue. The navy-type electrical braiding over the wiring is flame resistant and properly secured by bolts, adding extra protection to the electrical system.

Complete Customer Support

Cat dealer services help you operate longer with lower costs.

Product Support

You will find nearly all parts at our dealer parts counter. Cat dealers utilize a worldwide computer network to find in-stock parts to minimize machine downtime. You can also save money with our line of remanufactured components.

Machine Selection

Make detailed comparisons of the machines you are considering before you buy. What are the job requirements, machine attachments, and operating hours? What production is needed? Your Cat dealer can provide recommendations.

Maintenance Services

Repair option programs guarantee the cost of repairs up front. Condition monitoring services and diagnostic programs such as scheduled oil sampling, coolant sampling, and technical analysis help you avoid unscheduled repairs.

Customer Support Agreements

Cat dealers offer a variety of product support agreements and work with customers to develop a plan the best meets specific needs. These plans can cover the entire machine – including attachments – to help protect the customer’s investment.

Replacement

Repair, rebuild, or replace? Your Cat dealer can help you evaluate the cost involved so you can make the right choice.
  • ENGINE
    •  Diesel engine Cat C9 ACERT
    •  2300 m (7,546 ft) altitude capability with no deration
    •  80 amp alternator
    •  Air intake heater
    •  U.S. EPA Tier 3, EU Stage IIIA, and China Nonroad III emission standards
    •  High power version with Power Management Mode
    •  Waved fin radiator with enough space for cleaning operation
    •  Radial seal air filter
    •  Automatic engine speed control
    •  Water separator in fuel line
    •  Two (2) micron fuel filters
    •  Two speed travel
    •  Air prefilter
  • CAB
    •  Joystick without tool control system
    •  Floor mat
    •  Windshield washer
    •  Cab mirrors
    •  Pressurized cab
    •  Mechanical suspension seat
    •  Positive filtered ventilation
    •  Adjustable armrest
    •  Seat belt, retractable (51 mm [2 in] or 76 mm [3 in] width)
    •  70/30 split front windshield
    •  Laminated upper front windshield and tempered other windows
    •  Sliding upper door window
    •  Openable front windshield with assist device
    •  Openable roof hatch
    •  Removable lower windshield, within cab storage bracket
    •  Pillar mounted upper windshield wiper and washer
    •  Bi-level air conditioner (automatic) with defroster (pressurized function)
    •  Full color and full graphic LCD display with warning, filter/fluid change, and working hour information
    •  Control lever joysticks, seat integrated
    •  Neutral lever (lock out) for all controls
    •  Travel control pedals with removable hand levers
    •  Two stereo speakers
    •  Radio mounting
    •  Beverage holder
    •  Coat hook
    •  Interior lighting
    •  Ashtray and lighter
    •  Rear window, emergency exit
    •  Capability to install two additional pedals
    •  Bolt-on FOGS (Falling Objects Guarding System) capability
    •  Sun screen
    •  Travel control pedals with removable hand levers
  • ELECTRICAL
    •  Circuit breaker
    •  Adopt Cat data link with capability of using E.T.
    •  Electric Refueling Pump with auto shut off switch
  • HYDRAULIC
    •  Hydraulic main pump
    •  Regeneration circuit for boom and stick
    •  Capability of installing stackable valves for main valve
    •  Capability of installing additional auxiliary pump and circuit
    •  Capability of installing boom lowering control device and stick lowering check valve
    •  Capability of installing Cat Bio hydraulic oil
    •  Boom lowering device for back up
    •  Boom drift reducing valve
    •  Stick drift reducing valve
    •  Reverse swing damping valve
    •  Automatic swing parking brake
    •  High performance hydraulic return filter
  • Hydraulic main pump
    • Regeneration circuit for boom and stick
      • Capability of installing stackable valves for main valve
        • Capability of installing additional auxiliary pump and circuit
          • Capability of installing boom lowering control device and stick lowering check valve
            • Capability of installing Cat Bio hydraulic oil
              • Boom lowering device for back up
                • Boom drift reducing valve
                  • Stick drift reducing valve
                    • Reverse swing damping valve
                      • Automatic swing parking brake
                        • High performance hydraulic return filter
                          • SECURITY
                            •  Caterpillar one key security system
                            •  Door locks and cap locks
                            •  Signaling/warning horn
                            •  Mirrors, rearview (frame – right, cab – left)
                            •  Secondary engine shutoff switch
                            •  Capability to electrically connect a beacon
                          • Caterpillar one key security system
                            • Door locks and cap locks
                              • Signaling/warning horn
                                • Mirrors, rearview (frame – right, cab – left)
                                  • Secondary engine shutoff switch
                                    • Capability to electrically connect a beacon
                                      • LIGHTS
                                        •  Working light, storage box mounted
                                        •  Interior lighting
                                      • Working light, storage box mounted
                                        • Interior lighting
                                          • UNDERCARRIAGE
                                            •  Grease Lubricated Track GLT2, resin seal
                                            •  Idler and center section track guiding guards
                                            •  Towing eye on baseframe
                                            •  Heavy duty bottom guard
                                            •  Track shoes: – 600 mm (24") double grouser shoe – 700 mm (28") triple grouser shoe
                                          • GUARDS
                                            •  Full length track guiding guard (two pieces)
                                          • OTHER STANDARD EQUIPMENT
                                            •  Counterweight (6.25 mt, 6.9 t)
                                          • CAB
                                            •  12V-10A power supply
                                          • HYDRAULIC SYSTEM
                                            •  Boom and stick high pressure lines
                                          • LINKAGE
                                            •  Mass boom – 6.18 m (20'3"): – M2.55TB stick 2.55 m (8'4") – M2.15TB stick 2.15 m (7'1")
                                            •  Heavy duty reach boom – 6.5 m (21'4"): – R2.8DB stick 2.8 m (9'2") – R3.2DB stick 3.2 m (10'6")
                                            •  Bucket linkage: – DB-Family (with or without lifting eye) – TB-Family (with or without lifting eye)
                                            •  Arctic package
                                          • Mass boom – 6.18 m (20'3"): – M2.55TB stick 2.55 m (8'4") – M2.15TB stick 2.15 m (7'1")
                                            • Heavy duty reach boom – 6.5 m (21'4"): – R2.8DB stick 2.8 m (9'2") – R3.2DB stick 3.2 m (10'6")
                                              • Bucket linkage: – DB-Family (with or without lifting eye) – TB-Family (with or without lifting eye)
                                                • Arctic package
                                                  • OTHER OPTIONAL EQUIPMENT
                                                    •  Starting kit, cold weather
                                                    •  Electric refueling pump with auto shut off switch
                                                    •  Counterweight (8450 kg/18,629 lb) with lifting eye
                                                    •  Falling object guards (FOGS)
                                                  • Starting kit, cold weather
                                                    • Electric refueling pump with auto shut off switch
                                                      • Counterweight (8450 kg/18,629 lb) with lifting eye
                                                        • Falling object guards (FOGS)
                                                          • TECHNOLOGY
                                                            •  Product Link™
                                                          • Product Link™

                                                            32 Similar Products Available in Used

                                                            View
                                                            call_back_image

                                                            "Call Back Option available only for UAE, Bahrain, Kuwait, Oman and Qatar."







                                                            Have a Question?

                                                            Signup to Al-Bahar Monthly newsletter and stay connected!

                                                            We respect your privacy and will never share or sell your information.
