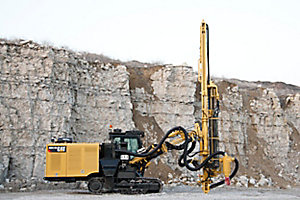

Carousel Rod Changer
Fast. Strong. Dependable.
To improve your overall productivity, our new carousel rod changer significantly reduces rod change time. Additionally the carousel is supported by a sturdy feed and the extension boom allowing for large pattern coverage so fewer set ups are required. Unlike linear alternatives, our carousel rod changer weighs less and holds more rods, allowing the boom extension to reach further and drill deeper while maintaining stability. The feed and carousel rod changer can accommodate multiple lengths and diameters of drill steel.Sturdy Boom and Feed Support the Carousel Rod Changer
- The 2.4 m (8 ft) boom extends an additional 0.9 m (3 ft) for larger pattern coverage with fewer set ups
- The boom swing capability is 9° L to 29° R for wide pattern coverage
- Heavy-duty boom is constructed of thick square tubing with steel plate reinforcements in key areas to add strength
- Feed table is 2.7 m (9 ft) with a 0.9 m (3 ft) extension. It resists torsion and thrust loads due to high strength steel channels with diagonal internal bracing.
- A new, patented, hose tensioning method keeps hoses on the drum, sheaves are used to prolong long hose life and a feed chain auto-tensioner feature reduces adjustment time
- Feed wear pads are replaceable with patent pending adjusters
- Planetary gearbox feed drive is capable of 4354 kg (9,600 lb) feed force and 36.9 mpm (121 fpm) speed
- LED lighting on the feed illuminates the carousel and hole site for around the clock drilling
Additional Features
- Six rod carousel
- Drill steel diameters 51 mm, 60 mm and 68 mm
- Drill steel lengths 3.66 m or 4.27 m (12 or 14 ft) with a 6.1 m (20 ft) starter rod
- Deep multi-pass hole depth to 31.1 m (102 ft)
- Unique gate design always keeps a rod in position; ready to load
- Multiple functions are run simultaneously to save process time
- Heavy-duty, dual rod grippers assist with rod changes and are sized to last
- Patented breakout wrench system, used in conjunction with the dual rod grippers, helps break loose stubborn joints, saves time and eliminates damage to centralizers
- Precise positioning function indexes and locks, eliminating the need for troublesome switches and sensors that are failure prone due to the elements and vibration
- Indexing the rods allows for even wear and longer life of drill rods
- Corrosion resistant and self-lubricating pivot points eliminate manual lubrication
Rock Drills
Reliable. Durable. Low operating cost.
Standard on the MD5150 is the HPR5128 hydraulic powered percussion rock drill rated at 28 kW (37.5 hp) output energy with dual hydraulic variable rotation motors producing 1898 N?m (1,400 lbf-ft) torque.Reliable Performer
Low cost of ownership and reliability are yours with renowned Cat® Rock Drills. Building on a legacy of simplistic power, these drills have long life expectancy and are field serviceable. This combination of robust design and easy maintenance means more hours of reliable, low-cost operation. For added efficiency, the pistons are matched to the cross section of the rod so the wave form is properly matched for maximum energy transfer.Durable Design
A simple design coupled with high strength materials yields exceptional durability.
- Having only half of the components of competitive models, there are fewer internal parts to wear.
- There are four major housings bolted together with high strength flanges eliminating troublesome long tie rods.
- Long life alloy bushings
- Fast response accumulators provide a smooth and efficient hydraulic oscillation
- Long leakage paths of the oscillator bearings yield high volumetric efficiency
Owner Serviceable
Cat Rock Drills are so simple that owner serviceability is a viable alternative and cost savings.
- Other models require downtime for round trip transportation to a clean room environment
- Only their OEM service technicians can perform the maintenance and repairs
- All maintenance and rebuilds can be done in your shop and some maintenance can even be done with the rock drill still mounted to the feed.
- Accumulator assemblies may be replaced in the field
- Troubleshooting is easy since there are half the components of other drills
New Automated Rock Drill Lube System
Peak performance is sustained when your rock drill is kept lubricated, cool, and automatically maintained with our new Auto Rock Drill Lube System. Operators no longer have to stop drilling to manually grease the rock drill every two hours.
- Saves more than forty hours a year over manual greasing
- Components reach full life expectancy at proper lube intervals
- Grease reservoir stores supply for up to five 8-10 hour shifts
- A timer board cycles the grease pump throughout the day eliminating maintenance time
- High and low pressure conditions are continually monitored through the display screen
Power Group
Finish first with the most power and air in-class.
More Power. Big Air.
The MD5150 power group delivers fast cycle times and maximum efficiency due to the combination of top of class air capacity, engine horsepower and an over sized cooler to keep all systems operating at optimal temperatures.Engine
MD5150 powers through hard rock with its’ Cat C11 Tier 3 engine at 287 kW (385 hp) @ 1,800 rpm. The six (6) cylinder engine is electronically controlled, turbocharged, and water-cooled. Fuel conservation, resulting in lower operating cost, is achieved with three speed engine throttle control.Additional Engine Features
- Engine throttle range - 1,000 rpm, 1,500 rpm and 1,800 rpm
- Altitude before derating 2286 m (7,500 ft)
- Cat dual air filter elements
- Fuel tank 598 liter (158 gal)
- Top-fill oil receiver
- Starter is on right hand side
- Pumps are driven off of the cam tops
Compressor
MD5150 has the largest compressor available, allowing for maximum flushing power.
- High pressure rating 15.1 m³/min (534 cfm) @ 9.6 bar (140 psi) gauge
- Reliable rotary screw-type compressor
- Directly driven gear ratio
- Air filters are common to the engine
Cooler
Highly efficient, the new oversized design and ATAAC side by side arrangement ensures all systems are properly and efficiently cooled.
- 52° C (125° F) ambient temperature
- Proportional controlled fan
- Easy troubleshooting and cleaning of the coils
- Recirculation of hot air is limited by baffles
Cab Safety
Loaded.
Keeping Operators Safe
MD5150 offers a cab with superior safety features from the numerous shutdown methods and a ROPS/FOPS certified cab to responsive controls that minimize fatigue. The cab front window allows for egress, providing a second exit in case of emergency. Because, at the end of the day we all want to go home safely.Loaded with Safety Features
- High visibility with 3.8 m2 (41.76 ft2) tinted safety glass windows
- Slim structure members minimize visual obscurity
- Skylight provides excellent visibility of the drill string and has sliding sunshade
- Mirrors and high-resolution cameras assist in moving the machine
- High resolution monitor for Smart Drill Monitoring System
- Operational lock-out lever in cab seat prevents engine start
- Ground level shutdowns
- Tram control by lever and foot pedal
- To limit slippage, easy-grip pedals and footrest are rubber covered
- Heavy duty handles
- Fire extinguishers
- Large monitor with integrated rearview camera display
- Three speed window wipers

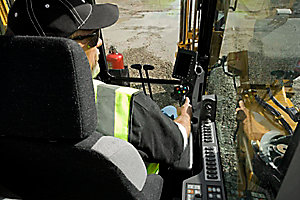

Safety Through Controls
- Dual joystick controls are ergonomic and seat-mounted
- For heightened precision, the position and shape of the CANbus joysticks match the operator’s natural expectations
- Thread lube system is operated with a foot switch

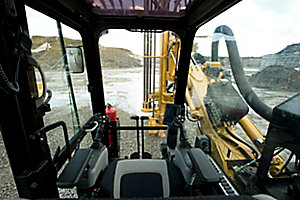

Cab Comforts
Plentiful.
Cab
Throughout your shifts, the Cat 349E cab is a quiet and comfortable work environment for relaxed drill operation. It’s pressurized so sound levels are less than 80 dB(A) and it’s isolator mounted to minimize vibration.Features
- Climate control system maintains a consistent temperature
- Air is filtered to the operator
- Windows have defrost/defog air
- Windows open for fresh air and communication with others
- Operators seat is adjustable six ways
- Armrests, controls and switches are ergonomic
- Easy access to cab air filter and fuse box
- AM/FM Radio IPOD/MP3 player ready
- Communications radio ready
- Easy to clean finishes
- Deep storage space and two cup holders
- Two auxiliary power outlets 12V
Smart Drill Monitoring System
Developed to assist novice drillers, the smart drill system increases your overall drill production in difficult drilling conditions. It’s a hydraulically operated drilling control system that monitors changes in rock formation and adjusts the impact and feed pressure to the hardness of the rock. It incorporates anti-jam, anti-plunge, and anti-plug and increases overall life of drill string.Solid Structures
Get long-lasting reliability and performance.
You can expect a long life due to the structural integrity of our frames and the robust Cat 315C undercarriage. Despite the unyielding demands of drilling and navigating rough terrain, our structures are continually proven reliable. The frame supports the upper machine weight plus the added hammer pressure of percussive drilling, yet the MD5150 remains extremely maneuverable thanks to its low center of gravity, high ground clearance, and independent track oscillation.Frame
You can rely on a maintenance free and long lasting base for your drill because each frame is designed and thoroughly inspected in-house. All weld inspections are certified to CWI or CAWI standards.
- High quality steel
- Welds are magnetic particle inspected
- Vibratory stress tested
- Designed to our best-built standards
Undercarriage
Get there faster on a Cat 315C Undercarriage. You can quickly and precisely position the MD5150 at drill patterns thanks to the agility of independent track oscillation. Further, the best-built design and high ground clearance allow you to confidently tram rough terrain between benches.
- Highly Maneuverable: - Dual tram speed 4.0 km/h (2.5 mph) - Gradeability 35° - Ground clearance 406 mm (16 in) - Wide triple grousers 380 mm (15 in) - Oscillation ±11°; hydraulic cylinder controlled
- Durable: - Robust strut design is resistant to failures - Easy installation and removal of shoes - Rebuildable
- Cat Grease Lubricated Track (GLT):
- Each track joint is sealed to retain the grease between the pin and bushing - Improves internal wear life by over 25% than sealed track - Track noise is reduced because there is no metal to metal contact between the pin and bushing - The grease lubricant prevents frozen or seized track joints - Overall system wear life is enhanced due to sprocket wear improvements
Dust Collection
Contain it - quickly and quietly.
Powered to clean holes up to 152 mm (6 in), the MD5150 dry dust collection system is efficient, quiet and it consumes less power than traditional dust collectors. The heavy-duty system effectively manages rock fragments and dust yet is also easy to clean and service.Features
- High capacity working pressure is 7 bar (100 psi)
- The suction fan design limits the power requirement to correspond the application
- Easy top access to filters and air valves
- The sealed pick up pot prevents cuttings from escaping above the hole
- Vacuum generated air flow carries the materials
- Pivoting separator is feed mounted and separates cuttings from dust
- Abrasive resistant dust hose is 152.4 mm (6 in)
- Filtration area is 16 m2 (172 ft2) and separates the solid particles from the clean air
- Timed cleaning is continual through reverse-pulses of air
Technology
That makes life easier.
To assist you in your operations and equipment management, we provide numerous technology products that aid in utilization, tracking, planning as well as equipment maintenance and performance monitoring.Product Link™
Reduce your owning and operating costs by maximizing your utilization. Product Link achieves this through remote fleet monitoring, asset tracking, maintenance management which are reported via satellite and cellular networks. This system allows you to monitor daily fuel usage, route fuel trucks for maximum efficiency and track equipment utilization day by day, hour by hour.Cat Monitoring System
The MD5150 is equipped with the Cat Monitoring System (Cat MS) which keeps watch over the health of your engine. It monitors critical engine system functions and will derate the engine to protect itself from damage if needed. When critical conditions arise, the Cat MS monitor displays warning lights and sound audible alarms.Automatic Lubrication Systems
Peak performance is sustained when your components are kept lubricated, cool, and automatically maintained with our new Automatic Lube Systems. A tremendous time saver for you, the MD5150 is equipped with two systems that keep the undercarriage, boom, feed, and rock drill greased at ideal intervals.Smart Drill Monitoring System
Developed to assist novice drillers, the smart drill system increases your overall drill production when drilling in difficult conditions. It monitors changes in rock formation and adjusts the impact and feed pressure needed based on the hardness of the rock. It incorporates anti-jam, anti-plunge, and anti-plug and increases overall life of drill string.Electrical System - Cat (ET) Electronic Technician
For easy troubleshooting of the entire machine, the Cat MD5150 Track Drill includes the Cat ET System this is familiar to and favored by service technicians around the world.Drill More. Service Less.
Easy access. Simple. Cost effective.
With the maintenance friendly designs, your service access is safe and efficient. Servicing a Cat Track Drill is very straightforward thanks to well-organized electrical/hydraulic arrangements and logically located components which contribute to its valued simplicity and ease of maintenance. Systems are designed for durability and easy maintenance so your equipment life cycle is long, operating costs are lower and Cat drills maintain a high resale value.Features
- Cat ET Software is used to troubleshoot the equipment
- Enclosure has gull-wing doors lifted with gas springs
- Interior and exterior LED lighting throughout the drill and under the canopy
- The canopy can be completely removed via four pinning points and lifting lugs
- Electric pump for filling hydraulic tank
- Grease reservoir is easily accessible for changing coupling grease
- Pumps and valves are conveniently arranged for service
- Service areas are designed with three points of contact for safe access
- Hose routings include bulkhead clamps to allow for shorter hose runs and easier replacements

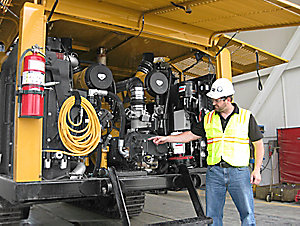

Walk-in Service Station
To further assist you with troubleshooting and maintenance, the MD5150 has a unique walk-in service station inside of the drill enclosure. The water tank swings out allowing covered access to major service points for the engine, compressor, air conditioning, valves for the boom and water injection systems and more. A boom-mounted camera constantly monitors the front of the drill so you have constant visibility when working inside the service center.Supported by World-class Cat Dealer Network
From helping you choose the right machine to keeping your equipment up and running, your Cat dealer provides the best in sales and service.
- Preventive maintenance programs are available to maximize your return on investment, achieve full equipment life cycle, and managing costs
- Guaranteed maintenance contracts help you forecast your businesses needs and strategically plan for service and parts expenses
- Best-in-class parts availability because Cat dealers understand the value of your uptime
- Operator training to help boost your productivity
- Genuine Cat Remanufactured parts are available
Safety
Built-in protection.
Loaded with numerous safety features, the Cat Track Drills are designed to provide a safe working environment for operators as well as maintenance and service technicians.MD5150 Track Drill Safety Features
- Non-slip, heavy duty steps and handles are strategically placed
- Three points of contact at all steps
- Quick and easy access to service points
- Four external safety shutdowns at ground level
- Two cameras and two viewing monitors
- Mirrors and high-resolution cameras to assist in safely moving the machine
- LED lighting inside and out, on the feed and in all service compartments
- Flashing motion beacon and alarm
- Slideout battery tray for easy change out
- Fire extinguishers
Walk-in Service Station Safety Features
- Tramming is locked out
- Covered access to major service points
- Camera on the feed allows for total visibility
Cab Safety Features
- ROPS/FOPS cab
- High visibility with 3.8 m2 (41.76 ft2) of tinted safety glass
- Slim structure members minimize visual obscurity
- Skylight allows viewing the top of the feed and has a sliding sunshade
- Mirrors and high-resolution cameras assist in safely moving the machine
- High resolution monitor for Smart Drill Monitoring System
- Operational lock-out lever in cab seat prevents engine start and operation
- Ground level shutdowns
- Tram control by lever or foot pedal
- Easy-grip pedals and footrest are rubber covered
- Heavy duty handles
- Fire extinguishers
- Three speed window wipers
Operator Training for Safety
- High quality materials and trainers for operation, maintenance, and service
- Classroom style training available
- Hands-on training with your local Cat dealer
Sustainability
For generations to come.
To increase efficiency and productivity for you, Cat Drill designs leverage technology and innovations that help to minimize the environmental impact of mining. We strive to provide products, services and solutions that use our natural resources wisely.MD5150 Sustainability Features
- Fuel economy is achieved with three speed throttle control
- Product Link for optimum fleet management
- Smart Drill Monitor automatically adjusts power to the rock condition requirements
- Auto lube systems are clean and efficient
- Remanufactured components are available
- Major components can be rebuilt
