Medium Dozers(Non Current)

From large to small, mining to finishing work, you are certain to find a Cat® Dozer to match your needs. We offer several configurations and special custom packages to meet your specific needs.

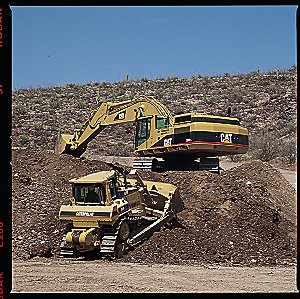

D6R XL Track-Type Tractor

The D6R's durable construction is made for tough working conditions. It keeps material moving with the reliability and low operating costs you expect from Cat machines.

  • Specification Summary

  • Engine Model3306 T
  • Flywheel Power130 kW
  • Maximum Flywheel Power148 kW
  • Displacement10.5 L
  • Flywheel Power - Power Shift130 kW

Product Details


Engine Model 3306 T
Flywheel Power 130 kW
Maximum Flywheel Power 148 kW
Displacement 10.5 L
Flywheel Power - Power Shift 130 kW


Operating Weight 19200 kg
Operating Weight Power Shift 19000 kg
Operating Weight Power PSDS 19200 kg


Blade Type SU, A, PAT
SU-Blade Width 3.26 mm
A-Blade Width 3.78 mm
Angle Straight Blade Width 4.16 m


1.0 Forward 3.9 km/h
2.0 Forward 6.8 km/h
3.0 Forward 11.2 km/h
1.0 Reverse 4.8 km/h
2.0 Reverse 8.5 km/h
3.0 Reverse 14.7 km/h


Shoe Type Single grouser
Width of Shoe 560 mm
Shoes/Side 41
Ground Clearance 383 mm
Track Gauge 1.88 mm
Track on Ground 2820 mm
Ground Pressure 58.97 kPa
Track Rollers/Side 7

Service Refill Capacities

Fuel Tank 383 L
Cooling System 74 L
Engine Crankcase 28 L
Power Train 155 L
Final Drives (each) 14 L
Hydraulic Tank 76 L


Weight* 1135 kg
Oil Capacity 67 L
Winch and Bracket Length 1200 mm
Winch Case – Width 975 mm
Increased Tractor Length – STD 517 mm
Drum Diameter 260 mm
Drum Width 254 mm
Flange Diameter 330 mm


Height 2380 mm
Height ROPS/Canopy 3190 mm
Overall Length Basic Tractor (with Drawbar) 4.08 mm
Overall Length with Blade 5.71 m


Type Parallelogram
Number of Pockets 3
Overall Beam Width 2202 mm
Maximum Clearance Raised (under tip, pinned in bottom hole) 511 mm
Maximum Penetration 500 mm

Power Train


Turbocharged 3306 Diesel Engine

Turbocharged 3306 diesel engine delivers plenty of power for quick response and big loads.

Large Displacement

The 3306 has large displacement, high torque rise and low rpm rating for low stress, long life.

High Torque Rise

High torque rise offers superior lugging capabilities to keep moving through tough spots without downshifting.

Direct Fuel Injection

Direct fuel injection precisely meters fuel for maximum productivity per unit of fuel.

Good Weight-To-Horsepower Ratio

Good weight-to-horsepower ratio allows faster loading, bigger loads and shorter cycle times.

Planetary Powershift Transmission

Planetary powershift transmission has 3-speeds forward and 3-speeds reverse and utilizes large diameter, high-capacity, oil-cooled clutches.

Torque Divider

An exclusive Caterpillar designed torque divider allows the engine to respond quickly to varying work loads.

Torque Converter

The torque converter shields the driveline from sudden torque shocks.

Cooling System

Superior cooling in the most demanding work conditions.

Advanced Modular Cooling System

Advanced Modular Cooling System (AMOCS) utilizes an exclusive two pass cooling system and increased cooling surface to provide a more efficient heat transfer system than conventional systems.

Two Pass Cooling System

Two pass cooling system circulates coolant from the sectioned bottom tank up through one side of the cooling element and down through the other side returning it to the bottom tank.

Caterpillar Extended Life Coolant

Caterpillar Extended Life Coolant is now standard in all D6R tractors. This coolant can double the Cat engine coolant life and allow for longer intervals between coolant changes when Cat extender solution is used at 3000 hours.

Cooling Elements

The cooling elements are individual core modules that are connected to a sectioned bottom tank. There are nine steel fins per inch, brass tube construction within each core and no top tank to remove.

Servicing AMOCS

The servicing of the AMOCS can be performed without tilting the radiator guard. There is no need to remove or replace a major component as on single core radiators. Each core module can be replaced individually, saving considerable cost and repair time.


The Caterpillar elevated sprocket undercarriage arrangements allow optimized balance for the best possible performance in each application.

Final Drives

Final drives and associated power train components are raised above the work area - isolating them from ground-induced impact loads, as well as implement and roller frame alignment loads - extending power train component life.

Sprocket Position

The sprocket position keeps sprocket teeth, bushings and final drives away from the abrasive materials and moisture - resulting in longer final drive gear and seal life.

Heavy-Duty Sealed and Lubricated Track

The heavy-duty sealed and lubricated track is designed for superior track life. A wider bushing strap provides improved bushing retention and resistance to bore stretching and cracking.

High Flange Improved Track Rollers

High flange improved track rollers (optional) combined with center or full length roller guard attachments greatly improve track guiding for demanding side slope or impact conditions.

Rotating Bushing Track

Rotating bushing track (optional) is a sealed and lubricated system which includes four track seals per joint, non-restrained floating bushings, longer track pins, redesigned track links and a unique pin retention system.


The D6R XL undercarriage delivers unmatched performance in general dozing applications.

Heavy-Duty Track Link

Heavy-duty track link is standard on all D6R configurations.

Power Angle and Tilt Blade

The inside mounted PAT Blade is now a factory installed option for both the XL and IG undercarriage arrangements.


To accommodate the C-frame push arms, the following track shoes are offered.
  • 22" MS (41 sec) Offset
  • 22" MS (41 sec) Offset Trapezoidal
  • 22" MS (41 sec) Offset RBT

Rear-Mounted Attachments

Rear-mounted attachments are required to ensure optimum balance and performance.

Work Tools

Caterpillar work tools include a choice of dozers, rippers and winches designed for efficient, high production.


Choose from the S, SU or A blade for optimum production.


The multi-shank parallelogram ripper lets you choose up to three shanks, depending on job conditions.


A single lever control actuates both clutch and brake functions to improve operator efficiency. A separate lever is used for freespool operation.

Load Sensing Hydraulics

Adjusts attachment and hydraulic power to increase both operator and machine efficiency.

Hydraulic Power Requirements Continually Monitored

Load-sensing hydraulics utilize a feedback loop from the control valve to the hydraulic pump to continually monitor the hydraulic power requirements of attachments.

Lower Pump Requirements

Lower pump requirements can reduce engine power requirements for the hydraulics, making more drawbar power available for increased machine production, higher operator efficiency and increased fuel efficiency.

Operator's Station

Comfort and convenience designed into the control station for a more efficient and productive operator.

Operator Station Design

The operator's station provides excellent viewing area to the blade and rear of machine for maximum operator productivity.

Easy-To-Reach, Low-Effort Controls

Easy-to-reach, low-effort controls provide sure, precise steering and dozer control for less operator fatigue.

Isolation-Mounted Cab

Isolation-mounted cab (optional) with air pressurizer and heater reduces noise and vibration for shift-long comfort.

Caterpillar Contour Series Seat

The Caterpillar Contour Series Seat is ergonomically designed and fully adjustable for maximum comfort.

Radio Installation Group

The radio installation group is standard in the D6R cab. It includes mounting brackets, AM/FM antenna and speakers.

Sound Levels

Sound levels have been reduced.

Other Improvements

Other improvements include enlarged storage compartments for personal items, a cupholder, adjustable armrests, kneepads for side slope operations and window slides providing better sealing.


Choice of Differential Steering or Finger Tip Control creates an efficient work platform.

Differential Steering

Differential steering maintains uninterrupted power to both tracks during turns through a hydraulically actuated planetary differential, and allows simultaneous one-hand steering and transmission control.

Finger Tip Control

Finger Tip Control allows simultaneous, one-hand steering and transmission control.

Automatic Shifting

Automatic shifting features and easier upshifts and downshifts increase operator productivity, reduce fatigue, and shorten cycle times.


The Cat elevated sprocket tractor's modular design concept moves a generation ahead in simplified service and repair.

Major Components

Major components are easily accessible and removable as single units.

Modular Design

The modular design permits fast removal and installation.

Pre-Testing of Modular Components

Pre-testing of modular components before installation or after repair assures quality.

Grouped Service Points

Grouped service points allow easy access to service areas and make routine checks fast and convenient.

Diagnostic Connector

A diagnostic connector for a special dealer tool enables fast troubleshooting of tractor systems.

Quick, Easy Service Access

The D6R design allows quick, easy service access and inspection.

Ecology Drains

Ecology drains provide an environmentally safer method to drain fluids. They are included on the radiator, engine and hydraulic tank; optional for the transmission, bevel gear case and torque divider.

Customer Service

Unmatched in the industry!


Your Cat Dealer offers a wide range of services that can be set up under a customer support agreement when you purchase your equipment.

Product Support

You will find nearly all parts at your dealer parts counter. Cat Dealers utilize a world-wide computer network to find in-stock parts to minimize machine down time.

Service Capability

Whether in the dealer's fully equipped shop or in the field, you will get trained service technicians using the latest technology and tools.


Make detailed comparisons of the machines you are considering before you buy. Your Cat Dealer can give you precise answers to your questions.


Look past initial price. Consider the financing options available as well as day-to-day operating costs.


Improving operating techniques can boost your profits. Your Cat Dealer has training videotapes, literature and other ideas to help you increase productivity.


More and more equipment buyers are planning for effective maintenance before buying equipment. Choose from your dealer's wide range of maintenance services at the time you purchase your machine.


Repair, rebuilt or replace? Your Cat Dealer can help you evaluate the cost involved so you can make the right choice.
