Compact Track Loaders

Cat® Compact Track Loaders and Multi Terrain Loaders give you all the traction and flotation benefits of tracks. A choice of undercarriages lets you choose the machine that best fits your applications.

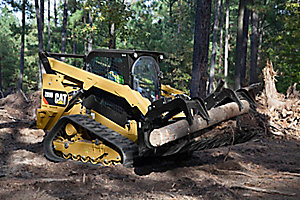

289D Compact Track Loader

The Cat 289D Compact Track Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its standard, suspended undercarriage system provides superior traction, flotation, stability and speed to work in a wide range of applications and underfoot conditions.

  • Specification Summary

  • Engine ModelCat C3.3B DIT (turbo)
  • Net Power53.6 kW
  • Gross Power55.4 kW
  • Gross Power SAE J199553.6 kW
  • Net Power SAE 134954.0 kW
  • Product Brochure


Product Details


Engine Model Cat C3.3B DIT (turbo)
Net Power 53.6 kW
Gross Power 55.4 kW
Gross Power SAE J1995 53.6 kW
Net Power SAE 1349 54.0 kW
Displacement 3.3 L
Bore 94 mm
Stroke 120 mm

Operating Specifications

Rated Operating Capacities: 50% Tipping Load 1724 kg
Rated Operating Capacities: 35% Tipping Load 1207 kg
Ground Contact Area 1837 m2
Ground Pressure 3447 kPa
Tipping Load 3307 kg
Breakout Force, Tilt Cylinder 1.30 kg
Rated Operating Capacity with Optional Counterweight 1.47 kg

Power Train

Travel Speed Forward 7.2 km/h
Travel Speed Reverse 11.3 km/h


Operating Weight 4778 kg

Service Refill Capacities

Cooling System 14 L
Engine Crankcase 11 L
Fuel Tank 94 L
Hydraulic System 52 L
Hydraulic Tank 39 L


Length of Track on Ground 1630 mm
Overall Length of Track 2129 mm
Length w/Bucket on Ground 2995 mm
Length w/o Bucket 3714 mm
Height to Top of Cab 2113 mm
Vehicle Width 4015 mm
Max. Overall Height 3178 mm
Bucket Pin Height at Max. Lift 190 mm
Bucket Pin Height at Carry Pos. 761 mm
Reach at Max. Lift/Dump 2387 mm
Clearance at Max. Lift/Dump 226 mm
Ground Clearance 33°
Departure Angle 51°
Maximum Dump Angle 1931
Turn Radius from Ctr - Rear 1981 mm
Turn Radius from Ctr - Coupler 1796 mm
Turn Radius from Ctr - Bucket 1410 mm
Max. Reach w/Arms Parallel 2256 mm
Rack Back Angle at Max Height 1270
Bucket Pin Reach at Max Lift 84°

Hydraulic System

Loader Hydraulic Pressure 23000 kPa
Loader Hydraulic Flow 86 L/min
Hydraulic Power 33 kW
Max. Loader Hydraulic Pressure 28000 kPa
Max. Loader Hydraulic Flow 121 L/min
Hydraulic Power (calculated) 57 kW


ROPS ISO 3471:2008
FOPS ISO 3449:2005 Level I
FOPS Level II ISO 3449:2005 Level II

Comfortable Cab

Industry leading sealed and pressurized cab option provides a cleaner and quieter operating environment with excellent work tool visibility. Available high-back, heated, air ride seat with seat mounted adjustable joystick controls makes the D Series the industry leader in operator comfort.

Outstanding Power

High performance power train provides maximum performance and production capability through the Electronic Torque Management system, standard two speed travel and an industry exclusive electronic hand/foot throttle with decel pedal capability. Cat C3.3B engine and high performance power train provide high engine horsepower and torque, allowing partial-throttle operation for lower sound levels and fuel consumption. High Flow XPS hydraulic system is available for applications that demand maximum hydraulic work tool performance.

Versatility to Tackle Any Job

Cat “Intelligent Leveling” system (ILEV) provides industry leading technology, integration and optional features such as dual direction self level, work tool return to dig and work tool positioner. Standard fully independent torsion axle suspension combined with the optional Speed Sensitive Ride Control system improves operation on rough terrain, enabling better load retention, increased productivity and greater operator comfort. Broad range of performance matched Cat Work Tools makes the Cat Compact Track Loader the most versatile machine on the job site.

Advanced Display

Maximize machine capability and control with optional Advanced Display providing on-screen adjustments for implement response, hystat response and creep control. The display also features multi-language functionality with customizable layouts, security system and rearview camera.

Easy Service

Ground level access to all daily service and routine maintenance points helps reduce machine downtime for greater productivity.
    •  12 volt Electrical System
    •  80 ampere Alternator
    •  Ignition Key Start/Stop Switch
    •  Lights: Gauge Backlighting, Two Rear Tail Lights, Two Rear Halogen Working Lights, Two Adjustable Front Halogen Lights, Dome Light
    •  Backup Alarm
    •  Heavy Duty Battery, 880 CCA
  • 12 volt Electrical System
    • 80 ampere Alternator
      • Ignition Key Start/Stop Switch
        • Lights: Gauge Backlighting, Two Rear Tail Lights, Two Rear Halogen Working Lights, Two Adjustable Front Halogen Lights, Dome Light
          • Backup Alarm
            • Heavy Duty Battery, 880 CCA
                •  Gauges: Fuel Level, Hour Meter
                •  Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Filter Restriction, Hydraulic Oil Temperature, Park Brake E
                •  Adjustable Vinyl Seat
                •  Fold In Ergonomic Contoured Armrest
                •  Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages
                •  ROPS Cab, Open, Tilt Up
                •  FOPS, Level I
                •  Top and Rear Windows
                •  Floor Mat
                •  Interior Rearview Mirror
                •  12 volt Electric Socket
                •  Horn
                •  Hand (Dial) Throttle, Electronic
                •  Adjustable Joystick Controls
                •  Anti-theft Security System with 6-button Keypad
                •  Storage Compartment with Netting
              • POWER TRAIN
                •  Cat C3.3B, Turbo Diesel Engine
                •  Air Cleaner, Dual Element, Radial Seal
                •  S?O?SSM Sampling Valve, Hydraulic Oil
                •  Filters, Cartridge-type, Hydraulic
                •  Filters, Cartridge-type, Fuel and Water Separator
                •  Radiator/Hydraulic Oil Cooler (side-by-side)
                •  Spring Applied, Hydraulically Released, Wet Multi Disc Parking Brakes
                •  Hydrostatic Transmission, Two Speed Travel
                •  Suspension – Independent Torsion Axles (4)
              • Cat C3.3B, Turbo Diesel Engine
                • Air Cleaner, Dual Element, Radial Seal
                  • S?O?SSM Sampling Valve, Hydraulic Oil
                    • Filters, Cartridge-type, Hydraulic
                      • Filters, Cartridge-type, Fuel and Water Separator
                        • Radiator/Hydraulic Oil Cooler (side-by-side)
                          • Spring Applied, Hydraulically Released, Wet Multi Disc Parking Brakes
                            • Hydrostatic Transmission, Two Speed Travel
                              • Suspension – Independent Torsion Axles (4)
                                • OTHER
                                  •  Engine Enclosure, Lockable
                                  •  Extended Life Antifreeze, –37° C (–34° F)
                                  •  Machine Tie Down Points (6)
                                  •  Support, Lift Arm
                                  •  Hydraulic Oil Level Sight Gauge
                                  •  Radiator Coolant Level Sight Gauge
                                  •  Radiator, Expansion Bottle
                                  •  Cat ToughGuard™ Hose
                                  •  Auxiliary, Hydraulics, Continuous Flow
                                  •  Heavy Duty, Flat Faced Quick Disconnects with Integrated Pressure Release
                                  •  Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm
                                  •  Electrical Outlet, Beacon
                                  •  Belly Pan Cleanout
                                  •  Variable Speed Demand Fan
                                  •  Product Link™ PL240, Cellular
                                • Engine Enclosure, Lockable
                                  • Extended Life Antifreeze, –37° C (–34° F)
                                    • Machine Tie Down Points (6)
                                      • Support, Lift Arm
                                        • Hydraulic Oil Level Sight Gauge
                                          • Radiator Coolant Level Sight Gauge
                                            • Radiator, Expansion Bottle
                                              • Cat ToughGuard™ Hose
                                                • Auxiliary, Hydraulics, Continuous Flow
                                                  • Heavy Duty, Flat Faced Quick Disconnects with Integrated Pressure Release
                                                    • Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm
                                                      • Electrical Outlet, Beacon
                                                        • Belly Pan Cleanout
                                                          • Variable Speed Demand Fan
                                                            • Product Link™ PL240, Cellular
                                                              • MANDATORY EQUIPMENT
                                                                •  Hydraulics, Standard or High Flow XPS
                                                                •  Quick Coupler, Mechanical or Powered
                                                                •  Seat Belt, 50 mm (2 in) or 75 mm (3 in)
                                                                •  Steel Imbed Rubber Track – 400 mm (15.7 in) or 450 mm (17.7 in)
                                                                •  Dual Flange Front Idler/Single Flange Rear Idler or Triple Flange Front/Rear Idlers
                                                                •  PERFORMANCE PACKAGES:<ul><li>Performance Package H1: Standard Flow Hydraulics (No Self Level)</li><li>Performance Package H2: Standard Flow, Dual Direction Electronic Self Level (Raise and Lower), Electronic Snubbing (Raise and Lowe
                                                                •  COMFORT PACKAGES:<ul><li>Open ROPS (C0): Static Seat (No Foot Throttle, Headliner, Heater or Door)</li><li>Open ROPS (C1): Foot Throttle, Headliner, Cup Holder, and choice of Seat (Mechanical Suspension or High Back, Heated, Air Rid
                                                              • OPTIONAL EQUIPMENT
                                                                •  Hand-Foot Style Controls
                                                                •  External Counterweights
                                                                •  Beacon, Rotating
                                                                •  Engine Block Heater – 120V
                                                                •  Oil, Hydraulic, Cold Operation
                                                                •  Paint, Custom
                                                                •  Heavy Duty Battery, 1,000 CCA
                                                                •  Product Link PL641, Cellular
                                                                •  Speed Sensitive Ride Control
                                                                •  Advanced Display: Full Color, 5 in LCD screen, Advanced Multi-operator Security System, On-screen Adjustments for Implement Response, Hystat Response, and Creep Control; Rearview Camera Ready
                                                                •  Advanced Display: Rearview Camera Included
                                                                •  Work Tool Return to Dig and Work Tool Positioner
                                                                •  Bluetooth Radio with Microphone (AM/FM/Weather Band Receiver with USB and Auxiliary Input Jack)
