Multi Terrain Loaders(Non Current)

Cat® Compact Track Loaders and Multi Terrain Loaders give you all the traction and flotation benefits of tracks. A choice of undercarriages lets you choose the machine that best fits your applications.

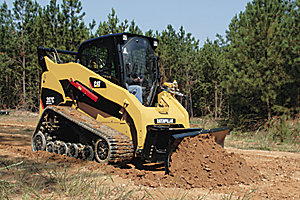

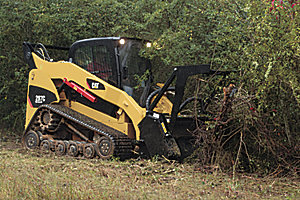

287C Multi Terrain Loader

An industry-first sealed and pressurized cab, low ground pressure, increased rated operating capacity, higher horsepower and superior performance help you get more done and increase your bottom line.

  • Specification Summary

  • Engine Model Cat® C3.4 DIT
  • Net Power 61 kW
  • Gross Power 63 kW
  • Gross Power - SAE J1995 63 kW
  • Product Brochure


Product Details


Engine Model Cat® C3.4 DIT
Net Power 61 kW
Gross Power 63 kW
Gross Power - SAE J1995 63 kW
Engine Power - ISO 14396 62 kW
Net Power - EEC 80/1269 62 kW
Net Power - ISO 9249 EEC 62 kW
Net Power - SAE 1349 61 kW
Displacement 3.3 l
Bore 94 mm
Stroke 120 mm


Operating Weight 4517 kg

Operating Specifications

Rated Operating Capacities - 50% Tipping Load 1724 kg
Rated Operating Capacities - 35% Tipping Load 1229 kg
Ground Contact Area 1.64 m²
Ground Pressure 26.9 kPa
Tipping Load 3512 kg
Breakout Force - Tilt Cylinder 3315 kg
Rated Operating Capacity with Optional Counterweight 1868 kg


Length - Track on Ground 1808 mm
Overall Length - Track 2286 mm
Length - With Bucket on Ground 3692 mm
Length - Without Bucket 2973 mm
Height - Top of Cab 2115 mm
Vehicle Width 1981 mm
Maximum Overall Height 4075 mm
Bucket Pin Height - Maximum Lift 3233 mm
Bucket Pin Height - Carry Position 200 mm
Reach at Maximum Lift/Dump 784 mm
Clearance at Maximum Lift and Dump 2450 mm
Ground Clearance 225 mm
Departure Angle 42°
Maximum Dump Angle 50°
Turn Radius from Center - Rear 1627 mm
Turn Radius from Center - Coupler 1487 mm
Turn Radius from Center - Bucket 2330 mm
Maximum Reach - With Arms Parallel 1285 mm
Rack Back Angle - Maximum Height 85°
Bucket Pin Reach - Maximum Lift 375 mm

Hydraulic System

Hydraulic Flow (1) Standard
Loader Hydraulic Pressure 23000 kPa
Maximum Loader Hydraulic Pressure 28000 kPa
Loader Hydraulic Flow 84 l/min
Maximum Loader Hydraulic Flow 125 l/min
Hydraulic Power 31.9 kW
Hydraulic Flow (2) High Flow XPS


ROPS SAE J1040 MAY94, ISO 3471:1994
FOPS SAE J1043 SEPT87, ISO 3449:1992 Level I
FOPS Level II SAE J231 JAN81, ISO 3449:1992 Level II

Power Train

Travel Speed Forward 9 km/h
Travel Speed Reverse 9 km/h
Travel Speed Reverse - 2-Speed Option 14.9 km/h
Travel Speed Forward - 2-Speed Option 14.9 km/h

Service Refill Capacities

Cooling System 14 l
Engine Crankcase 10 l
Fuel Tank 98 l
Hydraulic System 57 l
Hydraulic Tank 42 l

Operator Station

Superior comfort to keep you productive throughout the work day.

Sealed and Pressurized Cab

Comfort and ease of operation have been designed into every aspect of the operator station. The wide, spacious interior and uncluttered floor provide a comfortable work environment with excellent head, shoulder and leg room to keep productivity high and fatigue low.Operators spend long hours in the machine. The new sealed and pressurized cab keeps dust out and clean air in for greater operator comfort. Reduced sound levels within the cab also help reduce fatigue.

Seat Mounted Joystick Controls

Ergonomic, seat mounted joystick controls enable a wide range of comfortable operating positions for operators of any size. The seat and controls are independently adjustable to meet the specific needs of the operator.

Air Ride Seat Available

An air ride seat provides an unparalleled level of comfort in a multi terrain loader.

Advanced Machine Information and Control System

The optional Advanced Machine Information and Control System provides easy to read and understand information regarding hydraulic oil and engine coolant temperature, engine speed, Selectable Work Speed Control and Selectable Implement Control. It also includes a service mode for checking service codes and status of components.

Additional Features for Maximum Comfort

  • Easy to read instrument panels
  • Optional air conditioner and heater provides greater comfort in extreme conditions
  • Optional Selectable Pattern Control which allows the operator to select the control pattern they are most familiar with for greater productivity.

Rubber Track Undercarriage

Unique undercarriage delivers low ground pressure, stability and superior suspension.

Low Ground Pressure

Cat Multi Terrain Loaders feature a rugged, durable rubber track that is lightweight and pliable, yet reinforced with high tensile strength cords. The undercarriage provides low ground pressure, allowing the machine to operate over sensitive surfaces and in soft underfoot conditions. The elevated positive drive system keeps drive components away from ground debris. Heavy duty torsion axles suspend each side of the machine frame independently for a smoother ride over rough terrain. Components can be replaced as individual items wear, reducing owning and operating costs. The 287C is available with either a single or dual level suspension undercarriage.

Single Level Suspension Undercarriage

The single level suspension undercarriage distributes the load and greatly reduces shock and vibration throughout the machine for a comfortable ride and excellent bucket load retention.

Dual Level Suspension Undercarriage

The dual level suspension undercarriage uses the same concept as the single level with the addition of oscilating bogie wheels. The result is more track on the ground, better load retention, improved operator comfort, better use of high travel speed and the best ride in the industry.

Vertical Lift Linkage

Built for tough working conditions.

Vertical Lift Design

The 287C features a vertical lift design, providing extended reach and lift height for quick and easy truck loading.

Power Train

Aggressive performance with fuel efficiency.


The high performance power train provides high engine horsepower and torque. The C-Series features the Cat C3.4 DIT engine--a rugged, reliable engine that meets worldwide emissions requirements.

Hand and Foot Throttles

Hand and foot throttles allow the operator to match engine speed to the task. The hand throttle is ideal for jobs requiring constant engine speed such as cold planing, trenching or snow blowing. The foot throttle lets the operator vary engine speed and minimize fuel consumption for other tasks such as load and carry, truck loading, grading and dozing.

Electronic Torque Management

The Electronic Torque Management system maximizes power to the ground and prevents the engine from stalling in tough digging and dozing applications for maximum productivity. The system allows part throttle operation which provides smoother machine operation and reduces fuel consumption.


Exceptional lift, breakout and power to meet your needs.

Hydraulic System

Maximum power and reliability are built into the Cat Multi Terrain Loader hydraulic system. In addition to providing power to the tracks, this system also provides the loader lift and tilt functions, powers the auxiliary circuit to drive work tools and drives the engine cooling fan. The C-Series hydraulic system features:
  • Increased lift and tilt breakout forces allowing you to move more material and get more done.
  • Continuous demand fan for improved fuel efficiency, increased horsepower, reduced sound levels and improved cold weather performance.
  • Cat ToughGuard™ hoses for increased reliability and durability.

High Flow XPS

High flow XPS hydraulic system offers both increased flow and increased pressure to maximize work tool performance.

Selectable Implement Control

The Selectable Implement Control option with three levels of control gives the operator the ability to adjust the responsiveness of the lift and tilt functions for more precise implement control.

Two Speed Option

Two speed option increases top travel speed to 14.9 kph (9.3 mph) so you can move around the jobsite faster.

Work Tools

Do more jobs with one machine with Cat Work Tools.

The Right Tool for the Job

Designed and built for optimum performance and durability, Cat Work Tools deliver high productivity in a variety of applications to maximize versatility:
  • Augers
  • Backhoes
  • Blades (angle, dozer)
  • Buckets (general purpose, high capacity, dirt, utility, light material, multi purpose, industrial grapple, utility grapple)
  • Brooms (angle, pickup, utility)
  • Brushcutters
  • Cold Planers
  • Forks (pallet, industrial grapple, utility grapple, utility)
  • Hydraulic Hammers
  • Landscape Tillers
  • Landscape Rakes
  • Material Handling Arm
  • Mulcher
  • Power Box Rakes
  • Shear
  • Snow Blowers
  • Stump Grinders
  • Trenchers
  • Vibratory Compactors
  • Wheel Saws

Quick Couplers

Work tools can be changed quickly and easily with the Cat Multi Terrain Loader’s quick coupler system. The standard quick coupler features manual engagement and disengagement of work tools using two high leverage handles. The optional hydraulic quick coupler allows the operator to quickly change tools without leaving the cab.

AccuGrade™ Grade Control System for Skid Steer, Multi Terrain and Compact Track Loaders

Common to AccuGrade systems for Track-Type Tractors and Motor Graders, this deeply integrated solution automates the machine's electrohydraulic controls to achieve a consistent grade across the work site, improve accuracy and increase productivity, ultimately lowering operating and material costs.


Simplified service and maintenance save you time and money.

Easy Maintenance

Convenient service features make maintenance easy, reducing your downtime:
  • Rear door opens 90 degrees for easy access to both sides of the engine.
  • Cab tilts rearward for easy access to all hydraulic pumps, motors, valves, lines and hydraulic tank.
  • Daily maintenance points are easily accessible.
  • Wires are color coded and numbered for easy identification.
  • SOS oil sampling valves are standard to allow regular monitoring of the engine and hydraulic oil quality.

Customer Support

Unmatched support makes the difference.

Dealer Services

Your Cat dealer is ready to assist you with your purchase decision and everything after. Make detailed comparisons of the machines you are considering before you buy – with estimates of component life, preventative maintenance and the true cost of production. Flexible financing packages are available to meet your needs. Repair option programs guarantee the cost of repairs up front. Your Cat dealer can evaluate the cost involved in repairing, rebuilding and replacing your machine so you can make the right choice.Nearly all parts available at the dealer parts counter to lower your machine downtime.Operator training can improve your operator’s techniques and boost your profits.
    •  12 volt Electrical System
    •  90 ampere Alternator
    •  Ignition Key Start/Stop Switch
    •  Lights: Gauge backlighting, two rear tail lights, two rear working lights, two adjustable front halogen lights, dome light.
    •  Backup Alarm
    •  Heavy Duty Battery, 850 CCA
  • 12 volt Electrical System
    • 90 ampere Alternator
      • Ignition Key Start/Stop Switch
        • Lights: Gauge backlighting, two rear tail lights, two rear working lights, two adjustable front halogen lights, dome light.
          • Backup Alarm
            • Heavy Duty Battery, 850 CCA
                •  Gauges: Fuel level, hour meter
                •  Operator Warning System Indicators: Air filter restriction, alternator output, armrest raised/operator out of seat, engine coolant temperature, engine oil pressure, glow plug activation, hydraulic filter restriction, hydraulic oil temperature, parking brak
                •  Vinyl seat
                •  Fold-in Ergonomic Contoured Armrest
                •  Control Interlock System, when operator leaves seat or armrest raised: Hydraulic system disables, hydrostatic transmission disables, parking brake engages.
                •  ROPS Cab, Open, Tilt Up
                •  FOPS, Level I
                •  Top and Rear Windows
                •  Headliner, Deluxe
                •  Floor Mat
                •  Interior Rear View Mirror
                •  12 volt Electric Socket
                •  Horn
              • POWER TRAIN
                •  Cat C3.4 DIT Tier 3 Compliant Diesel Engine
                •  Air Cleaner, Dual Element, Radial Seal
                •  SOSSM Sampling Valves, Engine Oil and Hydraulic Oil
                •  Filters, Spin-on, Hydraulic
                •  Filters, Bayonet-type, Fuel and Water Separator
                •  Tilt Up Radiator/Hydraulic Oil Cooler
                •  Spring Applied, Hydraulically Released, Wet Multi Disc Parking Brake
                •  Hydrostatic Transmission
              • OTHER
                •  Engine Enclosure, Lockable
                •  Extended Life Antifreeze, -37° C (-34° F)
                •  Machine Tie Down Points (4)
                •  Support, Lift Arm
                •  Hydraulic Oil Level Sight Gauge
                •  Radiator, Expansion Bottle
                •  Cat ToughGuard™ Hose
                •  Auxiliary, Hydraulics, Continuous Flow
                •  Heavy Duty, Flat Faced Quick Disconnects
                •  Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm
                •  Electrical Outlet, Beacon
                •  Belly Pan Cleanout
              • Engine Enclosure, Lockable
                • Extended Life Antifreeze, -37° C (-34° F)
                  • Machine Tie Down Points (4)
                    • Support, Lift Arm
                      • Hydraulic Oil Level Sight Gauge
                        • Radiator, Expansion Bottle
                          • Cat ToughGuard™ Hose
                            • Auxiliary, Hydraulics, Continuous Flow
                              • Heavy Duty, Flat Faced Quick Disconnects
                                • Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm
                                  • Electrical Outlet, Beacon
                                    • Belly Pan Cleanout
                                      • MANDATORY EQUIPMENT
                                        •  Hydraulics, Standard or High Flow XPS
                                        •  Quick Coupler, Mechanical or Hydraulic
                                        •  Seat Belt, 50 mm (2 in) or 75 mm (3 in)
                                        •  Comfort Package (must select one of the following):
                                        •   Open ROPS (C1): Cup Holder, Radio Ready, Suspension Seat (no heater or door)
                                        •   Enclosed ROPS with Heat (C2): Cup Holder, Radio Ready, Seat (choice of Suspension or Air Ride), Heater and Defroster, Side Windows, Door (either Glass or Polycarbonate)
                                        •   Enclosed ROPS with A/C (C3): Features of C2 Package plus Air Conditioner
                                        •  Performance Package (must select one of the following):
                                        •   Performance Package 1: Single Level Suspension Undercarriage, One Speed
                                        •   Performance Package 2: Dual Level Suspension Undercarriage, One Speed, Self Level
                                        •   Performance Package 3: Dual Level Suspension Undercarriage, Two Speed, Self Level, Advanced Machine Information and Control System (AMICS)
                                      • Counterweight
                                        • Beacon, Rotating
                                          • Engine Block Heater--120V or 240V
                                            • Oil, Hydraulic, Cold Operation
                                              • Paint, Custom
                                                • Work Tool Electrical Control
                                                  • AM/FM Radio with CD player
