Three Axle Articulated Trucks(Non Current)

Cat Articulated Trucks are extremely versatile, moving a wide spectrum of material in a variety of applications and underfoot conditions. Durability and reliability mean articulated trucks often provide the best return on investment.

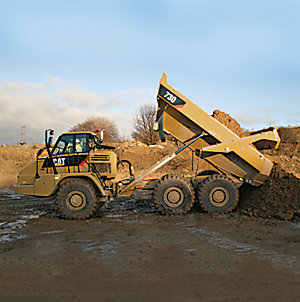

730 Articulated Truck

Cat 730 with 31 ton rated payload offers proven reliability and durability, high productivity, superior operator comfort and lower operating costs. Spacious two-person cab with forward facing trainer/passenger seat and off road oil/nitrogen front suspension cylinders keep the operator comfortable through out the working day. True “on-the-go” differential locks with simple operation improve cycle times and productivity. Strong, durable Cat ACERT engines and electronically controlled transmissions deliver high productivity with low fuel consumption.

  • Specification Summary

  • Engine ModelCat® C11 ACERT™
  • Standard Wheel Base242.0 mm
  • Long Wheel Base239.0 mm
  • Net Power - ISO 9249239.0 kW
  • Net Power - EEC 80/1269239.0 kW
  • Product Brochure


Product Details


Engine Model Cat® C11 ACERT™
Gross Power - SAE J1995 242.0 kW
Net Power - SAE J1349 239.0 kW
Net Power - ISO 9249 239.0 kW
Net Power - EEC 80/1269 239.0 kW
Bore 130.0 mm
Stroke 140.0 mm
Displacement 11.15 L


Rated Payload 28.1 tonnes

Body Capacities

Heaped SAE 2:1 16.9 m3
Struck 13.1 m3
Tailgate Heaped SAE 2:1 18.5 m3
Tailgate Struck 14.0 m3


Forward 1 8.0 km/h
Forward 2 15.0 km/h
Forward 3 22.0 km/h
Forward 4 34.0 km/h
Forward 5 47.0 km/h
Forward 6 55.0 km/h
Reverse 1 9.0 km/h

Operating Weights

Front Axle - Empty 13140.0 kg
Center Axle - Empty 5000.0 kg
Rear Axle - Empty 4710.0 kg
Total - Empty 22850.0 kg
Front Axle - Rated Load 2720.0 kg
Center Axle - Rated Load 12700.0 kg
Rear Axle - Rated Load 12700.0 kg
Total - Rated Load 28120.0 kg
Front Axle - Loaded 15860.0 kg
Center Axle - Loaded 17700.0 kg
Rear Axle - Loaded 17410.0 kg
Total - Loaded 50970.0 kg

Body Plate Thickness

Front 8.0 mm
Scow 14.0 mm
Side 12.0 mm
Base 14.0 mm

Service Refill Capacities

Fuel Tank 355.0 L
Cooling System 67.0 L
Hydraulic System 151.0 L
Engine Crankcase 41.0 L
Transmission 36.0 L
Final Drives/Differential 164.0 L
Output Transfer Gear Box 18.0 L

Sound Levels

Interior Cab 76.0 dB(A)

Body Hoist

Raise Time 12.0 Seconds
Lower Time 8.0 Seconds


Brakes ISO 3450 - 1996
Cab/FOPS ISO 3449 Level II - 2005
Cab/ROPS ISO 3471 - 2008
Steering ISO 5010 - 2007

Engine with ACERT™ Technology

Innovative technologies optimize performance.

ACERT Technology

The Cat® C11 ACERT™ engine introduces a series of evolutionary, incremental improvements that provide breakthrough engine technology built on systems and components developed by Caterpillar with proven reliability.

Advanced Diesel Engine Management (ADEM) A4 Engine Controller

The ADEM™ A4 electronic control module manages fuel delivery and provides flexible fuel mapping, allowing the engine to respond quickly to varying application needs.

Fuel Delivery

Multiple injection fuel delivery involves a high degree of precision. Precisely shaping the combustion cycle lowers combustion chamber temperatures, generating fewer emissions and optimizing fuel combustion. This translates into more work output for your fuel cost.

Noise Reduction Technologies

Noise reduction has been achieved through design changes to the isolated top cover, oil pan, multiple injection strategy, insulated timing case cover, sculpted crankcase and gear train refinements.


Proven Reliability.

Electronic Transmission

The Caterpillar six-speed electronically controlled transmission features anti-hunt shift strategy for speed continuity, and Individual Clutch Modulation (ICM) to ensure constant shift times.

Controlled Throttle Shifting (CTS)

Reduces power train stress and clutch wear by controlling engine speed, torque converter lock-up and transmission clutch engagements.

Engine Overspeed Inhibitor

Electronic Transmission Control (ETC) protects against engine overspeeding.

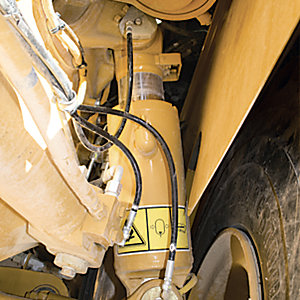

Suspension and Traction Control

Performance and Productivity.

Front Suspension

The three-point front suspension oscillates ±6° to provide a smooth ride, allowing the operator to travel at speed over rough terrain and softening impact loads on structures and components. Large bore, low pressure cylinders are purpose designed for tough applications and offer a soft, smooth ride.

A-Frame Construction

The front suspension uses an oscillating A-frame with a lateral tie rod to control axle sideways movement.

Rear Suspension

Features a walking beam geometry with Caterpillar designed rear suspension mounts which provide a reliable and stable ride for excellent load retention.

Traction Control

The traction control system is comprised of a wet clutched inter-axle differential and wet clutched cross-axle differentials. All differentials can be engaged and disengaged "on-the-go" for maximum versatility. When used together, the differentials provide 100 percent driveline locking.

Inter-Axle Differential Lock

Locks all three axles in unison and modifies torque distribution for excellent traction in poor underfoot conditions and on grades. It is operated by a switch located at the footrest.

Cross-Axle Differential Locks

Provides full driveline locking - all three axles and all six wheels - for maximum performance in the most adverse conditions. Acts in unison with the inter-axle differential lock when the footswitch is actuated and the dash-mounted switch is selected.

Mounting Points

Suspension mounting points are integrated into the axle housing, increasing reliability.

Operator Comfort

High productivity from a comfortable, confident operator.

Ride Comfort

The three-point front suspension with its oscillating axle and low-pressure ride struts, combined with the center-mounted cab, offers unrivaled levels of ride comfort for the operator in all driving conditions. The operator remains comfortable and productive throughout the day.

Spacious Two-Person Cab

The 730 features a large two-person cab, offering comfortable working space for both the operator and trainer or trainee. All 700 Family articulated trucks use the same spacious cab design.

Air Suspension Seat

The air suspension seat enhances operator comfort with a cushioned upper high back, adjustable damping with three settings, ride zone indicator and adjustable lumbar settings. It is fully adjustable to provide the optimal driving position.

Trainer Seat

Full-size trainer seat features a fully padded seat with a backrest and a wide seatbelt for a secure and comfortable ride. The trainer seat is positioned next to the operator seat, giving both the operator and trainer a clear view of the instrument panel, controls and the road.

Steering Column

A comfortable driving position is provided by a telescopic and tilt adjustable steering column.

Ease of Operation

Designed for ease of use - allows the operator to focus on production.

Ergonomic Layout

The controls and layout of the cab are designed to make it as easy to operate as your car. Quick, easy to read and simple to operate, the controls and gauges on the 730 allow the operator to concentrate on production.


The Generation II wrap-around dash puts all controls within easy reach of the operator. Featuring LED illuminated rocker switches, large LCD display and a rear wash wipe rocker switch. It provides an automotive feel with the industrial strength you would expect from Caterpillar.

Viewing Area

The low sloping hood and placement of the cooling package behind the cab give the operator excellent all-around visibility. The large glass area and central operator position also provide excellent visibility.


The wet arm wiper system cleans more glass area and is bottom-mounted to keep it out of the operator's line of sight. Windows are tinted to reduce glare.

Differential Lock Controls

The inter-axle differential lock can be engaged/disengaged "on-the-go" by using a raised switch incorporated into the drivers foot rest, for ease of operation. For 100% lock up, all three cross-axle differential locks act in unison with the inter-axle differential lock when the foot switch is activated and a dash mounted switch is selected. Disengaging the foot switch opens all differential locks immediately.

Transmission and Hoist Levers

The hoist lever provides easy, comfortable operation. The transmission lever offers excellent comfort, and control for top gear limit, transmission hold and neutral lock.

Suspended Pedals

Easy to operate and reach with plenty of leg and foot room. They also make for easier cleaning of the cab floor by keeping the pedals out of the dirt.

Cat 2S Monitoring System

Provides an improved method of monitoring critical machine functions and alerts the operator to an immediate or impending problem. The system includes four levels of warning.

Durability and Reliability

High machine availability maximizes productivity and lowers costs.

Front Frame

The front frame design features a large box section and wide, stiff frame beams to handle torque loads. The divergent frame design decreases stress in the hitch area and optimizes suspension geometry. The frame design makes maximum use of robotic welding for increased durability.

Rear Frame

Twin-box construction minimizes stress concentrations and provides low weight with long service life.


The three-point oscillating axle front suspension provides unparalleled ride quality. It also protects the truck from adverse road conditions by absorbing shock loads that would reach the frame.

Articulating/Oscillating Hitch

The articulating hitch provides the truck with steering articulation, and the oscillation ensures all-wheel ground contact in rough terrain.

Hitch Construction

Two-piece construction features a durable cast steel head bolted to a hard-wearing forged steel tube.

Fast Hoist Cycle Times

Fast body raise and lower times mean less time spent in the dump area.

Load-Carrying Capacity

The 730 has a large target area to provide consistently high load-carrying capacity. Its diverging flow design gives clean load ejection, which maximizes production and avoids the waste of material carry-back.


More time on production.

Long Service Intervals

Long engine oil change and hydraulic oil change intervals lower maintenance costs and downtime. Wheel-bearing adjustment is completely eliminated.

Lube Points

Lube points are grouped at the rear of the front frame and the front of the rear frame. Universal joints are lubed for life, eliminating servicing. Autolube is optional.

Service Points

Engine and transmission dipstick and fill caps, air and fuel filters, and the fuel priming pump are all mounted on the left side of the engine under the electrically raised hood. Coolant level indicator and fill cap are outside the cab.


The radiator package is located behind the cab, which provides protection from frontal impacts and offers easy access to the inlet and outlet sides of the radiator.

Extended Life Coolant

Extends the change interval and improves component life by reducing aluminum corrosion.

Electrical Service Center

Located inside the cab, this service center provides a power port, diagnostic connector and Cat Data Link connector.

Cat Data Link Connector

The Cat Data Link connector provides a plug-in using a laptop computer with Electronic Technician (ET) software.

Service Access

The cab tilts to the side to provide easy access underneath, which simplifies access of the transmission, drive shafts and hydraulic pumps. Machine electrical and hydraulic interfaces are located on the right side of the cab, behind a removable cab body panel for easy access.

Truck Transport

The suspension system eliminates the need to lower the suspension when transporting the truck, reducing maintenance and downtime.

Output Transfer Gear

Provides lubrication of all bearings and clutches using a distributed-pressure lubricated and filtered system.

Product Link

Equipment Manager is a secure and user-friendly application.

Equipment Manager - a better way to manage your fleet

Equipment Manager allows transmitted data to be searched and sorted by alert level, group, equipment identification, make and model. Each new machine comes with Asset Watch. However, you can subscribe to a higher level of service for any machine, at any time, through your Cat dealer. Depending on your information needs, Equipment Manager will:
  • Report current equipment parameters (machine hours, location, fuel consumption, etc)
  • Track all elements of machine maintenance and keep history
  • Predict when a service is needed
  • Facilitate maintenance scheduling and parts ordering
  • Alert you to potential and immediate issues

Asset Watch

Asset Watch manages your assets - enabling you to find your machine quickly, and to control its movement and work schedule.

Maintenance Watch

Maintenance Watch includes all the features of Asset Watch and will also help you plan, coordinate and track your repairs and maintenance, allowing you to align maintenance with machine usage.

Health Watch

Health Watch includes all the features of Asset Watch and will track machine operational conditions to help address potential issues before they become serious. You can also identify abuse, efficiency and training issues with individual operators.

Complete Customer Support

Cat® dealer services help you operate longer with lower costs.


Make comparisons of the machines you are considering before you buy. Your Cat® dealer can help.


Consider the resale value, compare productivity and day-to-day operating costs and fuel consumption.


For the best operating techniques to increase productivity and your profit, turn to your Cat dealer for the latest training literature and trained staff.


Repair option programs guarantee the cost of repairs up front. Diagnostic programs such as S·O·SSM and Technical Analysis help you avoid unscheduled repairs.


Repair or rebuild? Your Cat dealer can help you evaluate the costs so you can make the right choice.

Product Support

Your local Cat dealership will be with you every step of the way with its unsurpassed worldwide parts support, trained technicians and customer support agreements.


For more complete information on Cat products, dealer services and industry solutions, visit us on the Web at www.cat.com.


Designed with safety as the first priority.

Product Safety

Caterpillar has been and continues to be proactive in developing machines that meet or exceed safety standards. Safety is an integral part of all machines and system designs.

Safety Features

  • Cab integral ROPS (Roll Over Protection System) and FOPS (Falling Object Protection System)
  • Rear view camera system provides a continuous panoramic rear view or when reverse gear is selected
  • The secondary and parking brake functions are spring applied and hydraulic released
  • Electro-hydraulic secondary steering system, automatically activates in forward/reverse or when stationary if low pressure is sensed. Can be manually selected for machine recovery purposes
  • External engine fuel cut off switch for easy access from outside of the machine
  • External electrical system disconnect switch for easy access from outside of the machine
  • Slip resistant surfaces - punched steel plate
  • 75 mm (3 in) wide seat belts for operator/trainer and passenger
  • Wide angled mirrors for excellent rear visibility
  • Sweeping hood design for panoramic forward visibility
  • Extensive hand rails
  • Body raised alarm
  • Heated mirrors (optional)
  • Xenon flashing beacon (optional)
  • Air conditioning with R134A refrigerant
    • Air vents, adjustable
      • Auto shift six-speed transmission
        • Back up alarm
          • Body, adapted for exhaust heat
            • Cat C11 engine with ACERT Technology
              • Caterpillar Work Area Vision System (WAVS) rear-view camera
                • CD/Radio ready
                  • Differentials, standard with clutched cross-axle differential locks for all axles
                    • Dual circuit caliper disc brakes - all wheels
                      • Electrical system, 24 volt, 5A 24- to 12-volt converter
                        • Electro hydraulic hoist control
                          • Ether starting aid
                            • Glass windows, laminated and tinted (front), toughened and tinted (rear)
                              • Guards: rear window, radiator, crankcase and axle
                                • Headlights, four
                                  • Heater and defroster with four-speed fan
                                    • Horn, electric
                                      • Lights: cab interior, front, side, rear, two reversing/working lights, two stop/tail lights, front and rear direction indicators
                                        • Mirrors, main and auxiliary, left and right
                                          • Mud flaps, wheel arch and body mounted, with transportation tie backs
                                            • Product Link (US/Canada/Europe/Turkey/Australia/New Zealand)
                                              • Retarder
                                                • ROPS/FOPS cab, with full instrumentation, including:
                                                  •  Instrument cluster display module
                                                  •  Indicator lamps: left turn, secondary steering, primary steering loss, front and rear brake temp (735/740 and 740 Ejector only), brake oil pressure, action lamp, transmission fault, park brake, charging system status, differential lock, body not in float,
                                                  •  Gauges: engine oil pressure, engine coolant temperature, torque converter oil temperature, fuel level, and fuel tank level gauge
                                                  •  Meters: service hour meter, speedometer, tachometer
                                                • Instrument cluster display module
                                                  • Indicator lamps: left turn, secondary steering, primary steering loss, front and rear brake temp (735/740 and 740 Ejector only), brake oil pressure, action lamp, transmission fault, park brake, charging system status, differential lock, body not in float,
                                                    • Gauges: engine oil pressure, engine coolant temperature, torque converter oil temperature, fuel level, and fuel tank level gauge
                                                      • Meters: service hour meter, speedometer, tachometer
                                                        • Seat, fully adjustable, air suspension
                                                          • Seat, padded companion/trainer
                                                            • Secondary steering - electronic
                                                              • SOSSM sampling valves
                                                                • Spill guard, front, integral part of fabricated body
                                                                  • Starting receptacle, electric, remote
                                                                    • Storage: two cup holders, flask receptacle, under seat storage, door pocket, behind seat storage, coat hook.
                                                                      • Sun visor
                                                                        • Three axle, six-wheel drive
                                                                          • Tilt and telescopic steering wheel
                                                                            • Tires, six 23.5R25, radial
                                                                              • Tow pins front and rear
                                                                                • Two seat belts, operators retractable
                                                                                  • Vandalism protection: lockable caps for fuel tank and hydraulic oil tank
                                                                                    • Windows opening side, tinted
                                                                                      • Windshield wiper and washer, two speed, intermittent (front)
                                                                                        • Windshield wiper and washer, two speed (rear)
                                                                                          • Autolube installation for automatic greasing of bearings
                                                                                            • Body liners
                                                                                              • CD/Radio, heavy duty
                                                                                                • Cold weather coolant -51° C (-60° F)
                                                                                                  • Cold weather start kit
                                                                                                    • Cycle counter/operator monitoring kit
                                                                                                      • Engine block heater
                                                                                                        • Exhaust heated body
                                                                                                          • Fast fuel fill
                                                                                                            • Flashing Xenon Beacon
                                                                                                              • Fuel additive-anti-waxing
                                                                                                                • Heated rear-view mirrors
                                                                                                                  • Product Link (where available)
                                                                                                                    • Tailgate:
                                                                                                                      •  Scissor-type
                                                                                                                    • Scissor-type
                                                                                                                      • Tires, six 750/65

                                                                                                                        Have a Question?


                                                                                                                        "Call Back Option available only for UAE, Bahrain, Kuwait, Oman and Qatar."
