Skid Steer Loaders(Non Current)

The Cat® Skid Steer Loaders deliver exceptional performance, versatility, ease of operation, serviceability and customer support. A wide range of Cat Work Tools are machine matched to Cat Skid Steer Loaders to meet all customer needs.

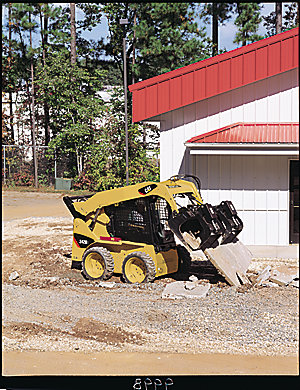

242B Series 2 Skid Steer Loader

The Cat® 242B Series 2 Skid Steer Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its stability and lifting performance provides excellent material handling.

Product Details

Engine

Engine Model C2.2 T
Net Flywheel Power 42 kW
Gross Power SAE J1995 46 kW
Net Power EEC ISO 9249 42 kW
Displacement 2.2 L
Stroke 100 mm
Bore 84 mm

Operating Specifications

Rated Operating Capacity 952 kg
Tipping Load 1953 kg

Weights

Operating Weight 3136 kg
Operating Weight (HF) 3136 kg

Dimensions

Wheelbase 1094 mm
Length w/Bucket on Ground 3437 mm
Length w/o Bucket 2760 mm
Height to Top of Cab 1986 mm
Vehicle Width over Tires 1676 mm
Max Overall Height 3926 mm
Bucket Pin Height at Max Lift 3046 mm
Bucket Pin Height at Carry Pos. 299 mm
Reach at Max Lift and Dump 766 mm
Clearance at Max Lift and Dump 2270 mm
Ground Clearance 178 mm
Departure Angle 28°
Bumper Overhang - Rear Axle 989 mm
Maximum Dump Angle 50°
Turn Radius from Ctr - Rear 1545 mm
Turn Radius from Ctr - Coupler 1409 mm
Turn Radius from Ctr - Bucket 2221 mm
Max. Reach w/Arms-Parallel 1231 mm
Rack Back Angle at Max Height 86.9°
Bucket Pin Reach at Max Lift 285 mm

Hydraulic System

Max. Loader Hydraulic Pressure 23000 kPa
Max. Loader Hydraulic Flow 100 L/min
Hydraulic Power 23 kW
Hydraulic Flow Standard Flow
Loader Hydraulic Pressure 23000 kPa
Loader Hydraulic Flow 60 L/min
Hydraulic Flow High Flow

Cab

ROPS ISO 3471:1994
FOPS ISO 3449 APR98 Level I and ISO 3449:1992 Level I
FOPS Level II ISO 3449:1992 Level II

Power Train

Travel Speed Forward 11 km/h
Travel Speed Reverse 11 km/h

Service Refill Capacities

Chain box, each side 6 L
Cooling System 10 L
Engine Crankcase 10 L
Fuel Tank 58 L
Hydraulic System 55 L
Hydraulic Tank 35 L

Ergonomic Operator Station

Easy to use pilot operated joystick controls for reduced operator fatigue and increased productivity.

High Performance Power Train

Provides high engine horsepower and torque, allowing part-throttle operation for lower sound levels and fuel consumption.

Advanced Hydraulic System

Designed for maximum power and reliability. High flow hydraulic system is available for applications that demand maximum work tool performance.

Work Tools

Caterpillar’s broad range of performance matched work tools make the Cat Skid Steer Loader the most versatile machine on the jobsite.

Serviceability

Easy routine maintenance helps reduce machine downtime for greater productivity.
