Off-Highway Trucks

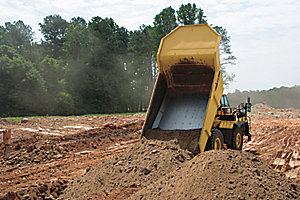

Caterpillar builds Off-Highway Trucks specifically for work in mines, construction and quarries. Our Off-Highway Trucks are pass-matched with Cat Wheel Loaders and Hydraulic Excavators to speed cycle times and maximize productivity.

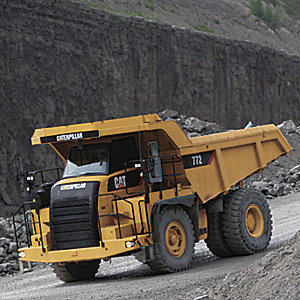

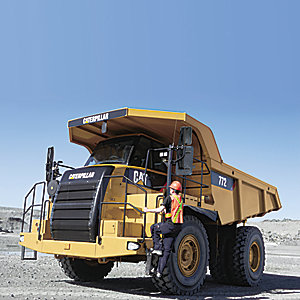

772 Off Highway Truck

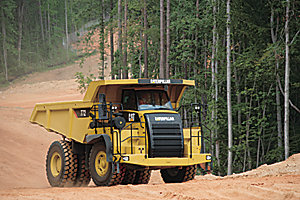

Top Performance. Developed specifically for construction, mining, and quarry applications, the 772 optimizes demands for lower cost per ton, challenges of finding skilled labor, and overall health and safety. Reliable, Durable, Dependable. Rugged construction and easy maintenance procedures ensure long life with low operating costs.

Product Details

Operating Specifications

Nominal Payload Class (100%) 45 tonnes
Top Speed – Loaded 79.7 km/h
Body Capacity – SAE 2:1 31.3 m3
Target Payload Capacity 45 tonnes

Engine

Engine Model C18 ACERT
Rated Engine Speed 1800 RPM
Gross Power – SAE J1995 446 kW
Net Power – ISO 9249 399 kW
Number of Cylinders 6
Bore 145 mm
Stroke 183 mm
Displacement 18.1 L
Net Power - ISO 9249:1997 399 kW
Peak Torque 2696 N·m

Weights – Approximate

Target Gross Machine Operating Weight 82100 kg
Chassis Weight 25025 kg
Body Weight 10425 kg

Capacity – Dual Slope – 100% Fill Factor

Struck 24.2 m3
Heaped 2:1 (SAE) 31.2 m3

Capacity – Flat Floor – 100% Fill Factor

Struck 23.3 m3
Heaped 2:1 (SAE) 31.3 m3

Weight Distributions – Approximate

Front Axle – Empty 48 %
Front Axle – Loaded 34 %
Rear Axle – Empty 52 %
Rear Axle – Loaded 66 %

Transmission

Forward 1 12.9 km/h
Forward 2 17.7 km/h
Forward 3 24 km/h
Forward 4 32.2 km/h
Forward 5 43.6 km/h
Forward 6 58.7 km/h
Forward 7 79.7 km/h
Reverse 16.9 km/h

Final Drives

Differential Ratio 2.74:1
Planetary Ratio 4.80:1
Total Reduction Ratio 13.15:1

Brakes

Brake Surface – Front 1395 cm2
Brake Surface – Rear 50284 cm2
Brake Standards ISO 3450: 1996

Service Refill Capacities

Fuel Tank 530 L
Cooling System 114 L
Differentials and Final Drives 83 L
Steering Tank 34 L
Steering System (Includes Tank) 56 L
Brake / Hoist / Fan Hydraulic Tank 155 L
Brake/Hoist/Fan System (Tank) 277 L
Crankcase 60 L
Transmission / Torque Converter System (Includes Sump) 72 L
Transmission/Torque Converter Sump 53 L

Body Hoists

Pump Flow – High Idle 515 L/min
Relief Valve Setting – Raise 17255 kPa
Relief Valve Setting – Lower 3450 kPa
Body Raise Time – High Idle 9.5 Seconds
Body Lower Time – Float 12.5 Seconds
Body Power Down – High Idle 12.5 Seconds

Suspension

Effective Cylinder Stroke - Front 234 mm
Effective Cylinder Stroke - Rear 149 mm
Rear Axle Oscillation 5.4 Degrees

Sound

Sound Standards .

ROPS

ROPS/FOPS Standards .

Dimensions

Height - Top of ROPS 4093 mm
Overall Body Length 8172 mm
Inside Body Length 5549 mm
Overall Length 8740 mm
Wheelbase 3960 mm
Rear Axle to Tail 2590 mm
Ground Clearance 720 mm
Dump Clearance 495 mm
Loading Height – Empty 3499 mm
Inside Body Depth - Max 1706 mm
Overall Height – Body Raised 8357 mm
Operating Width 4751 mm
Centerline Front Tire Width 3165 mm
Engine Guard Clearance 714 mm
Outside Body Width 3952 mm
Inside Body Width 3698 mm
Front Canopy Height 4216 mm
Rear Axle Clearance 560 mm
Centerline Rear Dual Tire Width 2652 mm
Overall Tire Width 3927 mm

Steering

Steering Standards ISO 5010:1992
Steer Angle 36 Degrees

Tires

Standard Tire 21.00R33 (E4)

Power Train – Engine

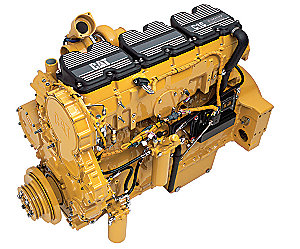

The Cat® C18 engine with ACERT™ Technology uses advanced engine technology to reduce emissions without after-treatment. The turbocharged, aftercooled 6-cylinder engine has faster response for superior performance in demanding applications.

Power Train – Transmission

The Cat seven-speed power shift transmission matched with the Cat C18 engine with ACERT Technology provides constant power and efficiency over a wide operating speed range for optimal power train performance.

Structures

The 772 features a mild-steel, box-section type frame to deliver durability and long life with low operating costs. Castings and forgings are strategically placed in high-stress areas to evenly distribute stresses and provide long fatigue life.

Operator’s Station

The 772 features an all new operator station with enhanced visibility, increased operator space and ergonomically designed controls that set new industry standards for operator comfort. All controls and gauges are positioned for optimum efficiency and total machine control.

Engine – Power Train Integration

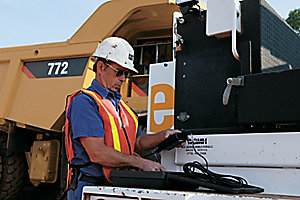

The Cat Data Link electronically combines engine, transmission, brake and operational information to optimize overall truck performance. Stored diagnostic data can be accessed via the Cat Electronic Technician (Cat ET) service tool to improve troubleshooting and reduce downtime.

Brake System

Front dry disc and rear oil-cooled, multiple disc brakes are now hydraulically controlled, reducing maintenance costs and improving operator control and modulation. They provide exceptional, fade-resistant braking and retarding for maximum performance and productivity in all haul-road conditions.

Information and Monitoring Systems

Standard on the 772, the Cat Messenger system provides real-time engine performance and operating data.

Truck Body Systems

The 772 offers two body types with six different body liner system selections to accommodate almost any type of application. These body liner systems are designed to maximize strength and durability while providing the lowest cost per ton.

Safety

Caterpillar sets the standard when it comes to safety in the design and manufacturing of heavy equipment. Safety is not an afterthought at Caterpillar, but an integral part of all machine and systems designs.

Serviceability

The 772 offers 500-hour engine service intervals – 250 hours more than the 771D. Simplified service and maintenance features combined with improved service access are designed to reduce downtime.

Customer Support

Caterpillar® dealers provide unmatched product support, anywhere in the world. With industry-best parts availability and a wide range of maintenance and service options, Cat dealers have what it takes to keep your hauling machines productive.
