16M Motor Grader

The 16M motor grader represents a revolution in operational efficiency, visibility, service ease and overall productivity, setting the new standard and building on the legacy of high quality you can trust.

Product Details


Engine Model Cat® C13 ACERT™ VHP
Bore 130 mm
Stroke 157 mm
Speed @ Rated Power 2000 RPM
Base Power (all gears) – Net 221 kW
Maximum Torque 1710 N·m
Torque Rise 50%
Displacement 12.5 L
Number of Cylinders 6
Derating Altitude 4572 m
Standard – Fan Speed – Maximum 1200 RPM
Standard – Fan Speed – Minimum 550 RPM
Standard – Ambient Capability 43 ° C
High Ambient – Fan Speed – Maximum 1450 RPM
High Ambient – Fan Speed – Minimum 550 RPM
High Ambient Capability 50 ° C


Gross Vehicle Weight – Maximum – Front Axle 11201 kg
Gross Vehicle Weight – Maximum – Rear Axle 24471 kg
Gross Vehicle Weight – Base – Front Axle 7414 kg
Gross Vehicle Weight – Base – Rear Axle 19545 kg
Gross Vehicle Weight – Maximum – Total 35672 kg
Gross Vehicle Weight – Base – Total 26959 kg


Blade Width 4.877 m
Moldboard – Height 787 mm
Moldboard – Thickness 25 mm
Arc Radius 413 mm
Throat Clearance 126 mm
Cutting Edge – Width 203 mm
Cutting Edge – Thickness 25 mm
End Bit – Width 152 mm
End Bit – Thickness 19 mm
Blade Pull – Maximum GVW 22024 kg
Blade Pull – Base GVW (AWD) 17591 kg
Blade Down Pressure – Base GVW 13224 kg
Blade Down Pressure – Maximum GVW 19979 kg


Height – Top of Cab 3703 mm
Length – Counterweight to Ripper 11672 mm
Width – Outside Front Tires 3096 mm
Length – Front Axle to Mid Tandem 6985 mm
Length – Front Tire to Rear of Machine 9963 mm
Length – Front Axle to Moldboard 3069 mm
Length – Between Tandem Axles 1841 mm
Width – Outside Rear Tires 3096 mm
Width – Tire Center Lines 2509 mm
Height – Front Axle Center 688 mm
Height to Exhaust Stack 3405 mm
Height to Top of Cylinders 3088 mm
Ground Clearance at Rear Axle 407 mm

Operating Specifications

Top Speed – Forward 53.9 km/h
Top Speed – Reverse 42.6 km/h
Turning Radius, Outside Front Tires 8.9 m
Steering Range – Left/Right 47.5°
Articulation Angle – Left/Right 20°
Forward – 1st 4.5 km/h
Forward – 2nd 6.3 km/h
Forward – 3rd 9 km/h
Forward – 4th 12.4 km/h
Forward – 5th 19.3 km/h
Forward – 6th 26.8 km/h
Forward – 7th 37 km/h
Forward – 8th 53.9 km/h
Reverse – 1st 3.6 km/h
Reverse – 2nd 6.8 km/h
Reverse – 3rd 9.8 km/h
Reverse – 4th 15.2 km/h
Reverse – 5th 29.3 km/h
Reverse – 6th 42.6 km/h

Service Refill

Fuel Capacity 492 L
Cooling System 46.5 L
Hydraulic System – Total 114 L
Hydraulic System – Tank 65 L
Engine Oil 30 L
Transmission/Differential/Final Drives 114 L
Tandem Housing (each) 121.5 L
Front Wheel Spindle Bearing Housing 0.9 L
Circle Drive Housing 8 L

Power Train

Forward/Reverse Gears 8 Fwd/6 Rev
Transmission Direct drive, power shift, countershaft
Brakes – Service Oil-actuated, oil-disc
Brakes – Service, Surface Area 49830 cm2
Brakes – Parking Spring applied, hydraulically released
Brakes – Secondary Oil-actuated, oil-disc

Hydraulic System

Circuit Type Electro-hydraulic load sensing, closed center
Pump Type Variable piston
Pump Output 280 L/min
Maximum System Pressure 24150 kPa
Reservoir Tank Capacity 65 L
Standby Pressure 3100 kPa


Circle – Diameter 1822 mm
Circle – Blade Beam Thickness 50 mm
Drawbar – Height 203 mm
Front Axle – Height to Center 688 mm
Front Axle – Wheel Lean, Left/Right 18.2°
Front Axle – Total Oscillation per Side 32°

Blade Range

Circle Centershift – Right 597 mm
Circle Centershift – Left 647 mm
Moldboard Sideshift – Right 1094 mm
Moldboard Sideshift – Left 740 mm
Maximum Blade Position Angle 65°
Blade Tip Range – Forward 40°
Blade Tip Range – Backward
Maximum Shoulder Reach Outside of Tires – Right 2587 mm
Maximum Shoulder Reach Outside of Tires – Left 2282 mm
Maximum Lift above Ground 395 mm
Maximum Depth of Cut 488 mm


Ripping Depth – Maximum 452 mm
Ripper Shank Holders 7
Shank Holder Spacing – Minimum 445 mm
Shank Holder Spacing – Maximum 500 mm
Penetration Force 10163 kg
Pryout Force 15323 kg
Machine Length Increase, Beam Raised 1610 mm


Height 648 mm
Width 236 mm
Sidewall Thickness – Inner 22 mm
Sidewall Thickness – Outer 22 mm
Drive Chain Pitch 63.5 mm
Wheel Axle Spacing 1841 mm
Tandem Oscillation – Front Up 15°
Tandem Oscillation – Front Down 25°

Operator Station

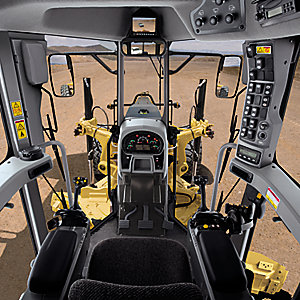

The 16M features a revolutionary cab design that provides unmatched comfort, visibility and ease of use, making the operator more confident and productive.

Advanced Joystick Controls

Two electro-hydraulic joysticks reduce hand and wrist movement as much as 78% compared to conventional lever controls for greatly enhanced operator efficiency. The intuitive pattern is easy to learn and provides the precise implement control you expect from Caterpillar.

Auxiliary Pod and Ripper Control

The optional ripper control and auxiliary control pod are ergonomically positioned to allow simple, comfortable operation for the multiple hydraulic options.

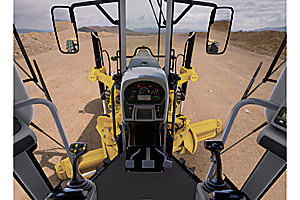

The 16M boasts excellent visibility to the work area, made possible with angled cab doors, a tapered engine enclosure and a patented sloped rear window.

Cat Comfort Series Seat

The Cat® Comfort Series suspension seat has an ergonomic high-back design, with extra thick contoured cushions and infinitely adjustable lumbar support that evenly distributes the operator’s weight. Multiple seat controls and armrests are easy to adjust for optimal support and comfort all day. The optional air suspension seat enhances ride quality for additional comfort.

In-Dash Instrument Cluster

The instrument panel, with easy-to-read, high-visibility gauges and warning lamps, keeps the operator aware of critical system information.

Cat Messenger

Cat Messenger provides real-time machine performance and diagnostic data. You can quickly view critical performance and operating information, in multiple languages, helping to maximize the life and productivity of the machine.

Controls and Switches

Reliable,long-life rocker switches are located on the right side cab post and front instrument cluster, within easy reach for the operator.

Comfort and Convenience

Caterpillar has built the most comfortable cab in the industry by replacing the control levers and steering wheel with two joystick controls, and lengthening the cab to give more leg room.Multiple adjustment capabilities for the arm rest, wrist rests and joystick pods help keep the operator comfortable throughout a long shift.

Low Interior Sound and Vibration Levels

Isolation mounts for the cab, engine and transmission, in addition to the relocation of the hydraulic pump and valves, provide significant sound and vibration reductions. The low vibration levels and quiet interior (72 dB(A)) provide a comfortable work environment.

Additional Cab Features

Additional cab features include cup holder, lighter and ashtray, coat hook, storage area, night time light, and power port. An optional rearview camera, 25 amp power converter and satellite radio are also available.

Steering and Implement Controls

The 16M sets a new standard for motor grader operational efficiency.

Ease of Operation

The revolutionary joystick controls and exceptional visibility make the 16M easier to operate without sacrificing control.The intuitive joystick control pattern allows both new and experienced operators to become productive quickly.Logical grouping of hydraulic functions in the joysticks allow any operator to easily control several functions at the same time. This allows the operator to be more productive and remain comfortable throughout the work shift.

Electronic Throttle Control

Electronic Throttle Control (ETC) provides the operator with easy, precise, and consistent throttle operation. An automatic and manual mode on a single switch offers flexibility for different applications and operator preferences.

Left Joystick Functions

The left joystick primarily controls the machine direction and speed. 1 - Steering: Lean joystick left and right2 - Articulation: Twist joystick left and right3 - Articulation Return to Center: Yellow thumb button4 - Wheel Lean: Two black thumb buttons5 - Direction: Index trigger shifts transmission to forward, neutral or reverse6 - Gear Selection: Two yellow thumb buttons upshift and downshift7 - Left moldboard lift cylinder: Push joystick to lower, pull joystick to raise · Left moldboard lift cylinder float: Pushing joystick through detent engages float

Articulation Return-to-Center

This feature automatically returns the machine to a straight frame position from any articulation angle with the touch of a single button. Return-to-Center helps improve productivity and safety by allowing the operator to focus on controlling the moldboard.

Right Joystick Functions

The right joystick primarily controls the Drawbar, Circle and Moldboard functions.1 - Right moldboard lift cylinder: Push joystick to lower, pull joystick to raise · Right moldboard lift cylinder float: Pushing joystick through detent engages float2 - Moldboard slide: Lean joystick left and right3 - Circle turn: Twist joystick left and right4 - Moldboard tip: Thumb switch fore and aft5 - Drawbar center shift: Thumb switch left and right6 - Electronic Throttle Control: Trigger switch is resume and decrement7 - Differential Lock/Unlock: Yellow button

1 - Ripper Control Pod

Infinitely variable roller switches control the rear ripper and/or front lift group (when equipped), for easy and comfortable control.

2 - Programmable Auxiliary Hydraulic Pod

Four fingertip controls and a mini joystick maximize hydraulic control flexibility, accommodating up to six hydraulic circuits. Individual functions are easily programmable through Cat ET to meet the configuration you need. The optional auxiliary hydraulic pod is provided in addition to the ripper control pod when the machine is configured with three or more auxiliary functions.

Structures, Drawbar, Circle, Moldboard

Durable structures with fast and simple DCM adjustments deliver precise material control while lowering operating costs.

Front Frame Structure

Continuous top and bottom plate construction provides consistency and strength. The flanged box section design removes welds from high stress areas, improving reliability and durability, and increasing resale values for the customer.

Rear Frame Structure

The box-sectioned hitch design and cast axle mounting helps resist torsion loads and ensure structural durability. The integrated bumper ties the rear frame together as a single, solid unit, so the frame can withstand heavy-duty applications such as ripping.

Articulation Hitch

A large tapered roller bearing at the lower pivot carries loads evenly and smoothly. This joint is sealed to prevent contamination in this critical area.A mechanical locking pin prevents frame articulation to help ensure safety when servicing or transporting the machine.

Circle Construction

Our one-piece forged steel circle is built to stand up to high stress loads and provide structural durability. The front 240° of circle teeth are hardened to reduce wear and ensure component reliability.

Drawbar Construction

The A-frame drawbar features a tubular design for high strength and optimum durability.

Aggressive Blade Angle

With a long wheelbase the operator can obtain aggressive moldboard angles so material rolls more freely along the length of the blade. This is particularly helpful when handling very dry materials or cohesive soils. Better material control gets the job done faster, requires less power and saves fuel.

Top-Adjust Drawbar Wear Strips

The patented top-adjust wear strips dramatically reduce drawbar/circle adjustment time. By removing the access plates on top of the drawbar, shims and wear strips can easily be added or replaced. This feature reduces service downtime and lowers overall machine operating costs.

Replaceable Wear Inserts

Tough, durable nylon composite wear inserts reduce rotational friction for maximum circle torque and longer component life. They are located between the drawbar and circle, and between the support shoes and circle. High load-resistant brass wearstrips are placed between the blade mounting group and moldboard. This sacrificial wear system can be replaced easily and helps keep components tight for fine grading.


The optimal curvature and large throat clearance help move material quickly and efficiently. Heat-treated moldboard rails, hardened cutting edges and end bits, and large diameter bolts assure reliability and longer service life. The moldboard side shift cylinder is positioned on the left side to eliminate snow wing interference.

Moldboard Positioning

The blade link bar design extends the possibilities for moldboard positioning, most beneficial in mid-range bank sloping and in ditch cutting and cleaning.

Shimless Moldboard Retention System

The unique shimless moldboard retention system reduces the potential for blade chatter. Vertical and horizontal adjusting screws keep the moldboard's wear strips aligned for precise blade control and dramatic reductions in service time.

Power Train

Integrated, electronically controlled systems, deliver smooth reliable performance with reduced operating costs.

Smooth Shifting Transmission

The 16M combines several key innovations to ensure smooth, powerful shifts throughout the gear range.

Electronically Controlled Shifting

The full Electronic Clutch Pressure Control (ECPC) system optimizes inching modulation and smooths shifting between all gears and directional changes. This provides outstanding control and also extends the life of the transmission by reducing stress on the gears.

Engine Over-Speed Protection

Helps protect the transmission and extend component life by preventing downshifting until a safe travel speed has been established.

Modular Rear Axle

The 16M incorporates a bolt-on modular rear axle design, which offers easy access to differential components, improves serviceability and contamination control, and lowers maintenance time and operating costs. The result is a rugged machine you can rely on for years to come.

Front Axle

The Caterpillar® sealed spindle keeps the bearings free from contaminants and lubricated in a light-weight oil (1). This durable, low-maintenance design reduces your owning and operating costs. Two tapered roller bearings (2) support the wheel spindle. The Cat “Live Spindle” design places the larger tapered roller bearing outboard where the load is greater, extending bearing life.

Gear Selection

Eight forward and six reverse gears give the operator a wide operating range. The specifically designed range of gears ensures maximum productivity in all earthmoving applications.

Programmable Autoshift

The operator can easily customize various shift parameters through Cat Messenger to match the specific application requirement. This optional feature automatically shifts the transmission at optimal points so the operator can focus on the work, improving safety, productivity and ease of operation.

Inching Pedal

Allows precise control of machine movements in any gear with low pedal effort and excellent modulation, critical in close-quarter work or finish grading.

Hydraulic Brakes

The oil bathed, multi-disc service brakes are hydraulically actuated (1), providing smooth predictable braking and lower operating costs. With brakes located at each tandem wheel, the 16M offers the largest total brake surface area in the industry (2), delivering dependable stopping power and longer brake life.

Automatic Differential Lock

This standard feature automatically unlocks the differential during a turn, and re-locks once the machine is straight. A momentary override pedal can be actuated with the operator’s left heel if necessary. This helps make the machine easier to operate and provides additional protection to lower power train components.


The 16M combines power management with ACERT™ Technology to deliver maximum power and efficiency while reducing the environmental impact.

ACERT™ Technology

ACERT Technology allows Cat engines to supply more power per unit of displacement without causing premature wear. This breakthrough technology reduces emissions during the combustion process by using advanced technology in the air and fuel systems, in conjunction with integrated electronics. ACERT Technology enhances overall engine performance while dramatically reducing exhaust emissions.


The Cat C13 engine meets specific performance requirements for 16M applications. Its superior torque and lugging capability can pull through sudden, short-term increases in loads, maintaining consistent, desirable grading speeds to get the work done faster without downshifting.

Hydraulic Demand Fan

The hydraulic demand fan automatically adjusts cooling fan speed according to engine cooling requirements. This system reduces demands on the engine, putting more horsepower to the ground and improving fuel efficiency.

Exhaust Emissions Compliant

The Cat C13 with ACERT™ Technology meets or exceeds all U.S. EPA Tier 3 and European Union Stage IIIa emissions control standards.


The 16M electro-hydraulics enable advanced machine controls with precise and predictable movements.

Advanced Electro-Hydraulic System

The 16M incorporates a state-of-the-art electro-hydraulic system. This technology is the foundation for revolutionary changes of the machine and implement controls. Advanced joystick controls provide unmatched controllability with precise, predictable hydraulic movements and the reliability you expect from Caterpillar.

Blade Float

Blade float is built into the blade lift control valves and is optional for some auxiliary hydraulic functions. The blade float feature allows the blade to move freely under its own weight. By floating both cylinders, the blade can follow the contours of the road when removing snow. Floating only one cylinder permits the toe of the blade to follow a hard surface while the operator controls the slope with the other lift cylinder.

Cat® XT™ Hose

Caterpillar hose technology allows high pressures for maximum power and reduced downtime. Intelligent routing minimizes exposure to damage. Hose clips prevent hose rubbing and excessive vibration for lower owning and operating costs.

Independent Oil Supply

Large, separate hydraulic oil supply prevents cross-contamination and provides proper oil cooling, which reduces heat build-up and extends component life.

Load Sensing Hydraulics (PPPC)

The time proven load-sensing system and the advanced Proportional Priority Pressure-Compensating (PPPC, or “triple-PC”) electro-hydraulic valves on the 16M are designed to provide superior implement control and enhanced machine performance in all applications. Continuous matching of hydraulic flow and pressure to power demands creates less heat and reduces power consumption.

Balanced Flow

Hydraulic flow is proportioned to ensure all implements operate simultaneously with little effect on the engine or implement speeds. If demand exceeds pump capacity, all cylinder velocities are reduced by the same ratio. The result is improved productivity in all applications.

Consistent and Predictable Movement

PPPC valves have different flow rates for the head (red) and rod (blue) ends of the cylinder. This ensures consistent extension and retraction speeds for each cylinder, and gives the operator a consistent and predictable response every time an implement control is moved.

Integrated Electronic Solutions

Full systems integration optimizes machine performance and availability.

“Smart Machine”

The 16M fully integrates all core systems creating a “Smart Machine.” The Cat data link shares key data among systems, optimizing machine performance while preventing potential machine damage.

Electronic Technician (Cat ET)

Cat ET is a two-way communication tool that gives service technicians easy access to stored diagnostic data and lets them configure the machine parameters through the Cat Data Link. This integrated feature reduces machine downtime and lowers operating costs.


Cat Messenger, combined with full systems integration, enhances the diagnostic capability of the 16M. Machine system errors are displayed in text as well as with fault codes, allowing service technicians and operators to quickly analyze critical data, increasing machine availability.

Machine Security System (MSS)

The optional MSS uses electronically coded keys to limit usage by specific individuals or times of the day. MSS deters theft, vandalism and unauthorized use.

Product Link

The optional Product Link system streamlines diagnostic efforts, and reduces downtime, maintenance scheduling and costs by providing a communication flow of vital machine data and location. Product Link gives automatic updates on machine parameters such as machine hours, machine condition, location, fault codes and alarms directly to your office computer.

Cat Messenger

Standard on the 16M, Cat Messenger provides real-time machine performance and diagnostic data with an easy-to-use interface. Messenger monitors all system data and alerts the operator of any faults through a digital text display that can be shown in multiple languages.

Low Battery Elevated Idle

After the 16M is at low idle for an extended period and low system voltage is detected, idle speed is raised. This ensures adequate system voltage and improves battery reliability.

Automatic Engine Deration

Protects the C13 engine by automatically lowering engine torque output and alerting the operator if critical conditions are detected.

Optional Automatic Blade Control

The Caterpillar AccuGrade System automatically controls the blade, improving operator efficiency and productivity. AccuGrade™ technology reduces the need for traditional survey stakes or grade checkers, so you can reach grade faster and in fewer passes than ever before.

AccuGrade Attachment Ready Option

The AccuGrade System is fully integrated into the machine design, making installation quick and easy. Integral hydraulic and electrical components are standard on the 16M (Grade Control Ready). The AccuGrade Attachment Ready Option provides additional mounting brackets, cab controls and electrical harnesses for easy installation of the Cross Slope, Sonic, Laser, GPS or ATS electronics kits.

Work Tools and Attachments

The Work Tools and optional attachments for the 16M expand machine versatility, utilization and performance.

Moldboard Options

A 4.9 m (16 ft) moldboard is standard on the 16M from the factory.

Ground Engaging Tools (GET)

A wide variety of Caterpillar GET is available on the 16M, including cutting edges, graderbits and end bits, all designed for maximum service life and productivity.

Variable Float

The optional variable float feature gives the operator the ability to select the amount of down force the blade has when it is in float. This allows the operator to easily follow the contour of the haul road when removing only the loose material, increasing productivity and cutting edge life.

Front Mounted Groups

A front mounted push plate/counterweight can be ordered on the 16M. A Caterpillar Work Tools front lift group can be combined with a front dozer blade for added versatility.

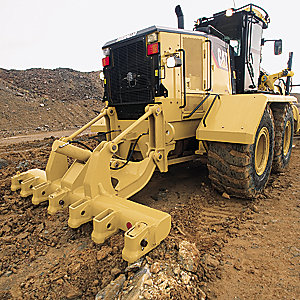

The 16M optional ripper is made to penetrate tough material fast and rip thoroughly for easier material movement with the moldboard. The ripper includes three shanks with the ability to add four more if needed.

Automatic Lubrication System

The optional Lincoln Centro-Matic® AutoLube System maintains the proper grease lubrication on working surfaces, significantly extending component life. Contaminants are purged from open pins and bushings to help prevent dirt from damaging critical components.


Safety is an integral part of all machine and system designs.

Steel Tandem Walkways

Perforated raised steel walkways cover the tandems. This provides a sturdy platform for standing and walking, and additional protection for the brake lines.

Operator Presence System

The Operator Presence System keeps the parking brake engaged and hydraulic implements disabled until the operator is seated and the machine is ready for safe operation.

Secondary Steering System

The standard secondary steering system automatically engages an electric hydraulic pump in case of a drop in steering pressure, allowing the operator to steer the machine to a stop.

Speed Sensitive Steering

The steering software automatically provides an infinitely variable ratio between the joystick and the steer tires, resulting in less sensitive steering as the ground speed increases.

Low Sound and Vibration Levels

Isolation mounts for the cab, engine and transmission maximize operator comfort and help to minimize sound and vibration. These modifications provide a quieter and more comfortable working environment, optimizing operator focus.

Hydraulic Lockout

A simple switch located in the cab disables all implement functions while still providing machine steering control. This safety feature is especially useful while the machine is roading.

Brake Systems

Brakes are located at each tandem wheel to eliminate braking loads on the power train. In addition, the brake systems are redundant and utilize accumulators to enable stopping in case of machine failure, further increasing operational safety.

Drop-Down Rear Lights

Optional drop-down lights fold out from the rear of the machine. This creates a wider, lower profile to be better aligned with passenger cars.

Window-Cleaning Platform

The optional window-cleaning platform provides easy access to all windows.

Rearview Camera

Visibility is further enhanced with an optional Work Area Vision System (WAVS) through a 178 mm (7 in) LCD color monitor in the cab. Developed specifically for rugged applications, this durable camera improves productivity and increases operator awareness of surroundings.

Circle Drive Slip Clutch

This standard feature protects the drawbar, circle and moldboard from shock loads when the blade encounters an immovable object. It also reduces the possibility of abrupt directional changes in poor traction conditions, protecting the machine, operator and surroundings.

Blade Lift Accumulators

This standard feature uses accumulators to help absorb impact loads to the moldboard by allowing vertical blade travel. Blade lift accumulators reduce unnecessary wear and help to avoid unintended machine movement for increased operator safety.

Engine Shutoff Switch

An engine shutoff switch is located at ground level on the left rear of the machine, allowing anyone nearby to shut it down in case of an emergency.

Electrical Disconnect Switch

A battery disconnect switch, located inside the left rear enclosure, provides ground-level lockout of the electrical system to prevent inadvertent starting of the machine.

Rear Fenders

To help reduce objects flying from the tires, as well as build-up of mud, snow or debris, optional rear fenders can be added.

Additional Safety Features

The 16M has many additional standard safety features, including laminated glass on the front windows and doors, back-uplights and sounding alarm, black glare-reducing paint on the front frame and engine enclosure, lockable doors, and conveniently located grab rails for added safety.

Serviceability and Customer Support

Simplified service, world-class product support and Cat® dealer-trained experts keep your fleet up and running, maximizing your equipment investment.

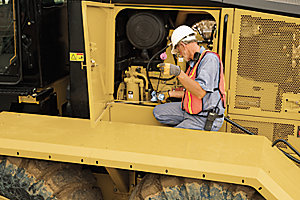

Grouped Service Points

The 16M groups daily service points in the left side service center to help ensure proper maintenance and inspection routines.

Extended Service Intervals

The 16M extended service intervals, such as 500-hour engine oil changes and 4000-hour hydraulic oil changes, reduce machine service time and increase availability.

Ecology Drains

Conveniently located ecology drains shorten service times and help keep the environment safe by preventing spills.

Diagnostics and Monitoring

The 16M integrates Cat Messenger, Cat Electronic Technician and S•O•SSM Sampling ports for easy monitoring and fast troubleshooting, keeping your machine up and running.

Machine Selection

Make detailed comparisons of the machines under consideration before purchase. Cat dealers help you size the right machine for your operations and can estimate component life, preventative maintenance cost, and the true cost of production.


Consider the financing options available, as well as day-to-day operating costs. Look at dealer services that can be included in the cost of the machine to yield lower equipment owning and operating costs over the long run.

Grouped Component Rebuilds

Rebuilds take your machine out of service. Caterpillar designs components in groups to be rebuilt at the same time, maximizing uptime.

Maintenance Services

Repair option programs guarantee the cost of repairs up front. Diagnostics programs such as Scheduled Oil Sampling, S•O•SSM analysis, Coolant Sampling and Technical Analysis help avoid unscheduled repairs.

Product Support

You will find nearly all parts at our dealer parts counter. Cat dealers use a world-wide computer network to track in-stock parts to minimize machine down time. Save money with genuine Cat Reman parts. You receive the same warranty and reliability as new products at substantial cost savings.
    •  Accelerator
    •  Air conditioner with heat
    •  Arm and wrist rest, adjustable
    •  Articulation, automatic Return-to-Center
    •  Ashtray and lighter
    •  Cat Messenger, operator information system
    •  Centershift pin indicator
    •  Coat hook
    •  Cup holder
    •  Display, digital speed and gear
    •  Doors, left and right side with wiper
    •  Gauge cluster - articulation, engine coolant temp,
    •  Gauges, machine level
    •  Hour meter, digital
    •  Joystick hydraulic controls for
    •  Ladders, cab, left and right side
    •  Lights, left and right side lights
    •  Lights, night time cab
    •  Meter, hour, digital
    •  Mirror, inside rearview, wide angle
    •  Power port, 12V
    •  Radio Ready, Entertainment
    •  ROPS cab, sound suppressed, less than 75 dB
    •  Seat, cloth-covered, comfort air suspension
    •  Seat belt, retractable 76 mm (3 in)
    •  Storage area for cooler/lunchbox
    •  Throttle control, electronic
    •  Windows, laminated glass:
    •  Air cleaner, dual stage, dry type, automatic dust ejector,
    •  Air-to-air after cooler (ATAAC)
    •  Belt, serpentine, automatic tensioner
    •  Brakes, four-wheel hydraulic
    •  Differential, Auto lock / unlock
    •  Drain, engine oil, high speed
    •  Electronic over speed protection
    •  Engine, Cat® C13 with ACERT™ Technology
    •  Engine, Compression brake
    •  Ether starting aid
    •  Fuel tank, fast fill, ground level
    •  Fuel-water separator
    •  Hydraulic demand fan
    •  Muffler, under hood
    •  Parking brake - multi disc, sealed, oil-cooled
    •  Priming pump, fuel
    •  Rear axle, modular
    •  Sediment drain, fuel tank
    •  Transmission, 8F / 6R, power shift, direct drive
    •  VHP (Variable Horsepower)
    •  Alarm, back up
    •  Alternator, 150 ampere, sealed
    •  Batteries, maintenance free, heavy duty, 1400 CCA
    •  Breaker panel, ground accessible
    •  Electrical system, 24V
    •  Grade Control Ready - Cab harness, software,
    •  Lights: reversing, roof-mounted roading, stop and tail (LED), work front
    •  Product Link Ready
    •  Starter, electric, heavy duty
  • Alarm, back up
    • Alternator, 150 ampere, sealed
      • Batteries, maintenance free, heavy duty, 1400 CCA
        • Breaker panel, ground accessible
          • Electrical system, 24V
            • Grade Control Ready - Cab harness, software,
              • Lights: reversing, roof-mounted roading, stop and tail (LED), work front
                • Product Link Ready
                  • Starter, electric, heavy duty
                    • OTHER STANDARD EQUIPMENT
                      •  Accumulators, blade lift
                      •  Brake accumulators, dual certified
                      •  Bumper, rear, integrated with hitch
                      •  CD ROM Parts Book
                      •  Clutch, circle drive slip
                      •  Cutting edges
                      •  Doors (4), engine compartment, locking
                      •  Drawbar - 6 shoe with replaceable wear strips
                      •  Endbits, 19 mm (3/4 in) DH-2 steel
                      •  Extended Life Coolant to -35° C (-30° F)
                      •  Fluid check, ground level
                      •  Frame, articulated, with safety lock
                      •  Guards, service center debris
                      •  Ground level engine shutdown
                      •  Hammer (emergency exit)
                      •  Horn, electric
                      •  Hydraulics, base 8 implement controls
                      •  Hydraulics, load-sensing
                      •  Lockout, hydraulic implement for roading
                      •  Moldboard
                      •  Paint, glare reducing - top of front frame, rear enclosure
                      •  Radiator, cleanout access
                      •  Secondary steering
                      •  Serviceability, LH side
                      •  SOSSM ports: engine, hydraulic, transmission, coolant, fuel
                      •  Tandem walkway/guards
                      •  Tool box
                      •  Tow hitch
                    • Accumulators, blade lift
                      • Brake accumulators, dual certified
                        • Bumper, rear, integrated with hitch
                          • CD ROM Parts Book
                            • Clutch, circle drive slip
                              • Cutting edges
                                • Doors (4), engine compartment, locking
                                  • Drawbar - 6 shoe with replaceable wear strips
                                    • Endbits, 19 mm (3/4 in) DH-2 steel
                                      • Extended Life Coolant to -35° C (-30° F)
                                        • Fluid check, ground level
                                          • Frame, articulated, with safety lock
                                            • Guards, service center debris
                                              • Ground level engine shutdown
                                                • Hammer (emergency exit)
                                                  • Horn, electric
                                                    • Hydraulics, base 8 implement controls
                                                      • Hydraulics, load-sensing
                                                        • Lockout, hydraulic implement for roading
                                                          • Moldboard
                                                            • Paint, glare reducing - top of front frame, rear enclosure
                                                              • Radiator, cleanout access
                                                                • Secondary steering
                                                                  • Serviceability, LH side
                                                                    • SOSSM ports: engine, hydraulic, transmission, coolant, fuel
                                                                      • Tandem walkway/guards
                                                                        • Tool box
                                                                          • Tow hitch
                                                                            • TIRES, RIMS, & WHEELS
                                                                              •  Partial allowance for tires and multi-piece rims
                                                                            • ELECTRICAL
                                                                              •  Converter, communications (CB) 5 1
                                                                              •  Lights:
                                                                            • GUARDS
                                                                              •  Covers, screen 5 10
                                                                              •  Debris 11 24
                                                                              •  Sound 11.3 25
                                                                              •  Transmission 159 350
                                                                            • Covers, screen 5 10
                                                                              • Debris 11 24
                                                                                • Sound 11.3 25
                                                                                  • Transmission 159 350
                                                                                    • OPERATOR ENVIRONMENT
                                                                                      •  Fan, defroster, rear window 2 4
                                                                                      •  Horn, air 7 15
                                                                                      •  Mirrors, outside:
                                                                                      •  Shade, sun 2 5
                                                                                    • POWER TRAIN
                                                                                      •  Coolant:
                                                                                      •  Engine, variable horsepower plus (VHP plus)
                                                                                      •  Transmission, autoshift 2 5
                                                                                    • OTHER ATTACHMENTS
                                                                                      •  AccuGrade® ARO 18 40
                                                                                      •  AutoLube, Lincoln
                                                                                      •  Camera, rearview 9 20
                                                                                      •  Fenders, rear 514 1150
                                                                                      •  Float, variable 9 20
                                                                                      •  Heater, engine coolant:
                                                                                      •  Hydraulic arrangements with one or more additional
                                                                                      •  Platform, access, windows 159 350
                                                                                      •  Security system 2 5
                                                                                      •  Sound suppression 5 11
                                                                                    • WORK TOOLS / G.E.T.
                                                                                      •  Cutting edges, curved 68 150
                                                                                      •  Push plate, counterweight
                                                                                      •  Ripper, rear 1950 4298
                                                                                      •  Ripper, mounting 39 85
                                                                                      •  Ripper tooth 60 132
                                                                                    • MACHINE ARRANGEMENTS
                                                                                      •  Canadian Arrangement
                                                                                      •  European Arrangement
                                                                                      •  Snow Arrangement
                                                                                    • Note: Not all attachments are available in all regions.
                                                                                      Built for it
