Medium Excavators(Non Current)

Caterpillar serves all regions of the world so we build many different configurations of hydraulic excavators. Your Cat® dealer has exact machine specifications available in your area to help you choose what will best meet your needs.

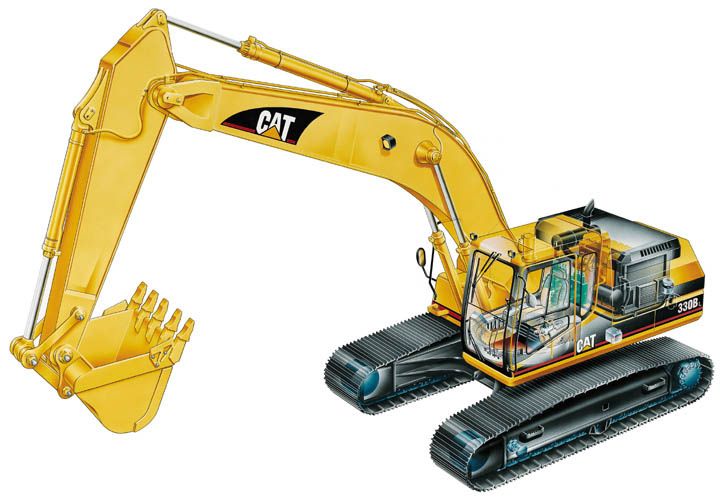

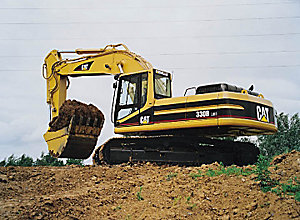

330B L Hydraulic Excavator

Improved performance and rugged durability combine to maximize productivity. Outstanding controllability, excellent stick and bucket forces, impressive lift capacity, low fuel consumption, simplified service and a more comfortable operator station increase your productivity and lower your operating costs.

  • Specification Summary

  • Engine Model Cat 3306TA
  • Net Flywheel Power 165 kW
  • Operating Weight - Std. Undercarriage 33926 kg
  • Maximum Drawbar Pull 268 kN

Product Details

Engine

Engine Model Cat 3306TA
Net Flywheel Power 165 kW
Net Power - ISO 9249 165 kW
Bore 121 mm
Stroke 152 mm
Displacement 10.5 L
Gross Power 176 kW
Net Power - EEC 80/1269 165 kW
Net Power - SAE J1349 165 kW

Weights

Operating Weight - Std. Undercarriage 33926 kg

Drive

Maximum Drawbar Pull 268 kN
Maximum Travel Speed 4.6 km/h

Hydraulic System

Main Implement System - Maximum Flow (2x) 240 L/min
Max. Pressure - Equipment 34300 kPa
Max. Pressure - Travel 34300 kPa
Max. Pressure - Swing 29900 kPa
Pilot System - Maximum Flow 37 L/min
Pilot System - Maximum Pressure 4100 kPa
Boom Cylinder - Bore 150 mm
Boom Cylinder - Stroke 1440 mm

Service Refill Capacities

Fuel Tank Capacity 560 L
Cooling System 45 L
Engine Oil 30 L
Swing Drive 15 L
Final Drive (each) 15 L
Hydraulic System (including tank) 400 L

Swing Mechanism

Swing Speed 9 RPM
Swing Torque 106 kN·m

Track

Standard w/Long Undercarriage - Triple Grouser 850 mm
Optional 750 mm
Optional 700 mm

Operator Station

Excellent viewing area

Greater control convenience

Maestro Electronic Control System panel

Climate control

Joysticks

Dial throttle

Travel controls

Travel pedal

Activation control lever

Suspension seat

Maestro Electronic Control System

Electronic Engine Underspeed Control

Operator control panel

Power Mode Selector

Automatic Engine Speed Control

Boom Priority Mode

Swing Priority Mode

Fine Control Mode

User Mode

Machine monitoring system

Service Level Mode

Diagnostic functions

Hydraulics

Control responsiveness

Hydraulic relief pressure

Hydraulic cross-sensing system

Boom regeneration circuit

Fine swing control

Pump flow

Auxiliary hydraulic valve

Hydraulic flow control system

Hydraulic cylinder snubbers

XT hose and reusable couplings

Hydraulic oil

Scheduled Oil Sampling

Remanufactured components

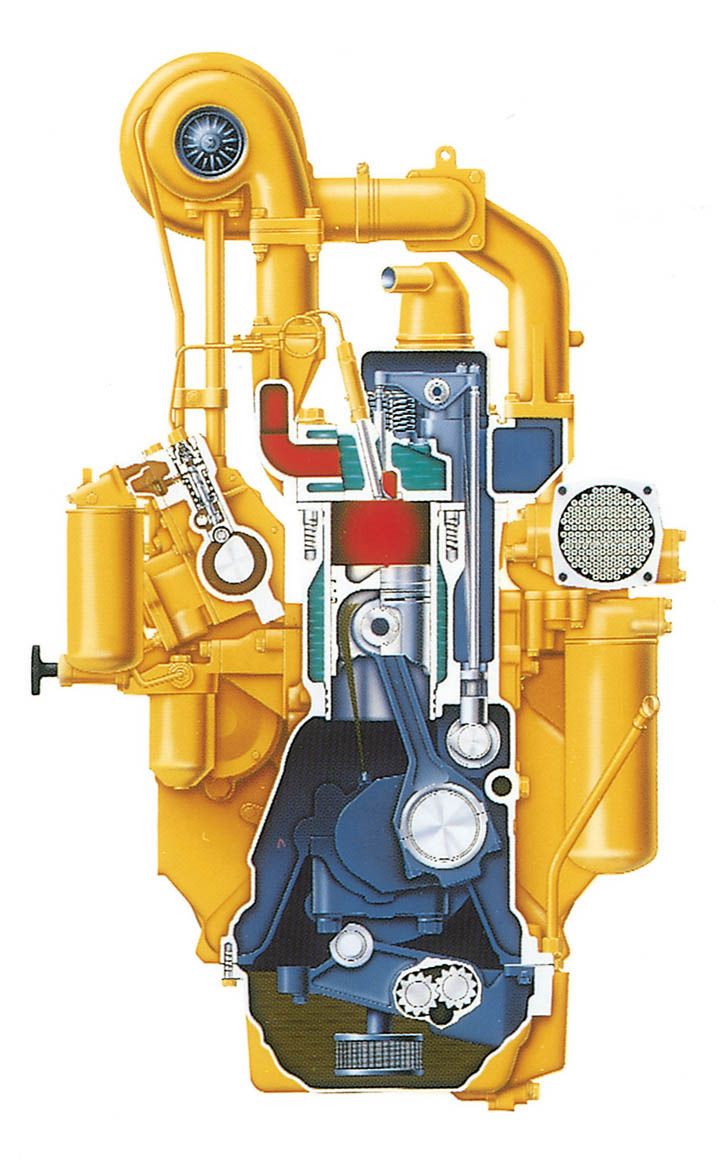

Engine

Automatic Engine Control

High displacement

Turbocharged and aftercooled

One-piece piston design

Worldwide emissions standards

Air intake heating

Fuel tank capacity

Caterpillar oils

Factory remanufactured parts

Easy maintenance

Structures

Advanced carbody design

Robotic welded track roller frame

Rugged main frame

Booms and sticks

Booms, Sticks and Attachments

Select the right combination for the job

Booms and sticks

2 booms and 6 sticks

Reach boom (R) 6.5 m

Mass Excavation (ME) boom 6.18 m

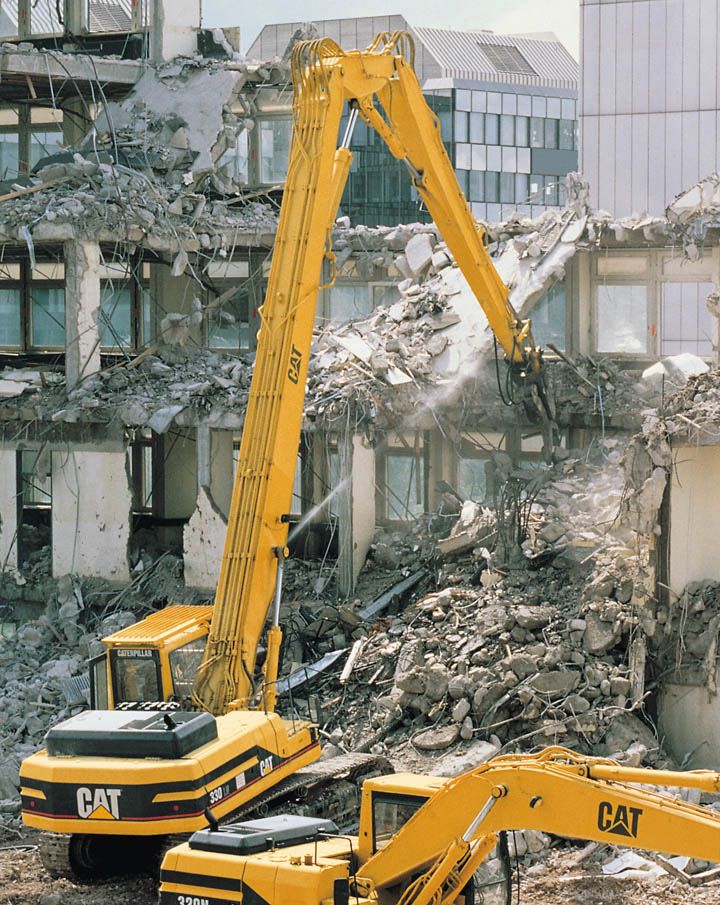

Heavy-duty Arrangements

Additional attachments

Work tools

Engine

Automatic Engine Control

High displacement

Turbocharged and aftercooled

One-piece piston design

Worldwide emissions standards

Air intake heating

Fuel tank capacity

Caterpillar oils

Factory remanufactured parts

Easy maintenance

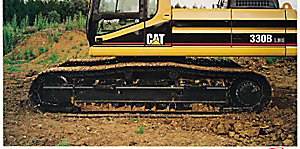

Undercarriage

Precision robotic welding

Heavy-duty, X-shaped chassis design

Strutted track links

Smooth autoshifting

Long (L and LN) undercarriage

Track roller frame top plate

Idler guards

Bolt-on Step

Custom Track Service

Hydraulics

Control responsiveness

Hydraulic relief pressure

Hydraulic cross-sensing system

Boom regeneration circuit

Fine swing control

Pump flow

Auxiliary hydraulic valve

Hydraulic flow control system

Hydraulic cylinder snubbers

XT hose and reusable couplings

Hydraulic oil

Scheduled Oil Sampling

Remanufactured components

Buckets and Teeth

Utility Light (LU)

Utility Standard (SU)

Excavation/Trenching (X)

Extreme Excavation/Trenching (EX)

Rock (Classical/Standard)

Rock Loading (RL)

Block Handling (BH)

Skeleton Light (SL)

Ditch Cleaning (DC)

Trapezoidal (T)

Quick Coupler

Undercarriage

Precision robotic welding

Heavy-duty, X-shaped chassis design

Strutted track links

Smooth autoshifting

Long (L and LN) undercarriage

Track roller frame top plate

Idler guards

Bolt-on Step

Custom Track Service

Smart Boom

More productive

More comfort

More efficient

Structures

Advanced carbody design

Robotic welded track roller frame

Rugged main frame

Booms and sticks

Serviceability

Fast, easy maintenance

Ground level service points

Filters and filter locations

Design and layout

Water separator

Remote greasing block

Maestro Electronic Power Unit Control

Environmentally improved features

Booms, Sticks and Attachments

Select the right combination for the job

Booms and sticks

2 booms and 6 sticks

Reach boom (R) 6.5 m

Mass Excavation (ME) boom 6.18 m

Heavy-duty Arrangements

Additional attachments

Work tools

Customer Service

Equipment Management Services

Maintenance Services

Predictive Services

Reconditioning Services

Availability of Cat Parts
